Hood Replacement

Courtesy of GENERAL MOTORS COMPANY

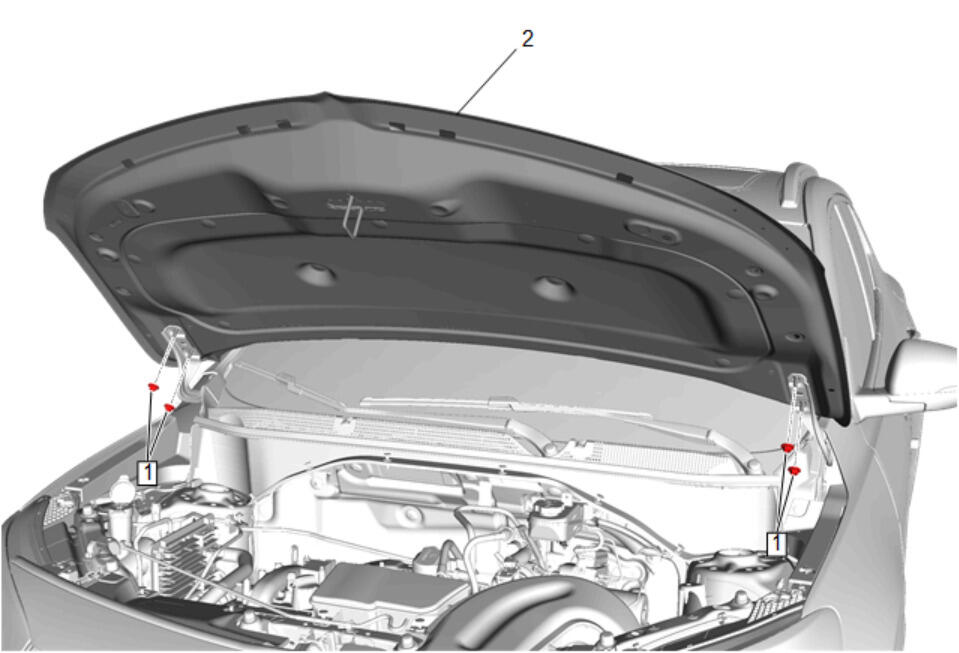

Callout	Component Name
1	Hood Hinge Nut [4x] WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Fastener Caution Procedure Mark the position of the hinges with a grease pencil. Tighten 22 N.m (16 lb ft)
2	Hood Procedure With the aid of an assistant, remove the hood. Transfer components as necessary. Adjust hood as needed. Hood Adjustment

Callout

Component Name

Hood Hinge Nut [4x]

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION:

Fastener Caution

Procedure
Mark the position of the hinges with a grease pencil.
Tighten
22 N.m (16 lb ft)

Hood

Procedure

With the aid of an assistant, remove the hood.
Transfer components as necessary.
Adjust hood as needed. Hood Adjustment
