Hood Primary and Secondary Latch Replacement

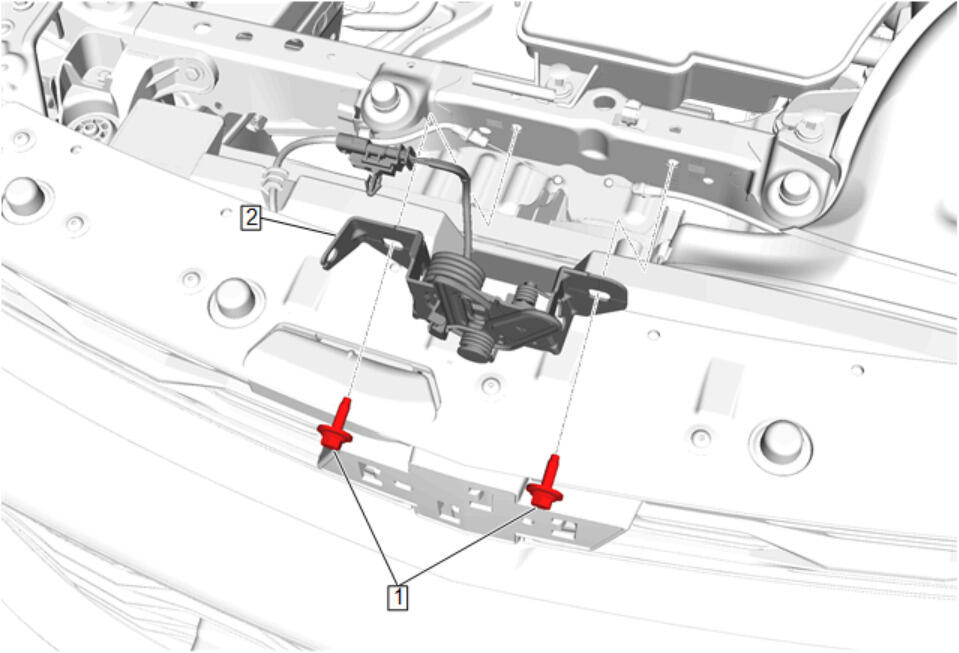

GM5319535Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Primary and Secondary Latch Bolt [2x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Hood Primary and Secondary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the electrical connector.
