Rear Side Door Weatherstrip Replacement - Door Side

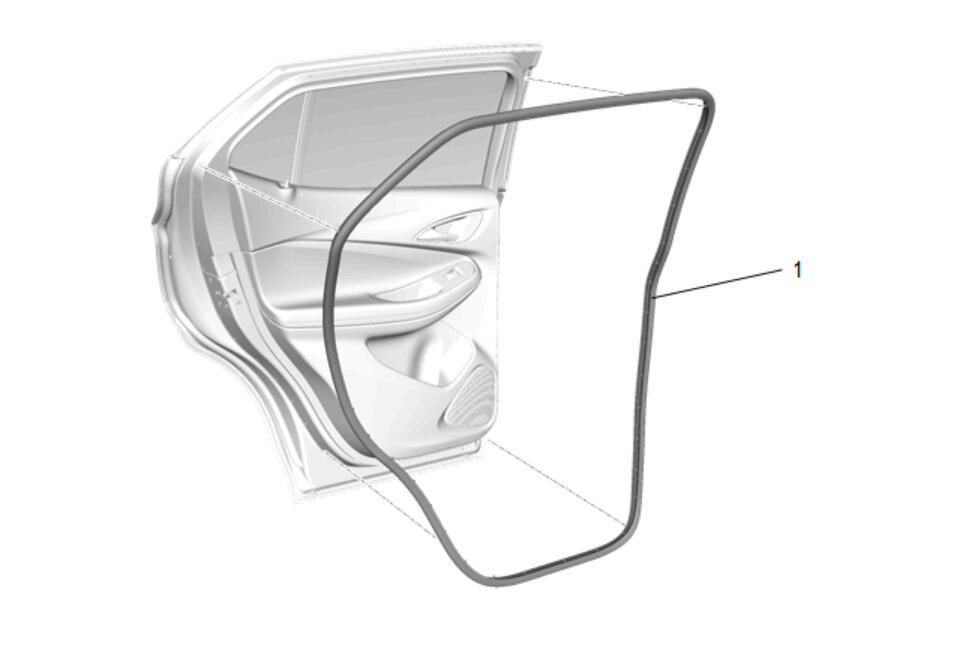

GM5220219Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Check Link Body Side Bolt - Remove - Rear Side Door Check Link Replacement
1 Rear Side Door Weatherstrip - Door Side

Procedure

  1. Using a suitable tool, remove the rear side door weatherstrip retainers.
  2. Ensure that the weatherstrip is fully seated.
