Rear Side Door Upper Hinge and Lower Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

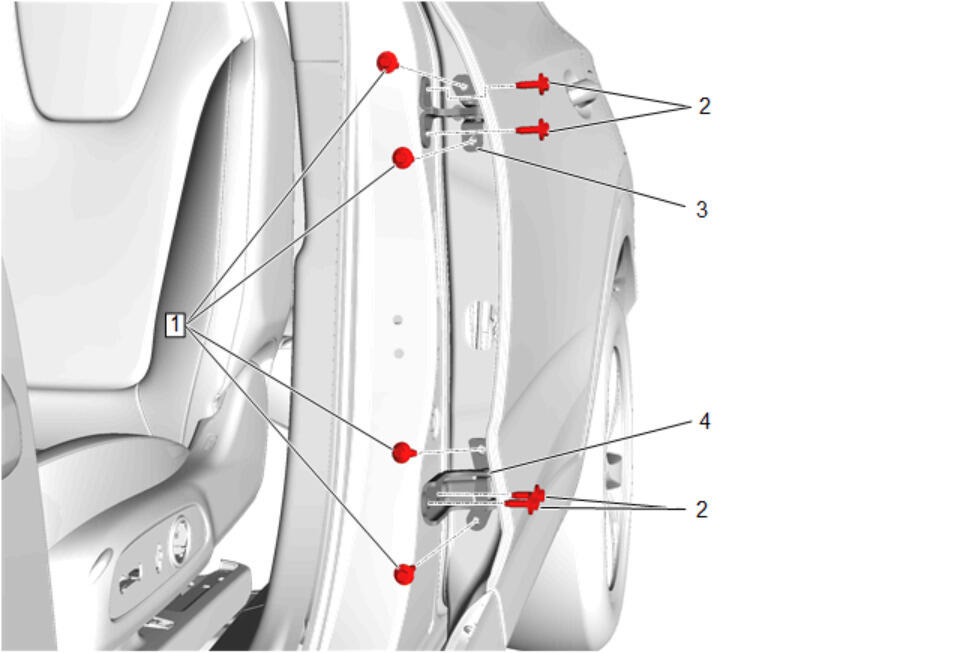

Callout	Component Name
Preliminary Procedures Leave the rear side door closed. And open the front side door. Mark the position of the hinges with a grease pencil.
1	Rear Side Door Hinge Bolt - Door Side [4x] CAUTION: Fastener Caution Tighten 25 N.m (18 lb ft)
2	Rear Side Door Hinge Bolt - Body Side [4x] Tighten 32 N.m (24 lb ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge Procedure Replace one hinge at a time. Adjust the rear side door as needed. Rear Side Door Adjustment
