Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

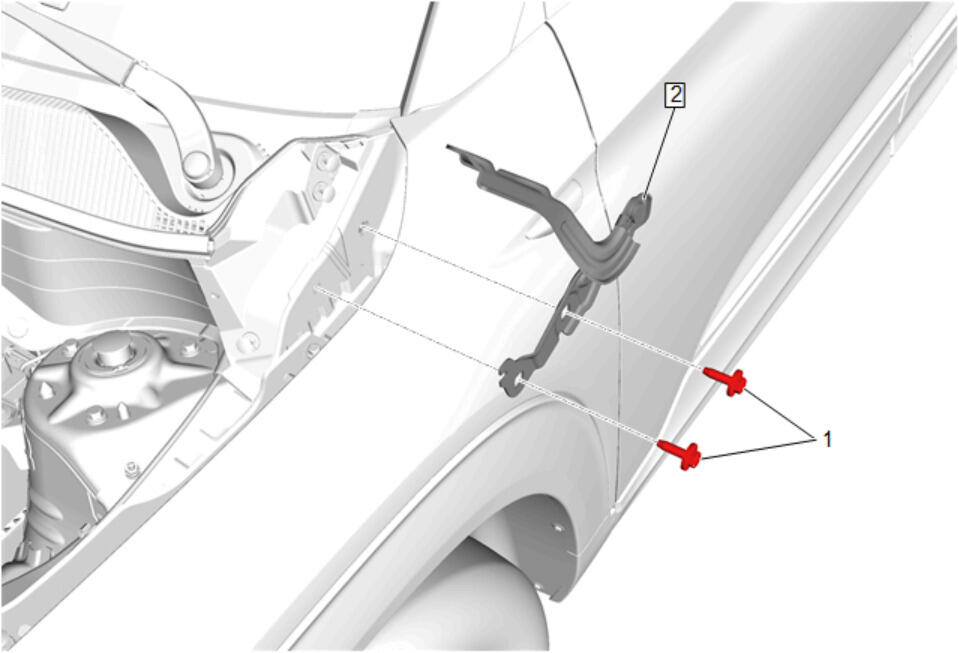

Callout	Component Name
Preliminary Procedures Hood Replacement Front Compartment Side Sight Shield Replacement Mark the position of the hinges with a grease pencil.
1	Hood Hinge Bolt [2x] CAUTION: Fastener Caution Tighten 22 N.m (16 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedures

Hood Hinge Bolt [2x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Hinge
