Preliminary Procedure

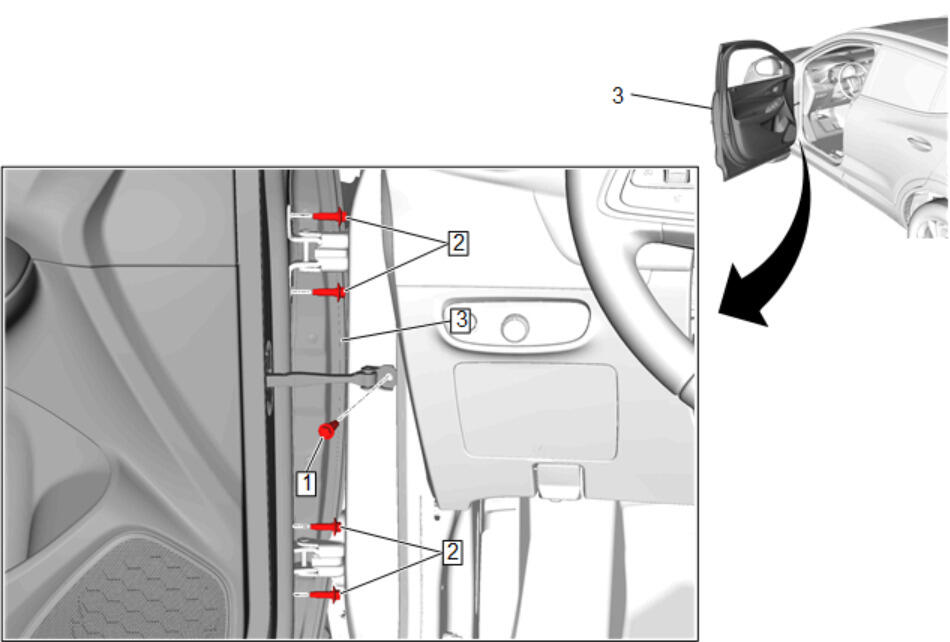

Mark the position of the hinges with a grease pencil. |
| 1 |
Front Side Door Check Link Bolt
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
Tighten
22 N.m (16 lb ft) |
| 2 |
Front Side Door Hinge Bolt - Door Side [4x]
Tighten
25 N.m (18 lb ft) |
| 3 |
Front Side Door Procedure
- Front Side Door Wiring Harness Electrical Connector - Disconnect
- With the aid of an assistant, remove the door.
- Transfer components as necessary.
- Adjust the front side door, if needed. Front Side Door Adjustment
|
