Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad (1) - Install

Courtesy of GENERAL MOTORS COMPANY

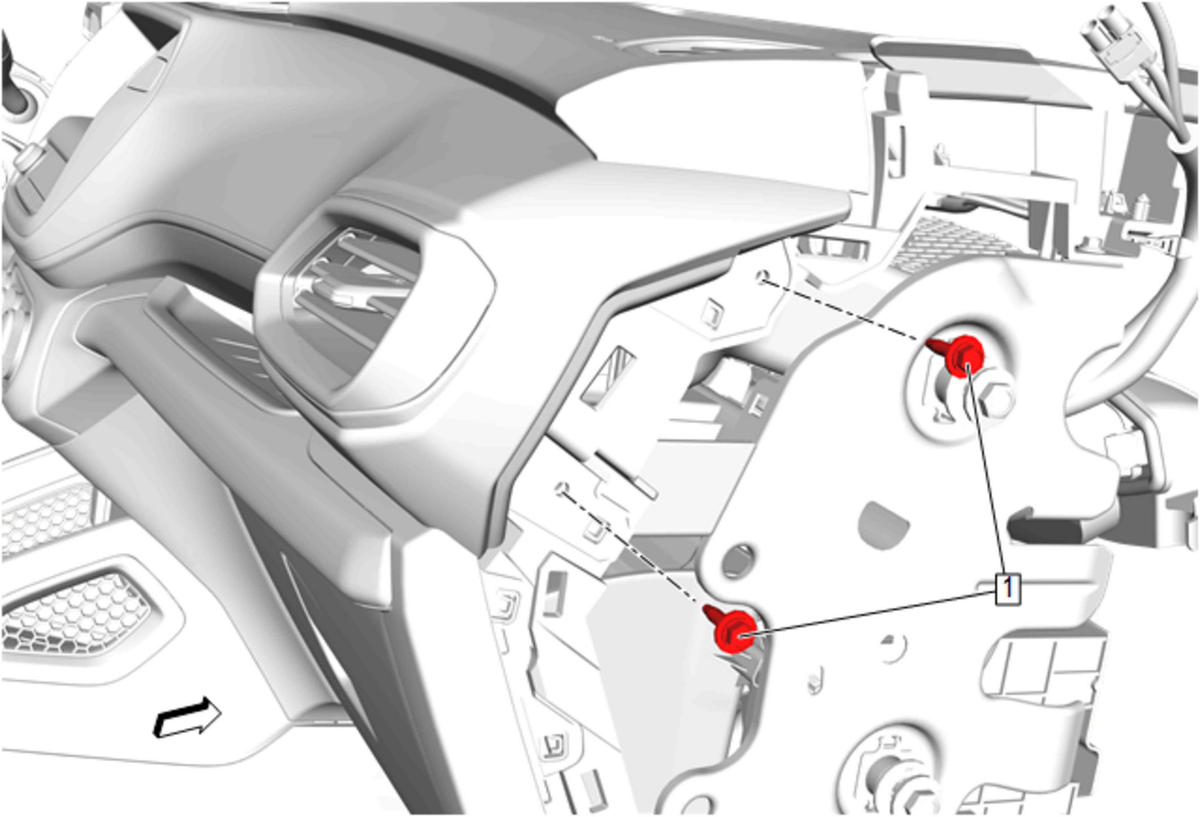

Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate (1) - Install - Instrument Panel Trim Plate Replacement (8 Inch Display with IOR, IOS) , or Instrument Panel Trim Plate Replacement (7 Inch Display with IOR)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet (1) - Install - Instrument Panel Center Air Outlet Replacement

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Plate Applique (1) - Install - Instrument Panel Lower Center Trim Plate Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

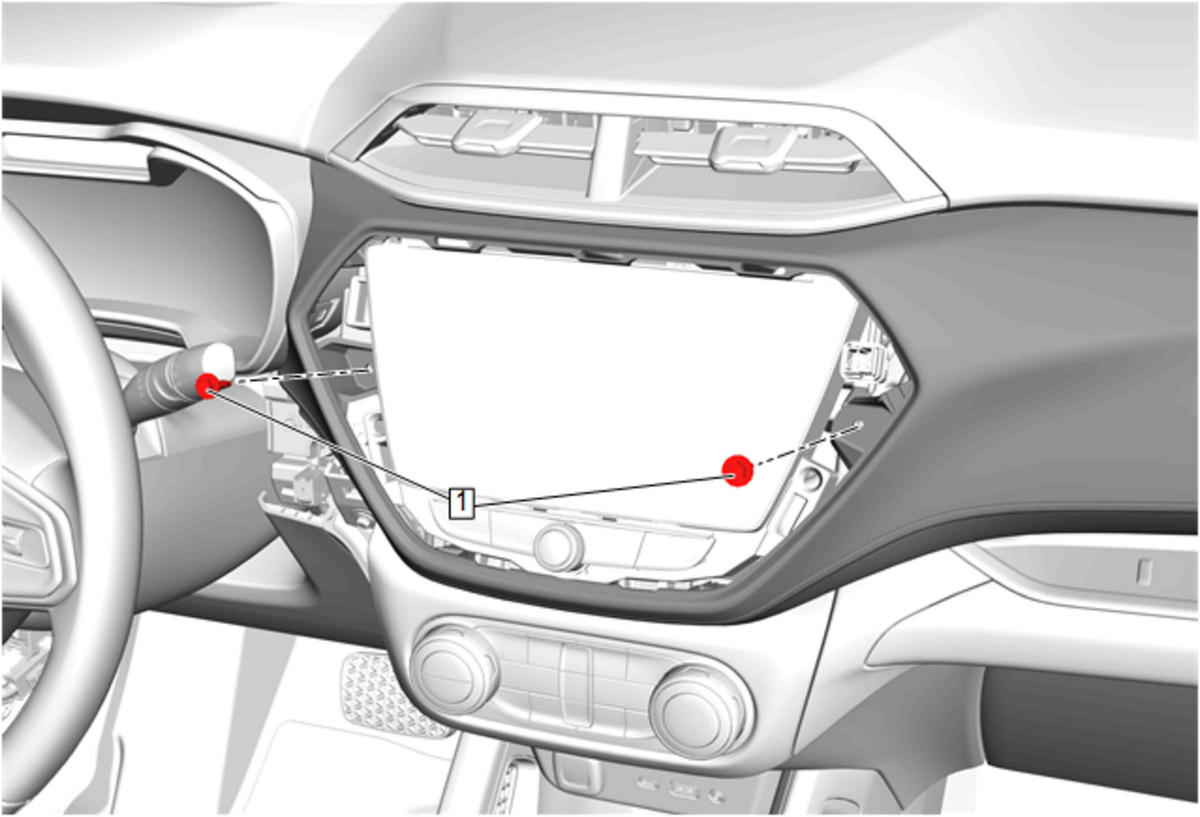

Instrument Panel Trim Pad Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Right Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Upper Trim Cover (1) - Install - Instrument Panel Steering Column Upper Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Switch Trim Plate (2) - Install - Instrument Panel Trim Plate Replacement (8 Inch Display with IOR, IOS) , or Instrument Panel Trim Plate Replacement (7 Inch Display with IOR)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Left Side
