Removal Procedure

  1. GM5220211Courtesy of GENERAL MOTORS COMPANY

    Front Side Door (3) - Both Sides - Remove - Front Side Door Replacement

  2. GM5363118Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Assembly (1) - Remove - Instrument Panel Assembly Replacement (8 Inch Display with IOR, IOS) , or Instrument Panel Assembly Replacement (7 Inch Display with IOR)

  3. Floor Front Air Outlet Duct - Left Side (2) - Remove - Floor Front Air Outlet Duct Replacement - Left Side
  4. GM5361413Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Remove - Instrument Panel Lower Airbag Replacement - Driver Side

  5. GM5225124Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove - Brake and Accelerator Pedal Assembly Replacement

  6. GM5248964Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module (2) - Remove - Windshield Wiper System Module Replacement

  7. GM5251510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove

  8. GM5251570Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove [2x]

  9. GM5251571Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove [2x]

  10. GM5251584Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Remove

  11. GM5245740Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (2) - Remove - Heater and Air Conditioning Remote Control Replacement

  12. GM5209005Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Sill Garnish Molding (2) - Left Side - Remove - Front Side Door Sill Garnish Molding Replacement

  13. GM5421856Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Disconnect [2x]

  14. Retainer (2) - Remove [2x]
  15. Instrument Panel Wiring Harness Ground Nut (3) - Remove [2x]
  16. GM5421863Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Remove

  17. Retainer (2) - Remove
  18. Wiring Harness Connector (3) - Disconnect
  19. GM5253707Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Disconnect [3x]

  20. Instrument Panel Wiring Harness Ground Nut (2) - Remove
  21. Retainer (3) - Remove
  22. GM5421879Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Remove

  23. Wiring Harness Connector (2) - Disconnect [2x]
  24. Retainer (3) - Remove [2x]
  25. Instrument Panel Wiring Harness Ground Nut (4) - Remove [2x]
  26. GM5421870Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Remove [2x]

  27. Wiring Harness Connector (2) - Disconnect [4x]
  28. GM5421872Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Remove [3x]

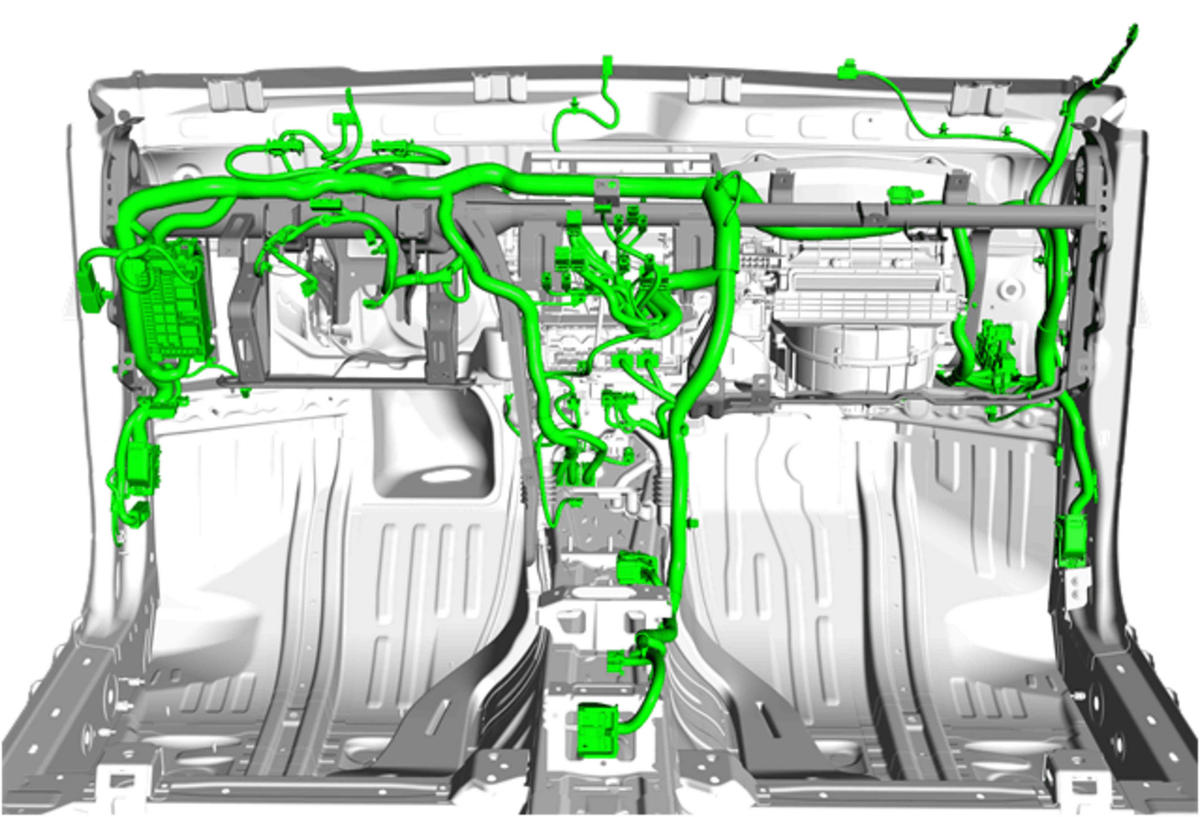

  29. GM5363113Courtesy of GENERAL MOTORS COMPANY

    Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.

  30. GM5253710Courtesy of GENERAL MOTORS COMPANY

    Support the HVAC module in order to prevent damage.

  31. With the aid of an assistant, remove the instrument panel assembly from the vehicle. (1)

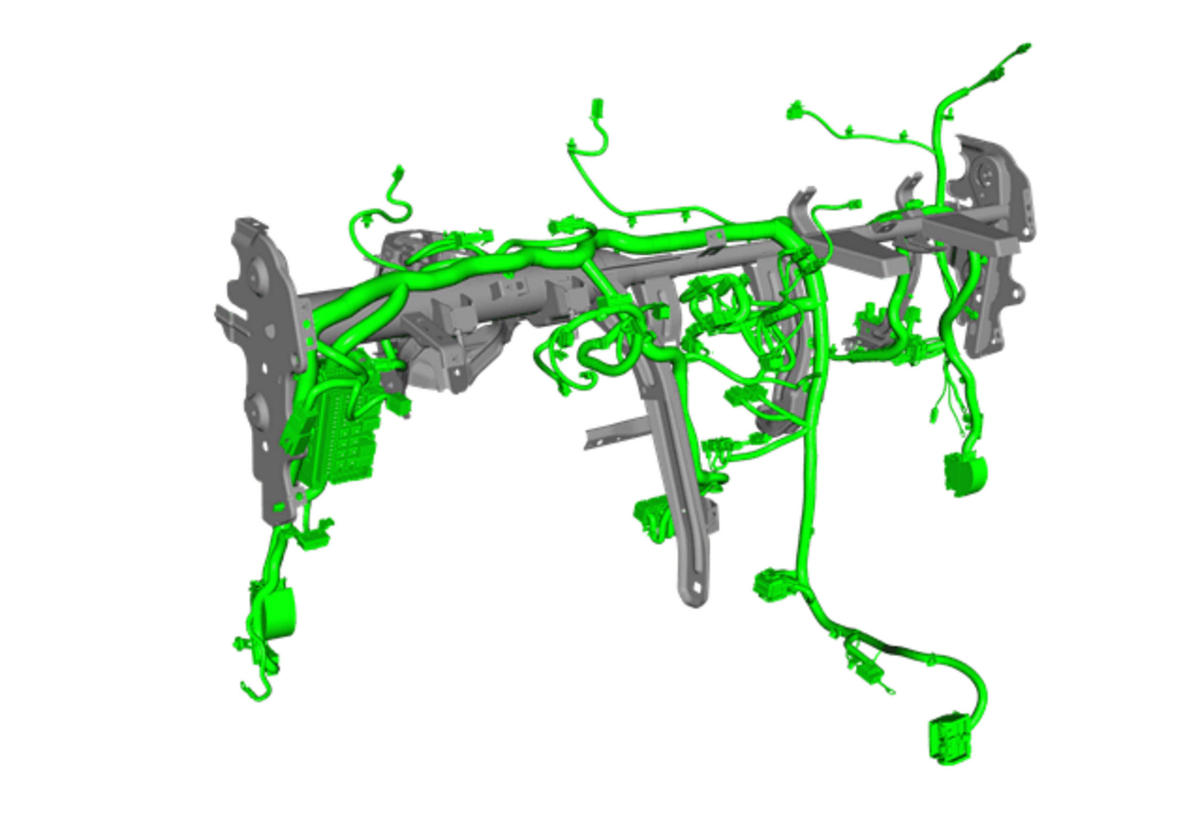

  32. GM5253718Courtesy of GENERAL MOTORS COMPANY

    Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.

  33. GM5253725Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness (2) @ Instrument Panel Tie Bar (1) (1) - Remove

  34. Transfer components as necessary.
