Installation Procedure

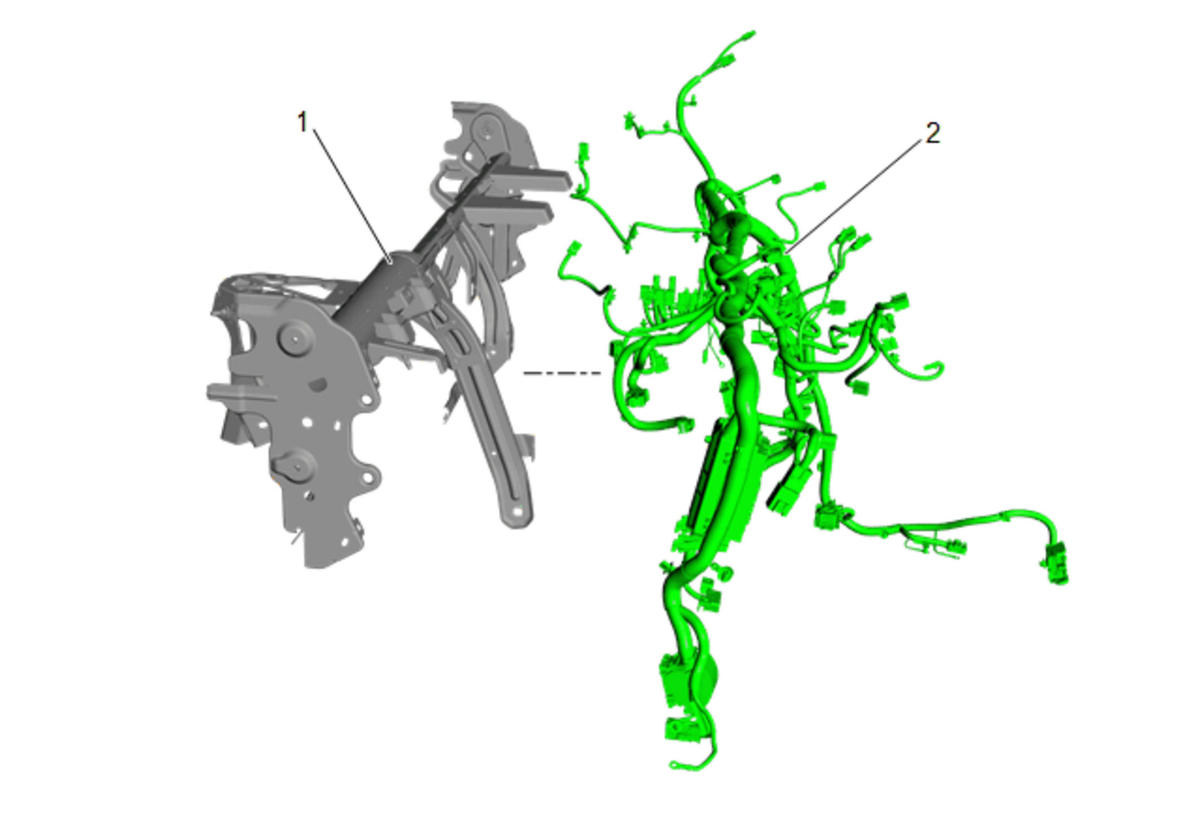

  1. GM5253725Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness (2) @ Instrument Panel Tie Bar (1) (1) - Install

  2. Install the instrument panel wiring harness to the position noted in the removal procedure.

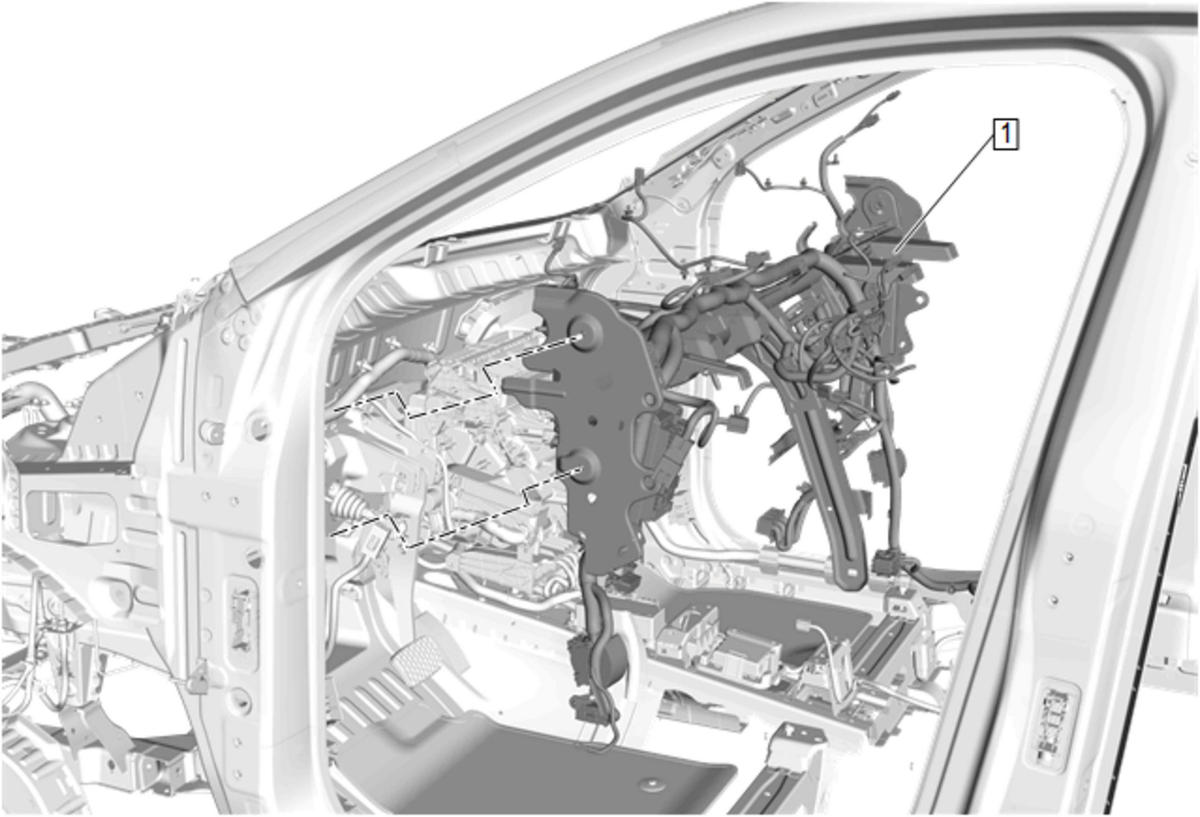

  3. GM5253710Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle. (1)

  4. Install the instrument panel wiring harness to the position noted in the removal procedure.

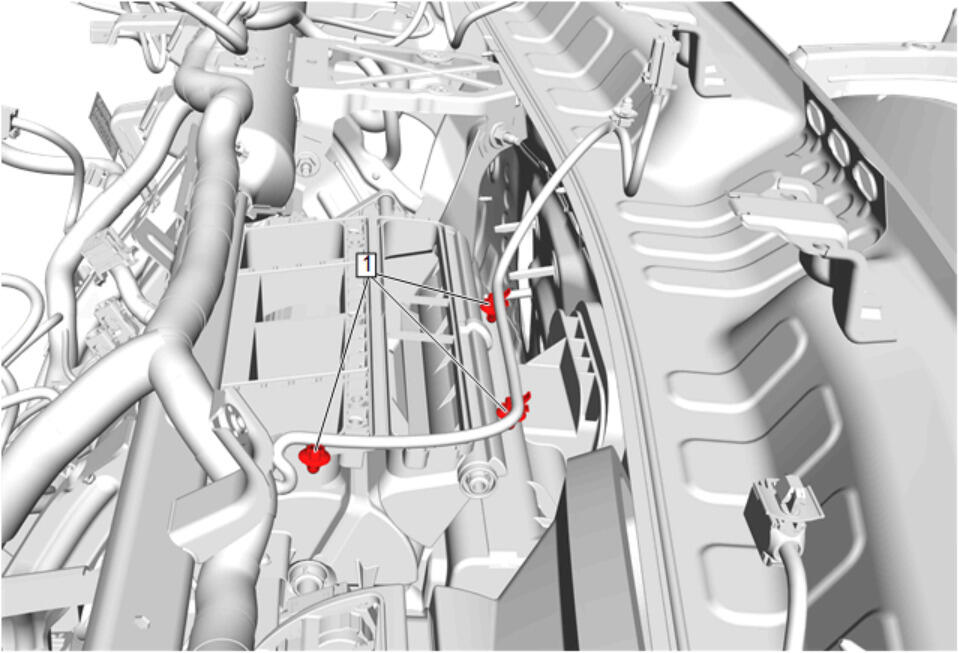

  5. GM5421872Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [3x]

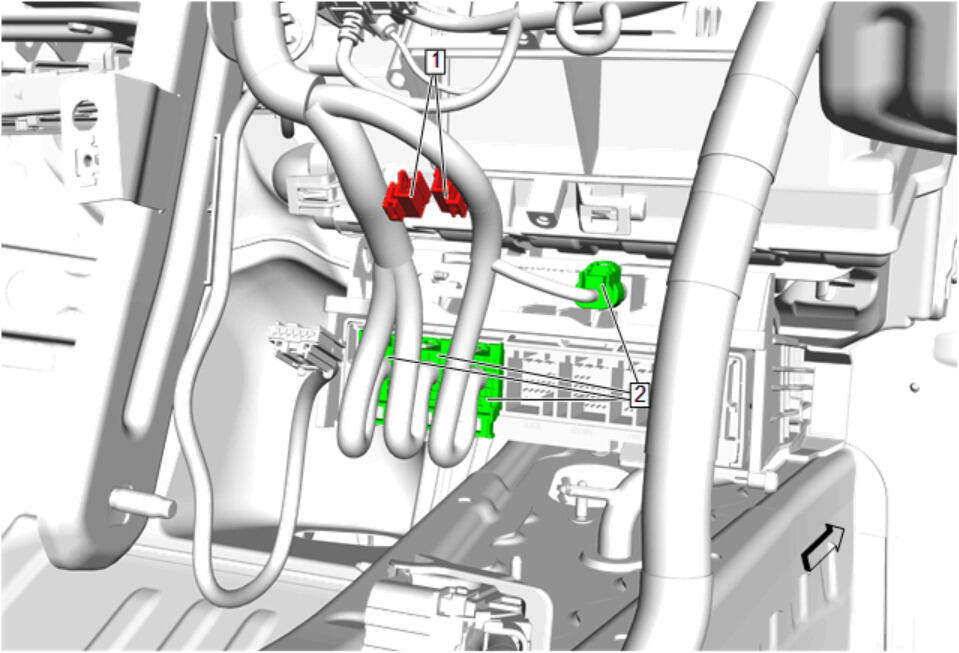

  6. GM5421870Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [2x]

  7. Wiring Harness Connector (2) - Connect [4x]

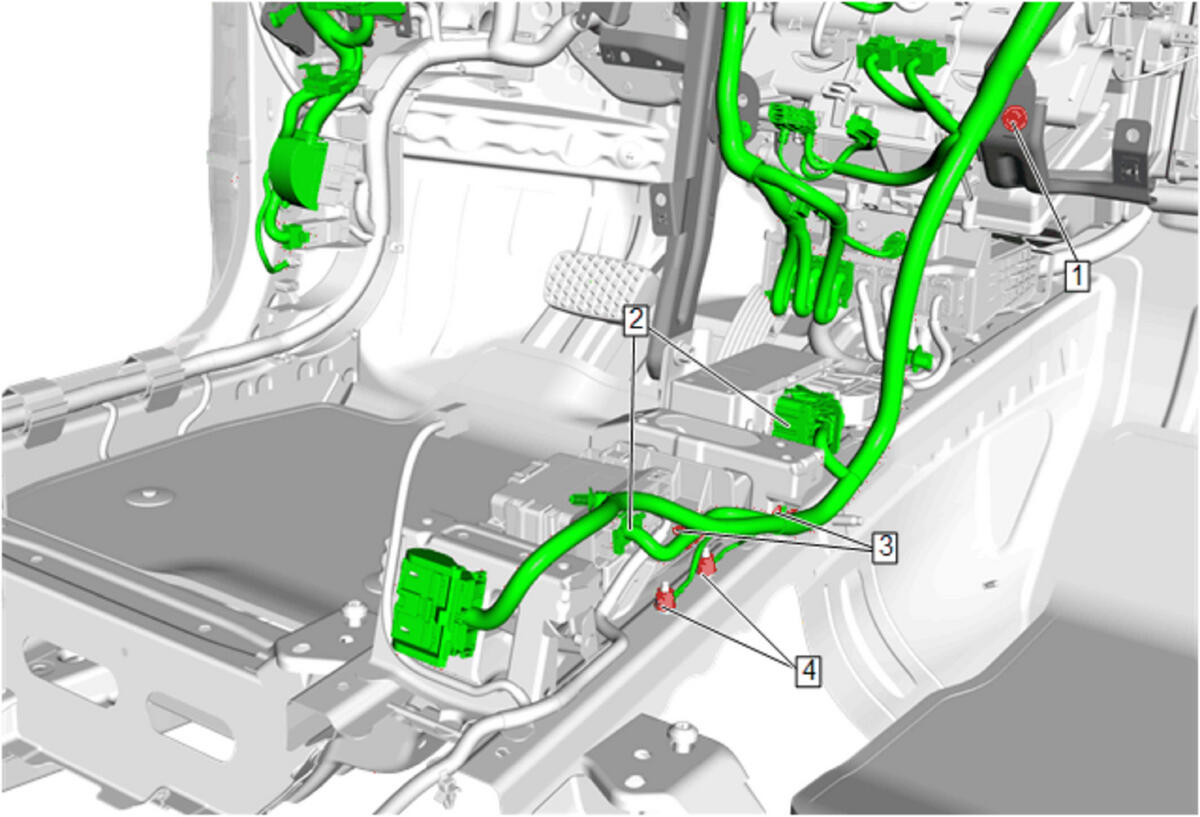

  8. GM5421879Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 5 N.m (44 lb in)

  9. Wiring Harness Connector (2) - Connect [3x]
  10. Retainer (3) - Install [2x]
  11. Instrument Panel Wiring Harness Ground Nut (4) - Install and tighten [2x] 9 N.m (80 lb in)

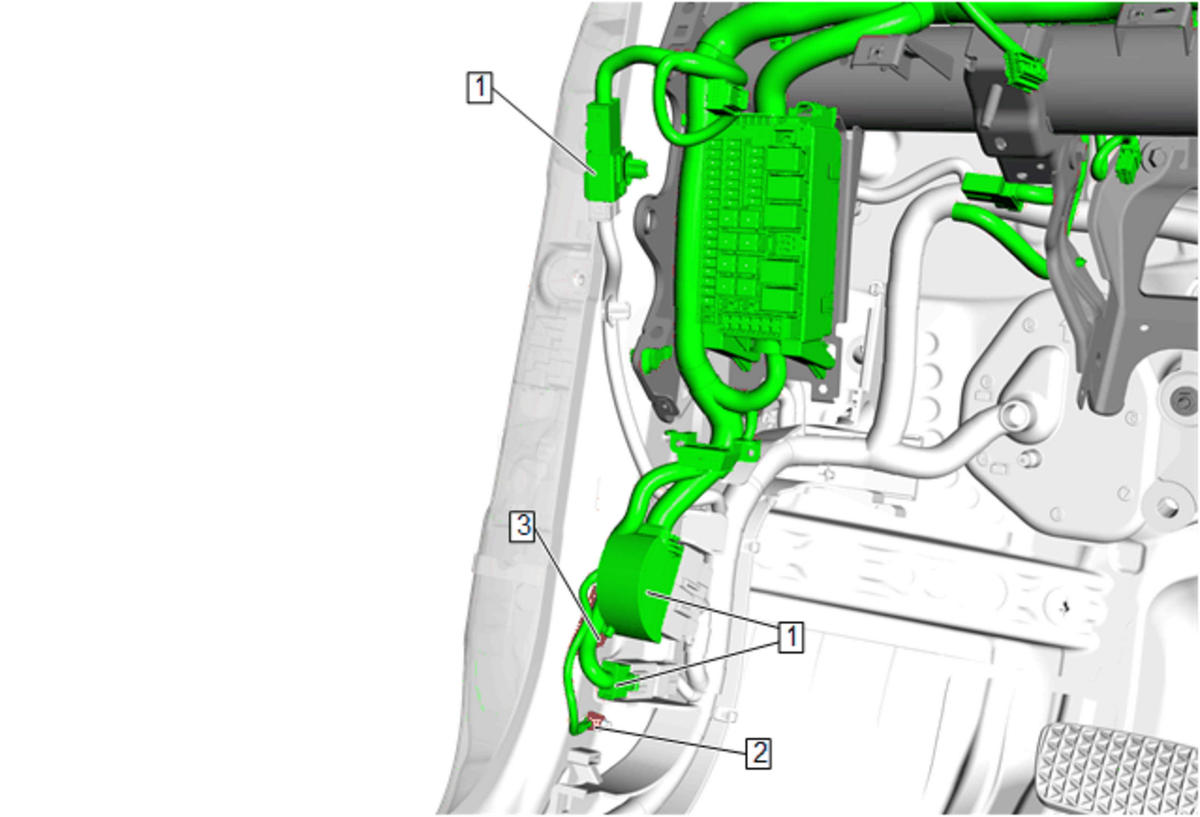

  12. GM5253707Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten 9 N.m (80 lb in)

  13. Wiring Harness Connector (1) - Connect [3x]
  14. Retainer (3) - Install

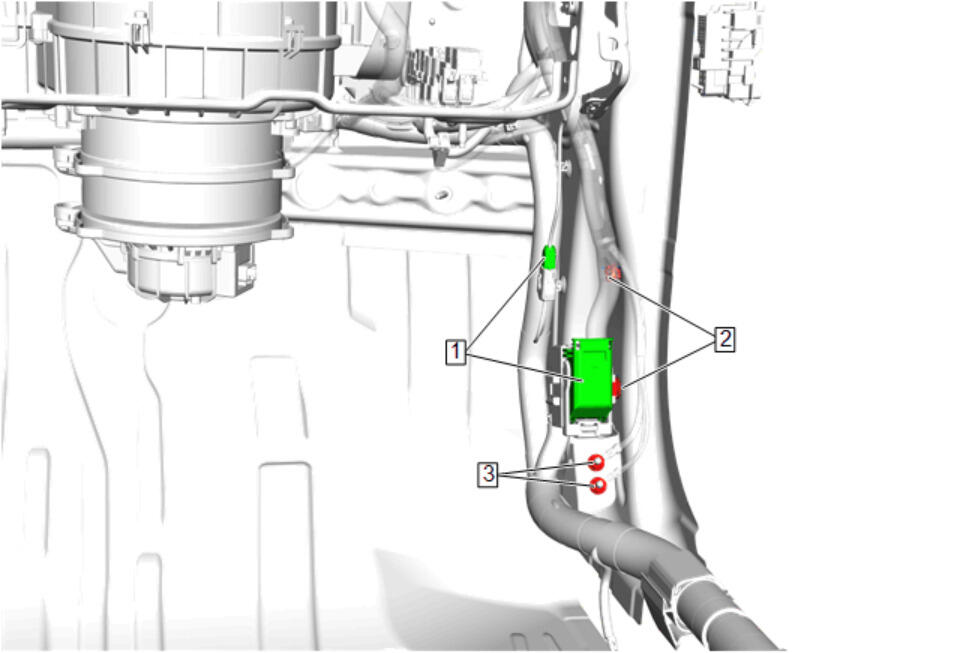

  15. GM5421856Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Connect [2x]

  16. Retainer (2) - Install [2x]
  17. Instrument Panel Wiring Harness Ground Nut (3) - Install and tighten [2x] 9 N.m (80 lb in)

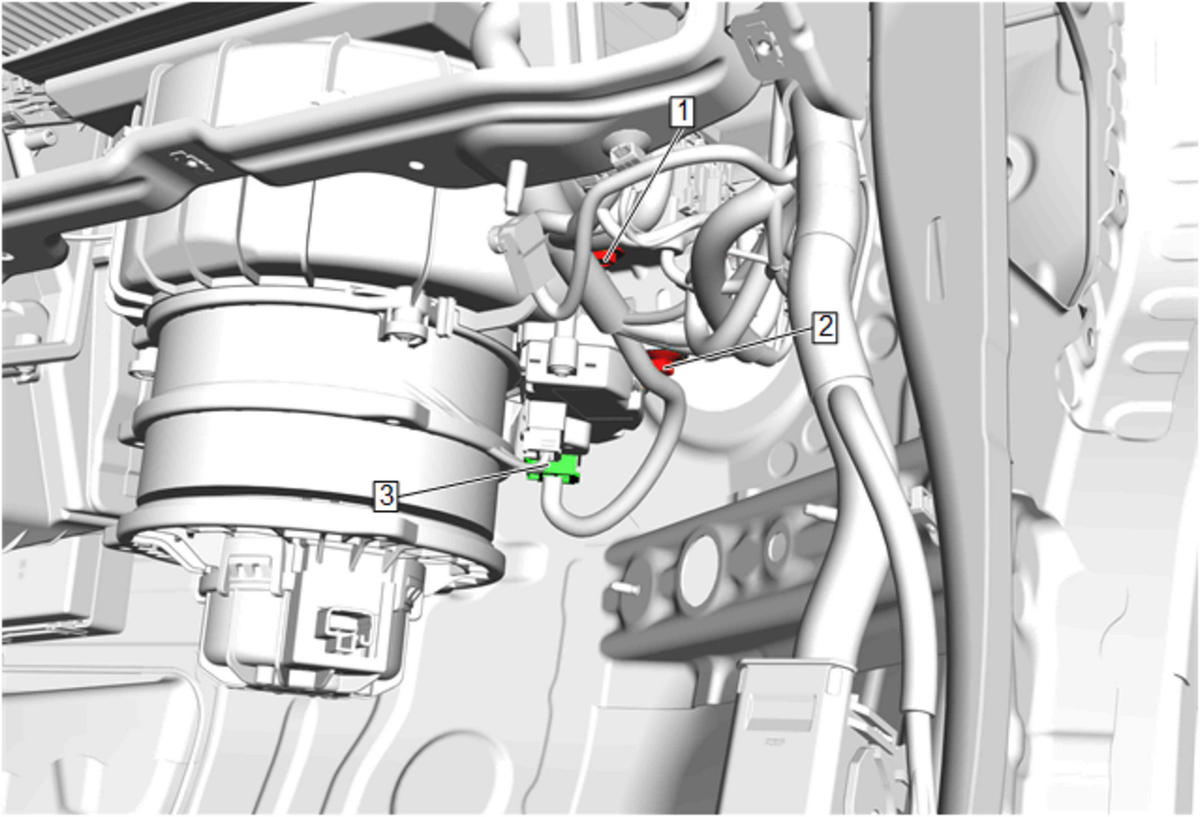

  18. GM5421863Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten 5 N.m (44 lb in)

  19. Retainer (2) - Install
  20. Wiring Harness Connector (3) - Connect
  21. GM5209005Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Sill Garnish Molding (2) - Left Side - Install - Front Side Door Sill Garnish Molding Replacement

  22. GM5245740Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (2) - Install - Heater and Air Conditioning Remote Control Replacement

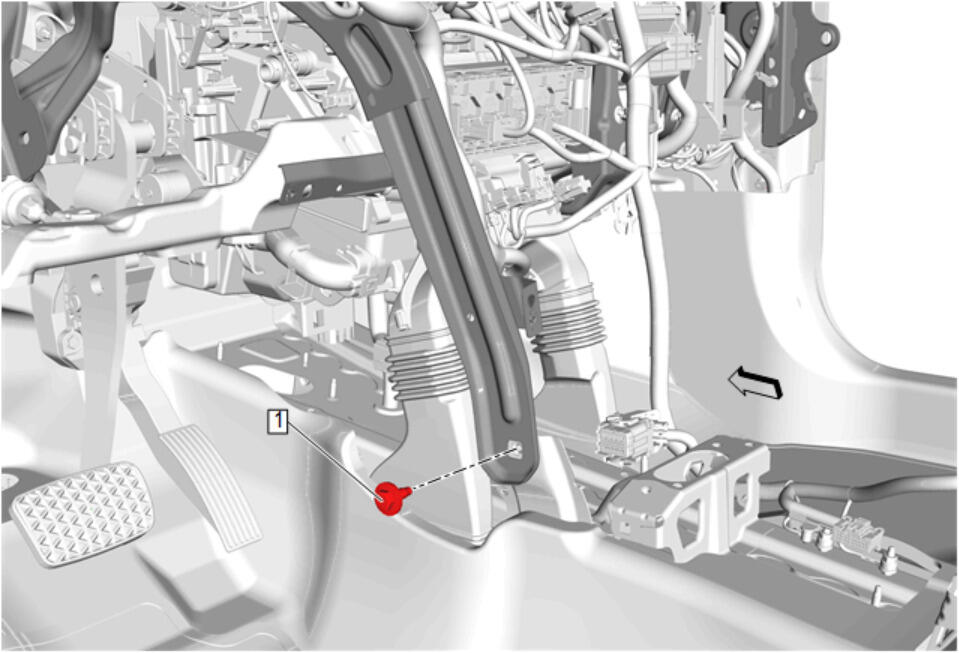

  23. GM5251584Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

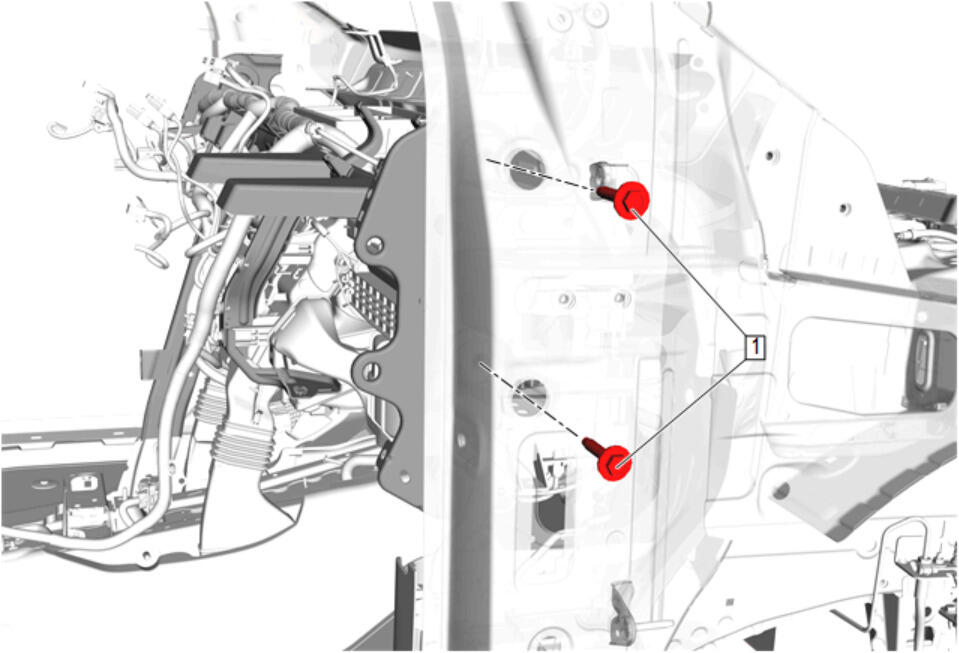

  24. GM5251571Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

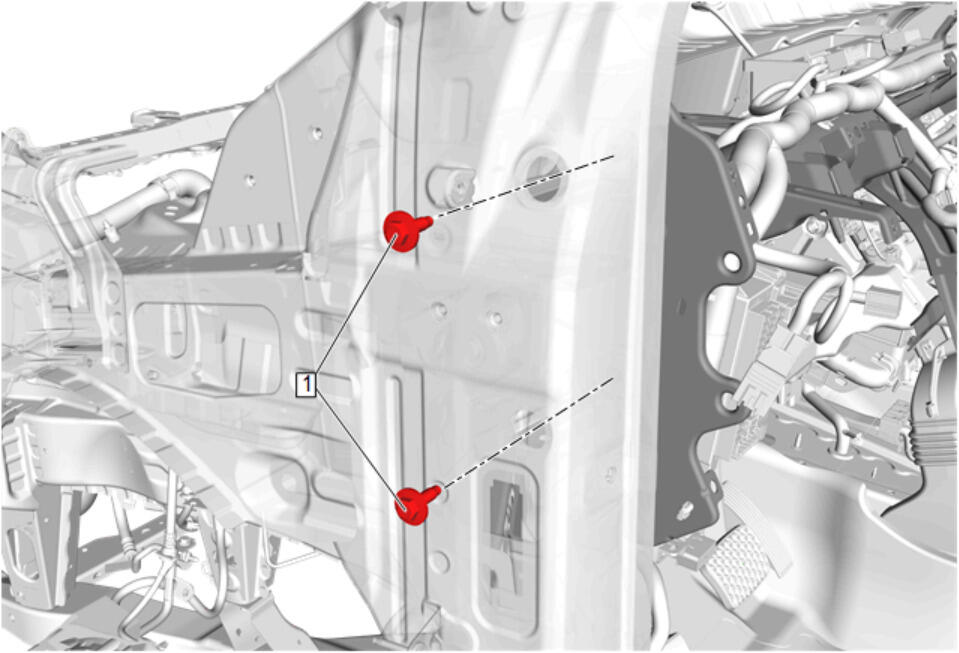

  25. GM5251570Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

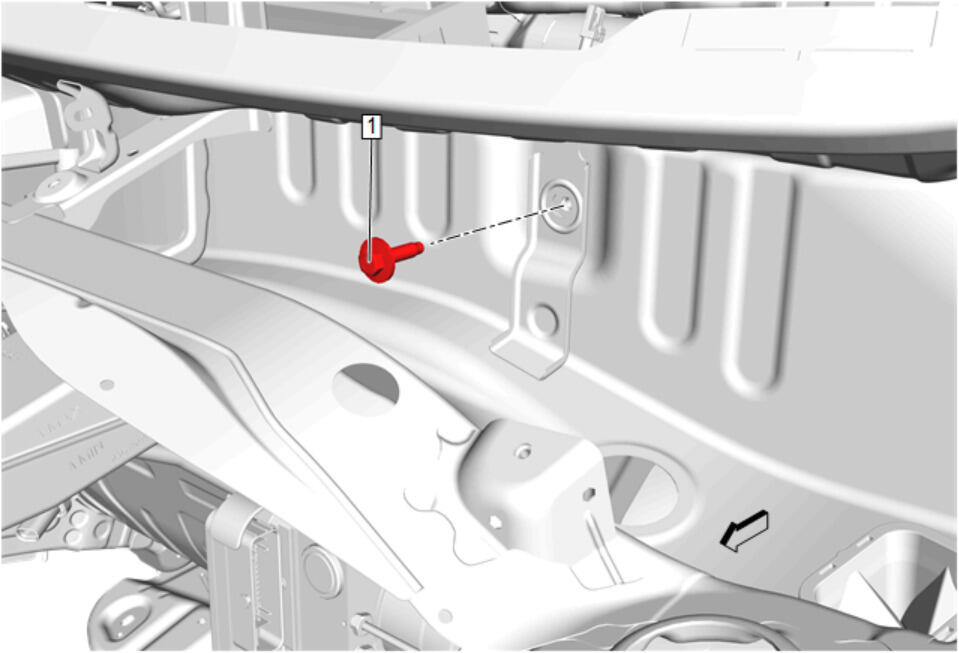

  26. GM5251510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)

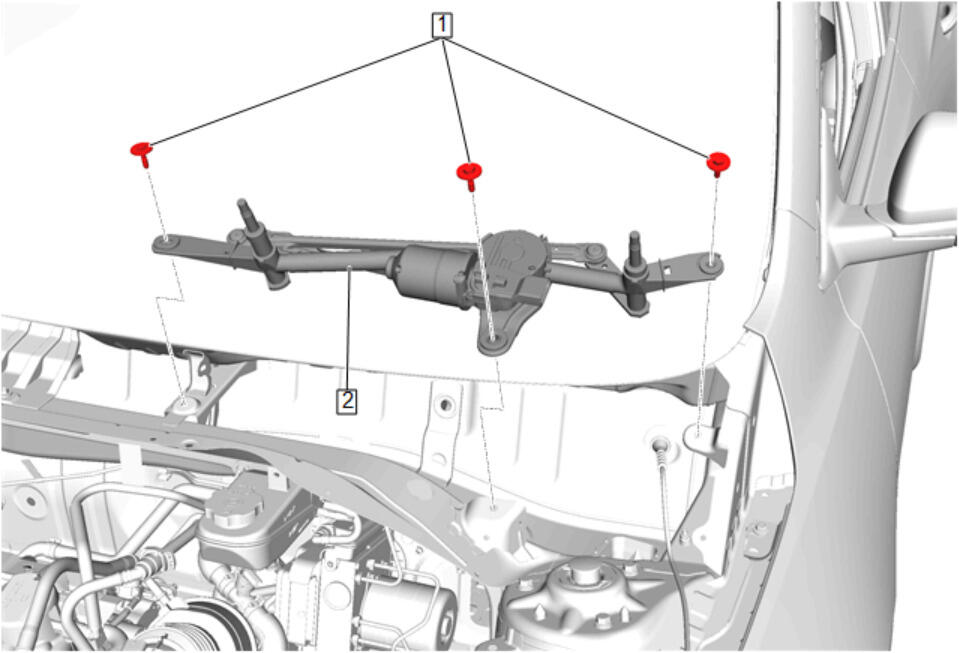

  27. GM5248964Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module (2) - Install - Windshield Wiper System Module Replacement

  28. GM5225124Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten - Brake and Accelerator Pedal Assembly Replacement

  29. Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

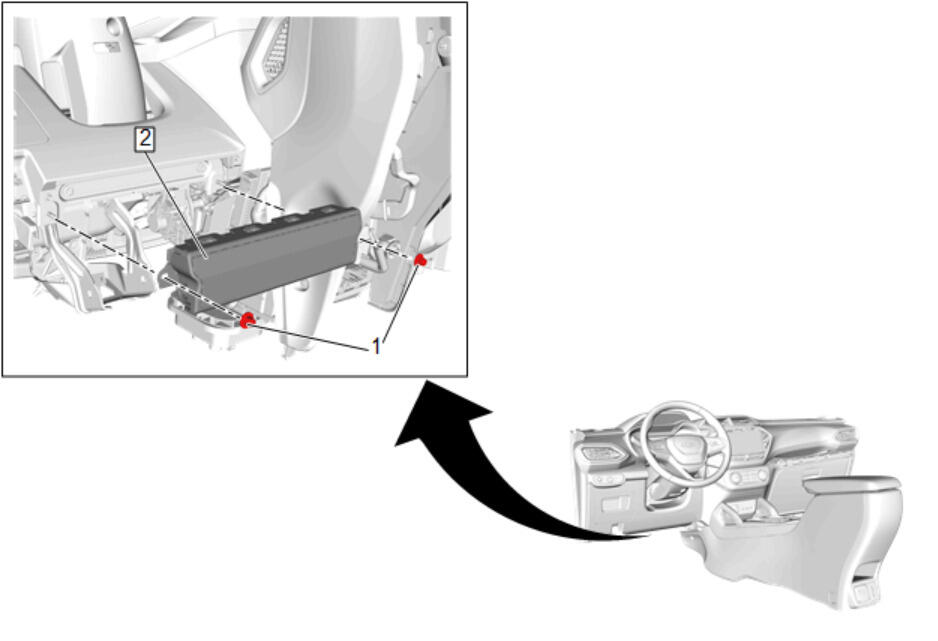

  30. GM5361413Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  31. GM5363118Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Assembly (1) - Install - Instrument Panel Assembly Replacement (8 Inch Display with IOR, IOS) , or Instrument Panel Assembly Replacement (7 Inch Display with IOR)

  32. GM5220211Courtesy of GENERAL MOTORS COMPANY

    Front Side Door (3) - Both Sides - Install - Front Side Door Replacement
