Installation Procedure

{If equipped} Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Handle (1) @ Instrument Panel Knee Bolster - Install - Hood Primary Latch Release Cable Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

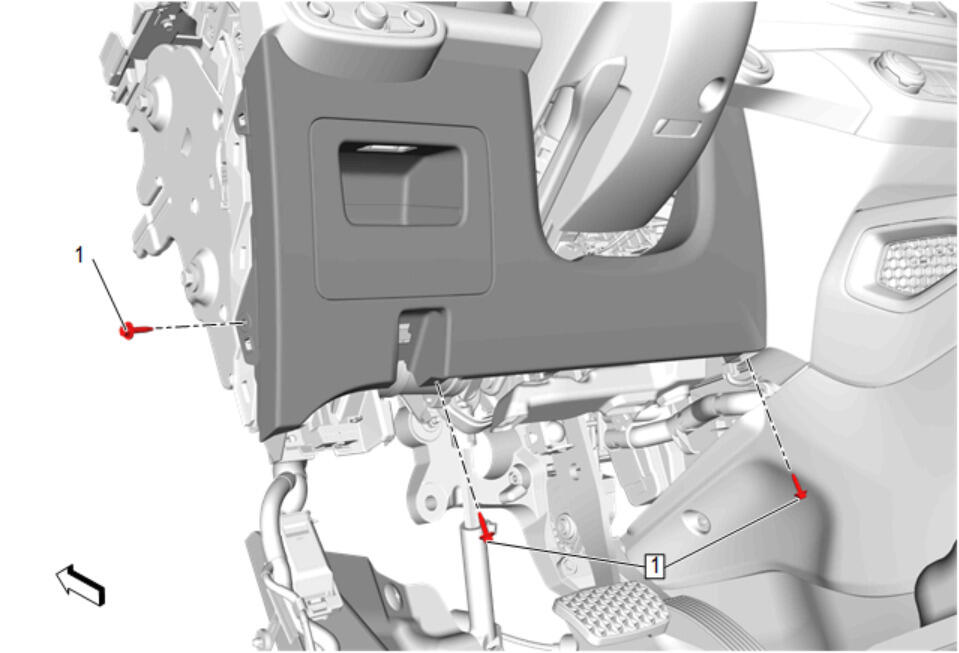

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Left Side
