Installation Procedure

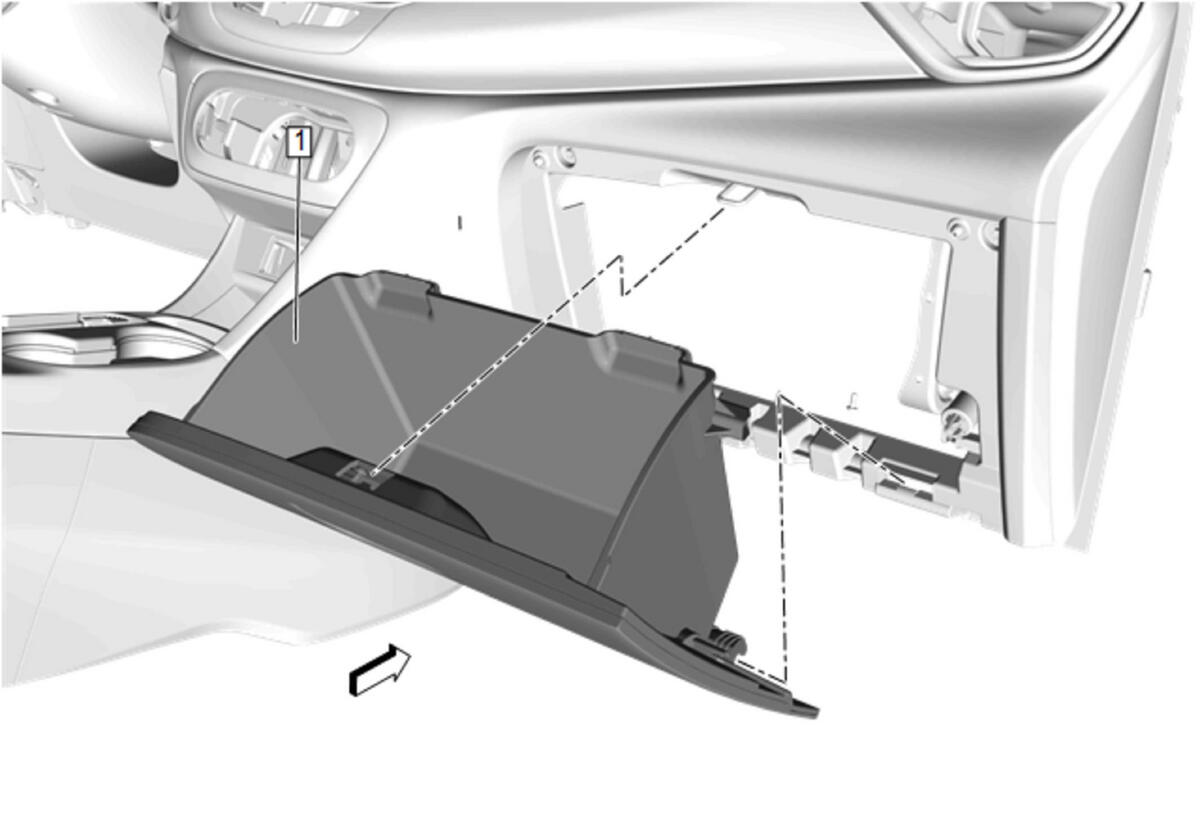

  1. GM5204100Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

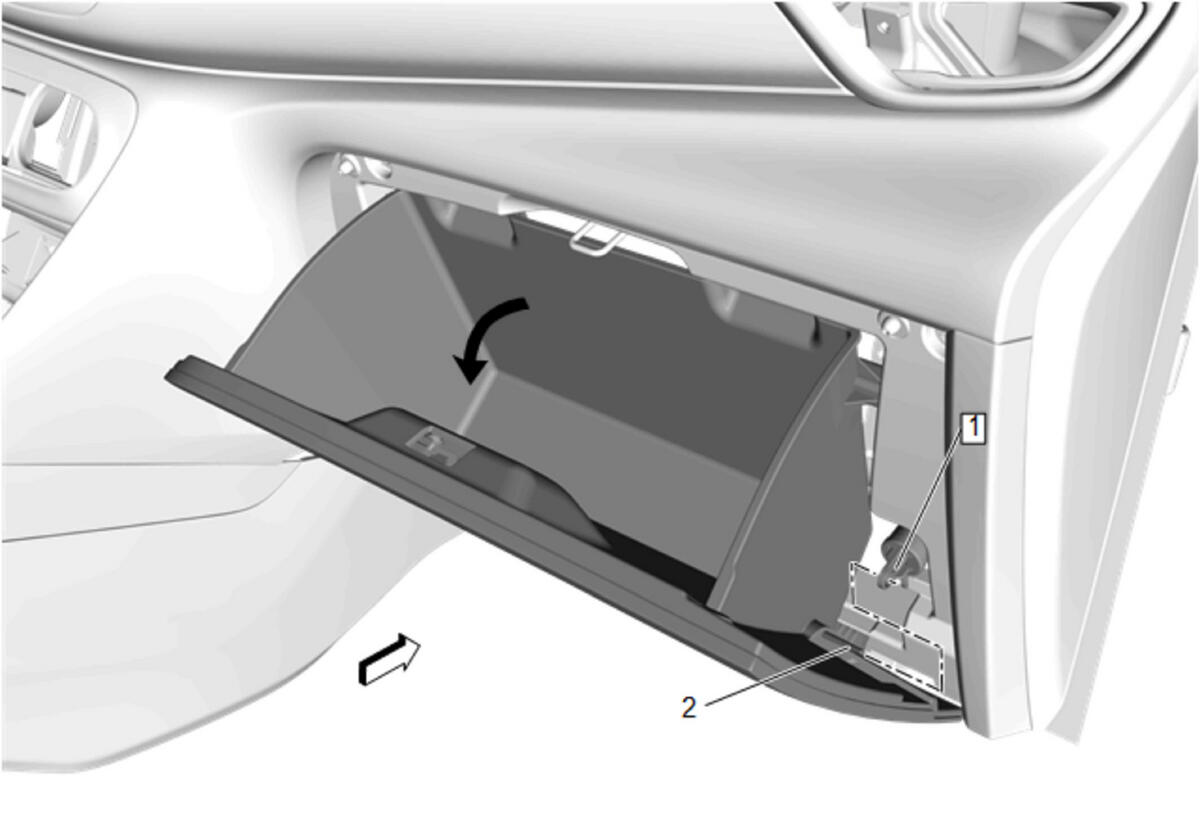

  2. GM5204099Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) @ Instrument Panel Compartment Door (2) - Connect
