Front Floor Lower Console Replacement

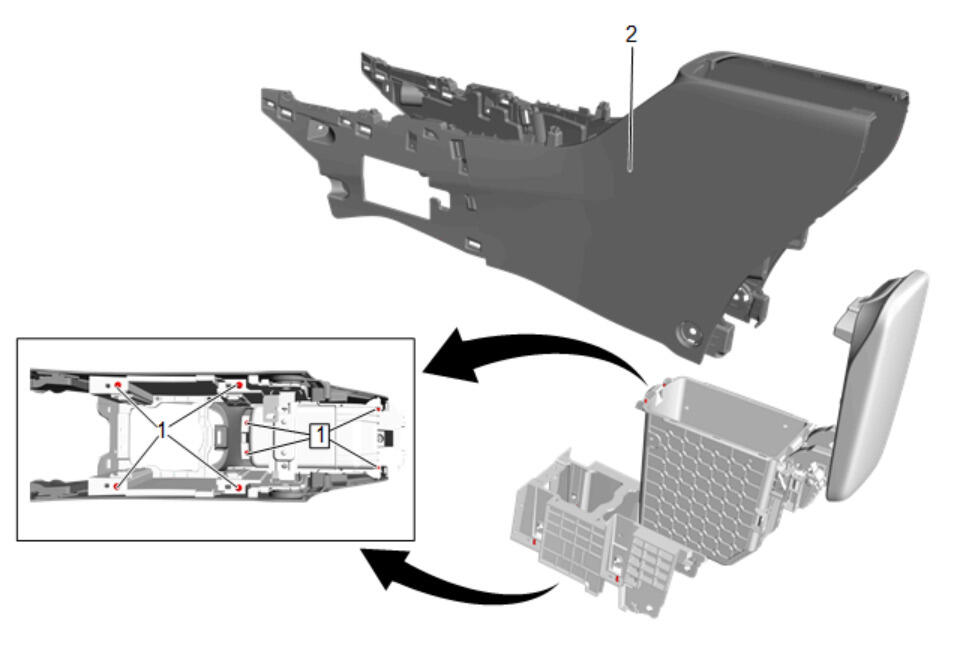

GM5168120Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Replacement
  2. Front Floor Console Trim Plate Replacement
  3. Front Floor Console Rear Trim Panel Replacement
1 Front Floor Console Compartment Bolt [8x]
CAUTION:

Fastener Caution


Tighten
0.85 N.m (8 lb in)
2 Front Floor Lower Console

Procedure

  1. If required, disconnect the electrical connectors.
  2. Transfer components as necessary.
