Front Floor Console Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

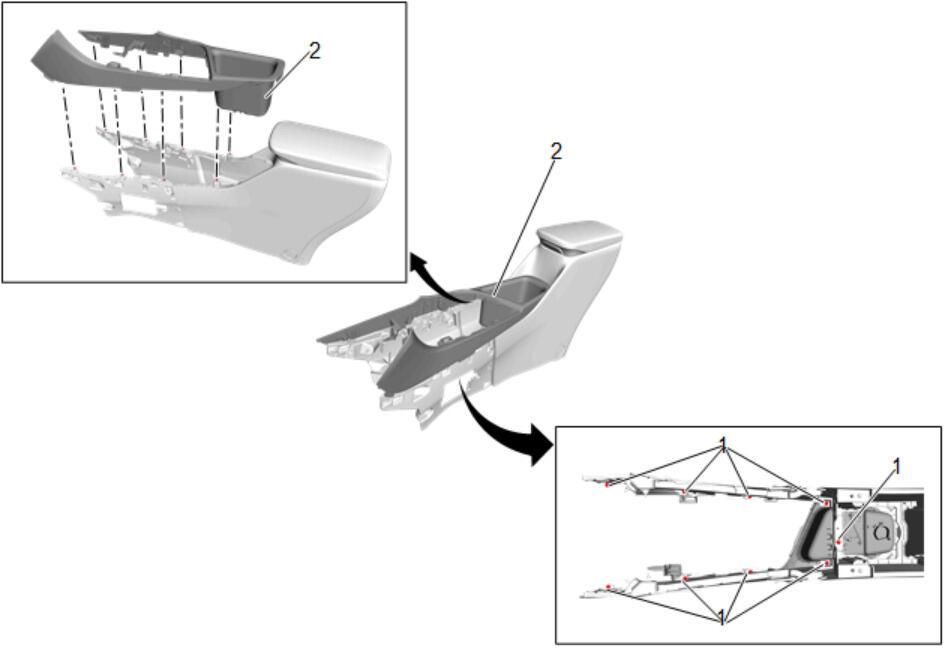

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement
1	Front Floor Console Trim Plate Bolt [9x] CAUTION: Fastener Caution Tighten  0.85 N.m (8 lb in)
2	Front Floor Console Trim Plate If needed, disconnect the electrical connector. Remove the theft deterrent module. Theft Deterrent Module Replacement
