Front Floor Console Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

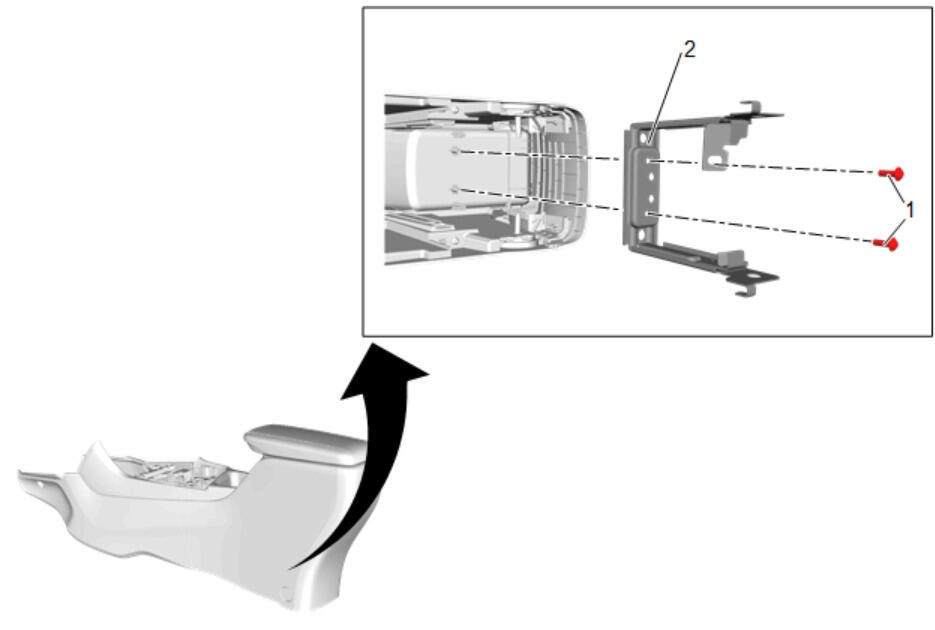

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement
1	Front Floor Console Bracket Bolt [2x] CAUTION: Fastener Caution Tighten  0.85 N.m (8 lb in)
2	Front Floor Console Bracket
