Front Floor Console Accessory Switch Mount Plate Replacement

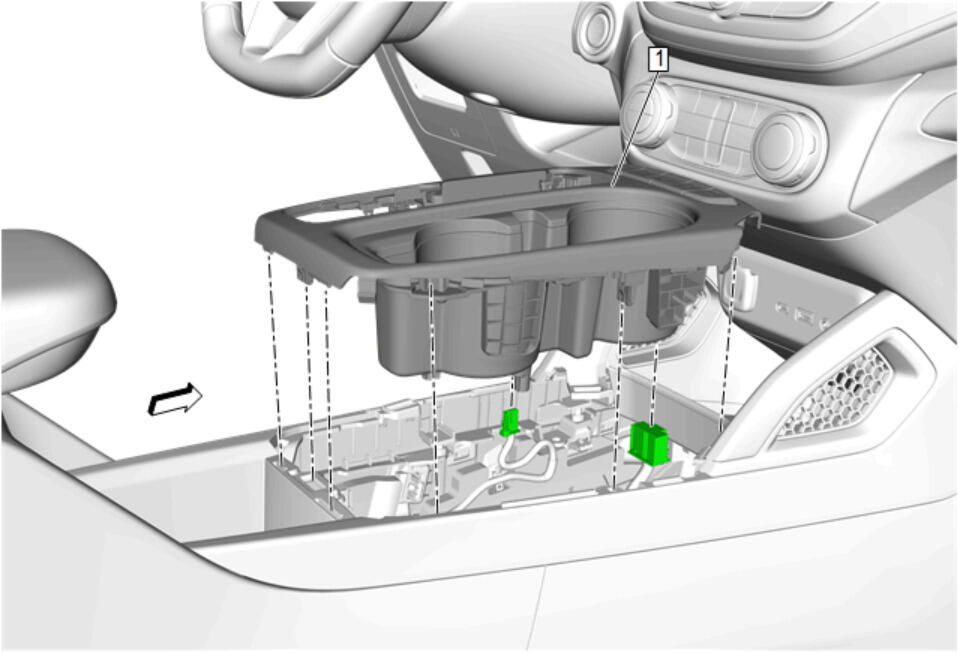

GM5319632

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

{With MRG} Transmission Control Lever Knob Replacement
{With M3F} Transmission Control Lever Knob Replacement

1

Front Floor Console Trim Plate

Procedure

Using a flat-bladed plastic trim tool, release the retaining clips.
Disconnect the electrical connector.
Remove the floor console accessory function switch. Floor Console Accessory Function Switch Replacement
