Installation Procedure

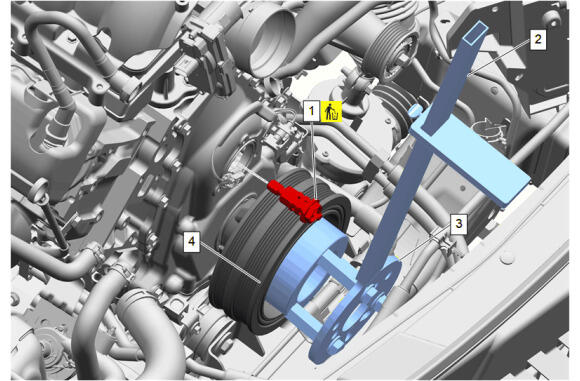

  1. Camshaft Position Actuator Solenoid Valve (1) - Install NEW and hand tighten
    GM5613308Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    The camshaft position actuator solenoid valves must be kept parallel to the engine front cover during removal and installation. The camshaft position actuator solenoid valves can be damaged if they become wedged or stuck during this process.

    NOTE:

    It is possible to push the camshaft rearward when installing the camshaft position actuator Valve. Please be careful not to push the camshaft while installing the camshaft position actuator valve.

  2. Install the EN-52287  Balancer Holding Kit (3) and EN-956-1  Extension Bar (2) to the crankshaft balancer (4).
    3. CAUTION:

    Refer to Component Fastener Tightening Caution .

  3. Hold EN-52287  Balancer Holding Kit (3) and EN-956-1  Extension Bar (2) and tighten the New camshaft position actuator solenoid valve (1). Fastener Specifications
  4. Remove EN-52287  Balancer Holding Kit (3) and EN-956-1  Extension Bar (2) from the crankshaft balancer (4).

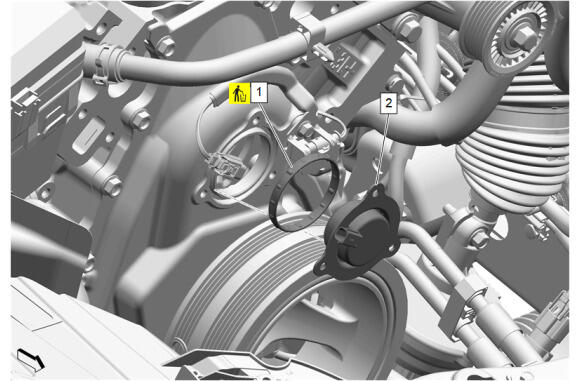

  5. Camshaft Position Actuator Magnet Gasket (1) - Install NEW
    GM5613298Courtesy of GENERAL MOTORS COMPANY

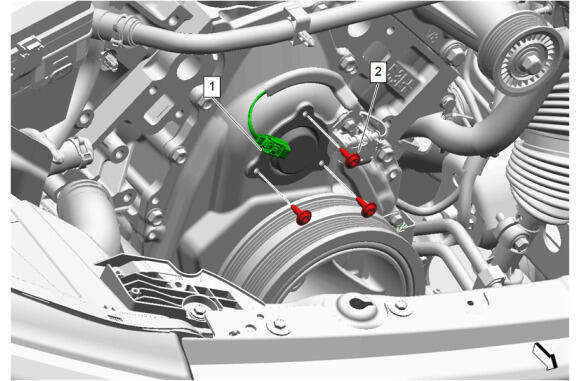

  6. Camshaft Position Actuator Magnet (2) - Install
  7. Camshaft Position Actuator Magnet Bolt (2) - Install and hand tighten [3x]
    GM5613297Courtesy of GENERAL MOTORS COMPANY
    8. CAUTION:

    Refer to Fastener Caution .

  8. Camshaft Position Actuator Magnet Bolt (2) - Tighten [3x] - Fastener Specifications
  9. Connect the camshaft position actuator magnet electrical connector (1) to the camshaft position actuator magnet.
  10. Water Pump Gasket (2) - Install NEW [2x]
    GM5587617Courtesy of GENERAL MOTORS COMPANY
  11. Water Pump Housing Bolt (1) - Install
  12. Water Pump Housing Bolt (1) - Install and hand tighten all fasteners prior to performing the torque sequence. [6x]
    GM4994474Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Clean all water pump bolts and apply threadlocker. Adhesives, Fluids, Lubricants, and Sealers

  13. Water Pump Housing Bolt - Tighten in sequence [6x] - Fastener Specifications

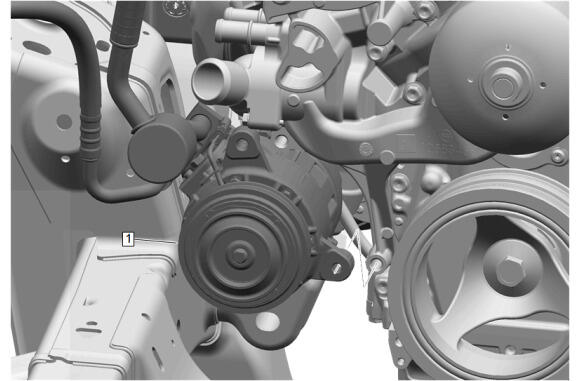

  14. Air Conditioning Compressor (1) - Install
    GM5584980Courtesy of GENERAL MOTORS COMPANY

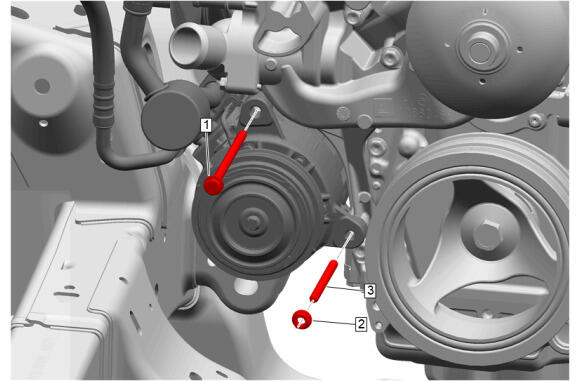

  15. Air Conditioning Compressor Stud (3) - Install and tighten - Fastener Specifications
    GM5584962Courtesy of GENERAL MOTORS COMPANY
  16. Air Conditioning Compressor Nut (2) - Install and tighten - Fastener Specifications
  17. Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
  18. Engine Coolant Temperature Sensor Electrical Connector (1) - Connect
    GM5587616Courtesy of GENERAL MOTORS COMPANY
  19. Radiator Inlet Hose (3) @ - Install
    GM5587615Courtesy of GENERAL MOTORS COMPANY
  20. Engine Coolant Air Bleed Hose (2) @Water Pump - Install
  21. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  22. Radiator Outlet Hose (2) @Water Pump - Install
    GM5587609Courtesy of GENERAL MOTORS COMPANY
  23. Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  24. Heater Water Auxiliary Pump Hose (3) @Water Pump - Install
    GM5587614Courtesy of GENERAL MOTORS COMPANY
  25. Heater Inlet Hose (2) @Water Pump - Install
  26. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  27. Generator (1) - Install
    GM5575803Courtesy of GENERAL MOTORS COMPANY
  28. Generator Bolt (1) - Install and tighten - Fastener Specifications
    GM5573707Courtesy of GENERAL MOTORS COMPANY
  29. Generator Bolt (2) - Install and tighten - Fastener Specifications
  30. Starter Solenoid Cable (2) - Install
    GM5573641Courtesy of GENERAL MOTORS COMPANY
  31. Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
  32. Electrical Connector (3) - Connect
    33. NOTE:

    The OEM replacement stretchy belt is packaged with a disposable installation tool and installation instructions.

  33. Install the air conditioning belt following the instructions included with the belt.
  34. Inspect the belt (1) for proper installation and alignment.
    GM5116154Courtesy of GENERAL MOTORS COMPANY
  35. Rotate the balancer (1) an additional 360 degrees to ensure proper belt installation.
    GM5116156Courtesy of GENERAL MOTORS COMPANY
  36. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).
    GM5523120Courtesy of GENERAL MOTORS COMPANY
  37. Install the EN-51767-2  Stretchy Belt Installer (1) onto the crankshaft balancer.
    GM5115929Courtesy of GENERAL MOTORS COMPANY
  38. Position the accessory drive primary belt (2) on the crankshaft balancer.
    GM5115932Courtesy of GENERAL MOTORS COMPANY
  39. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
  40. Remove the EN-51767-2  Stretchy Belt Installer (1) from the crankshaft balancer.
  41. Inspect the accessory drive primary belt (1) for proper installation and alignment.
    GM5115452Courtesy of GENERAL MOTORS COMPANY
  42. Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.
    GM5115454Courtesy of GENERAL MOTORS COMPANY
  43. Engine Cooler Fan (1) @Engine Radiator - Install
    GM5001394Courtesy of GENERAL MOTORS COMPANY
  44. Engine Coolant Fan Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
    GM5001393Courtesy of GENERAL MOTORS COMPANY
  45. Transmission Fluid Cooler Pipe Clip (1) - Secure
    GM5569584Courtesy of GENERAL MOTORS COMPANY
  46. Transmission Fluid Cooler Pipe Clip (2) - Install [2x]
    GM5569435Courtesy of GENERAL MOTORS COMPANY
  47. Transmission Fluid Cooler Pipe Bolt (1) - Install and tighten - Fastener Specifications
  48. Engine Oil Cooler Hose (1) @Engine Radiator - Install [2x]
    GM5568876Courtesy of GENERAL MOTORS COMPANY
  49. Engine Oil Cooler Pipe Bracket Bolt (3) - Install and tighten - Fastener Specifications
  50. Engine Oil Cooler Retainer (2) - Install [2x]
  51. Engine Oil Cooler Hose Clip (1) - Secure
    GM5568873Courtesy of GENERAL MOTORS COMPANY
  52. Position the wiring harness. (3)
    GM5568871Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

  53. Electrical Connector (1) - Connect
  54. Wiring Harness Retainer (2) - Install [2x]
  55. Position the wiring harness. (2)
    GM5568870Courtesy of GENERAL MOTORS COMPANY
  56. Electrical Connector (3) - Connect
  57. Wiring Harness Retainer (1) - Install [2x]
  58. Radiator Inlet Hose (3) @Engine Radiator - Install
    GM5568866Courtesy of GENERAL MOTORS COMPANY
  59. Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  60. Radiator Inlet Hose Clip (2) - Install
  61. Radiator Surge Tank Outlet Hose (3) - Reposition
    GM5568620Courtesy of GENERAL MOTORS COMPANY
  62. Radiator Surge Tank Outlet Hose Clip (2) - Install [2x]
  63. Engine Wiring Harness Fuse Block Bracket (3) - Install
    GM5573198Courtesy of GENERAL MOTORS COMPANY
  64. Retaining Tab (1) - Engage
  65. Engine Wiring Harness Fuse Block Bracket Bolt (2) - Tighten [2x] - Fastener Specifications
  66. Electrical Connector (1) - Install [4x]
    GM5573073Courtesy of GENERAL MOTORS COMPANY
  67. Engine Wiring Harness Junction Block (3) - Install
    GM5572883Courtesy of GENERAL MOTORS COMPANY
  68. Retaining Tab (1) - Engage [4x]
  69. Engine Wiring Harness Junction Block Bolt (2) - Tighten [4x] - Fastener Specifications
  70. Starter Solenoid Cable (4) - Install
    GM5572790Courtesy of GENERAL MOTORS COMPANY
  71. Battery Positive Cable Nut (3) - Install and tighten - Fastener Specifications
  72. Engine Wiring Harness Junction Block Cover (2) - Install
  73. Retaining Tab (1) - Engage [2x]
  74. Air Cleaner Outlet Duct (3) - Install
    GM5551440Courtesy of GENERAL MOTORS COMPANY
  75. Air Cleaner Outlet Duct Clamp (2) - Tighten [2x]
  76. Positive Crankcase Ventilation Fresh Air Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
  77. Air Cleaner Outlet Duct Bracket Bolt (1) - Install and tighten - Fastener Specifications
    GM5001375Courtesy of GENERAL MOTORS COMPANY
  78. Install the engine wiring harness to the air cleaner outlet duct bracket.
  79. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
  80. Fill the cooling system. Cooling System Draining and Filling (GE 47716 L84, L87) , or Cooling System Draining and Filling (Static L84, L87)
  81. Start the engine and check for coolant leaks.
