Fastener Specifications

GM5569735Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia Headlamp Opening Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Headlamp Opening Bracket Bolt [4x] - - 2.3 N.m (20 lb in) Front Bumper Fascia Headlamp Opening Bracket Replacement - Lower
Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper

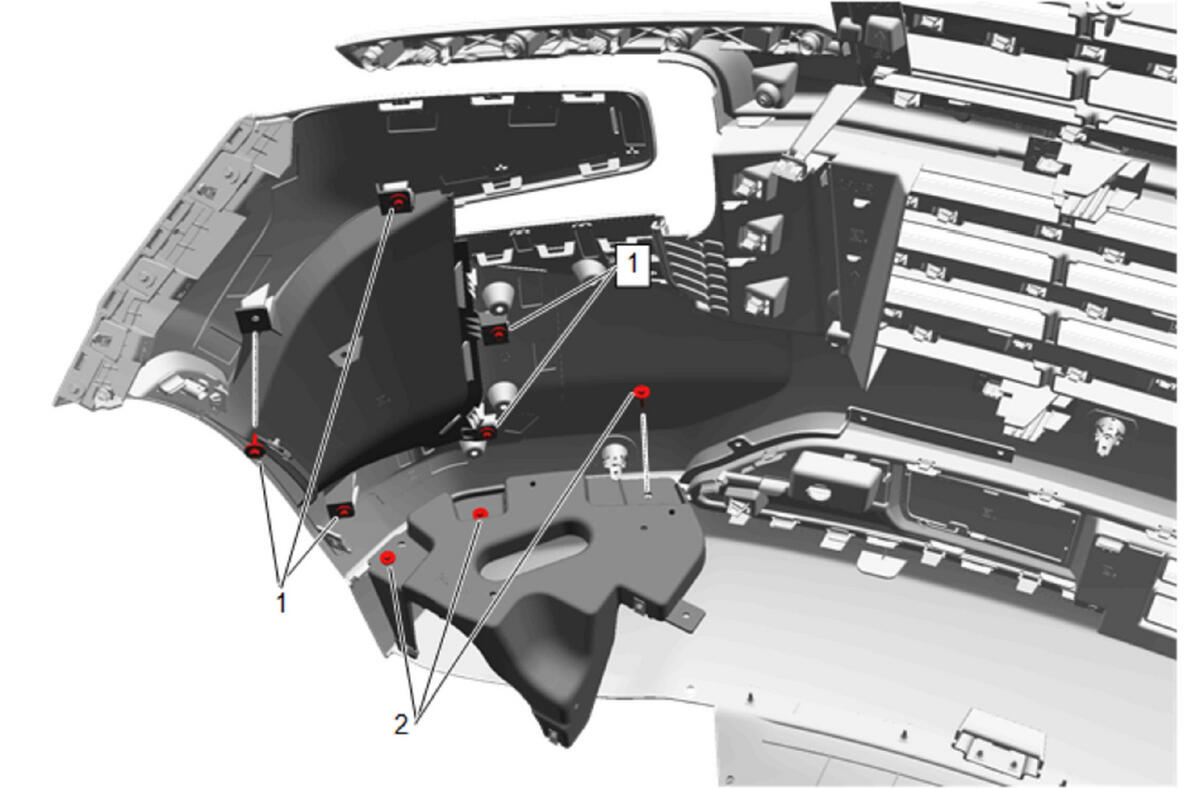

GM5550054Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia Outer Air Duct and Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [5x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Outer Air Duct Replacement
2 Front Bumper Fascia Reinforcement Bolt - - 2.5 N.m (22 lb in) Front Bumper Fascia Reinforcement Replacement
GM5838200Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia Seal with LM2 and WTX

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [3x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Seal Replacement (with LM2 and WTX)
GM5543919Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia Seal with RC1

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [5x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Seal Replacement (with RC1)
GM5607674Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia Upper Stiffener

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Upper Stiffener Bolt [2x] - - 9 N.m (80 lb in) Front Bumper Fascia Upper Stiffener Replacement
2 Front Bumper Fascia Upper Stiffener Nut [2x] - - 9 N.m (80 lb in) Front Bumper Fascia Upper Stiffener Replacement

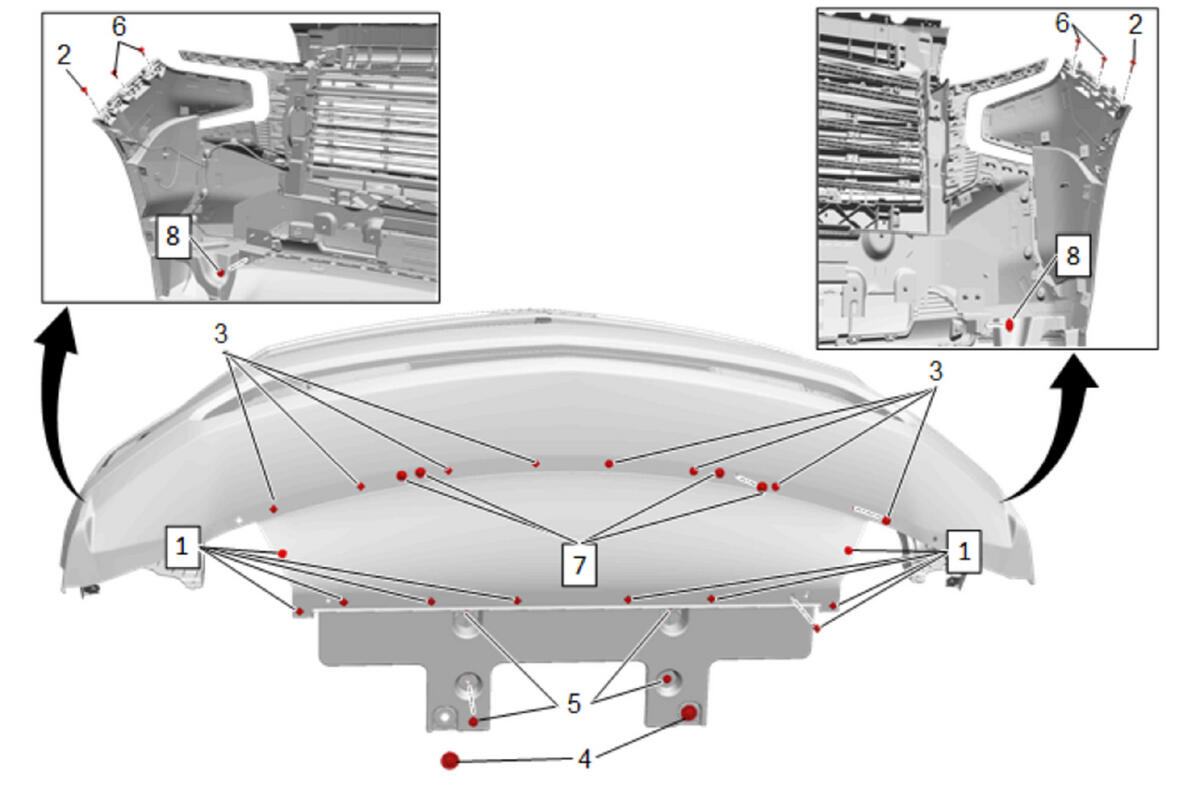

GM5535464Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia with WTX

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Air Deflector Bolt [10x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
2 Front Bumper Fascia Bolt [2x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
3 Front Bumper Fascia Extension Bolt@Fascia [8x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
4 Front Bumper Fascia Extension Bolt@Skid Shield [2x] - - 22 N.m (16 lb ft) Front Bumper Fascia Removal and Installation (with WTX)
5 Front Bumper Fascia Extension Bolt [4x] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX)
6 Front Bumper Fascia Guide Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
Front Bumper Fascia Guide Replacement
7 Front Bumper Fascia Lower Bracket Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
8 Front Bumper Fascia Support Brace Bolt [2x] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX)
GM5535465Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Fascia without RC1

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
2 Front Bumper Fascia Guide Bolt [4x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (with WTX)
Front Bumper Fascia Guide Replacement
3 Front Bumper Fascia Reinforcement Bolt [8x] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX)
4 Front Bumper Fascia Support Brace Bolt [2x] - - 9 N.m (80 lb in) Front Bumper Fascia Removal and Installation (with WTX)
GM5554658Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt [6x] - - 58 N.m (43 lb ft) Front Bumper Impact Bar Replacement
GM5590581Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Lower Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [4x] - - 6 N.m (53 lb in) Front Bumper Lower Shutter Replacement
GM5590580Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [9x] - - 6 N.m (53 lb in) Front Bumper Shutter Replacement
GM5590592Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Grille Support Reinforcement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Grille Support Bracket Bolt [4x] - - 9 N.m (80 lb in) Front Grille Support Reinforcement Replacement
GM5535640Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Adjust Bumper Bolt [2x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
2 Rear Bumper Fascia Bolt [8x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation
3 Rear Bumper Fascia Lower Bracket Bolt [4x] - - 7 N.m (62 lb in) Rear Bumper Fascia Removal and Installation
GM5562836Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [6x] Yes - - Rear Bumper Fascia Guide Replacement
GM5569478Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Impact Bar Bolt@Lower Frame [3x] - - 160 N.m (118 lb ft) Rear Bumper Impact Bar Replacement
2 Rear Bumper Impact Bar Bolt@Outer Frame [2x] - - 100 N.m (74 lb ft) Rear Bumper Impact Bar Replacement
