Removal Procedure

Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation
Radio Rear Side Door Speaker Bolt (1) - Remove

Courtesy of GENERAL MOTORS COMPANY
Radio Rear Side Door Speaker (2) - Remove
Disconnect the electrical connector.

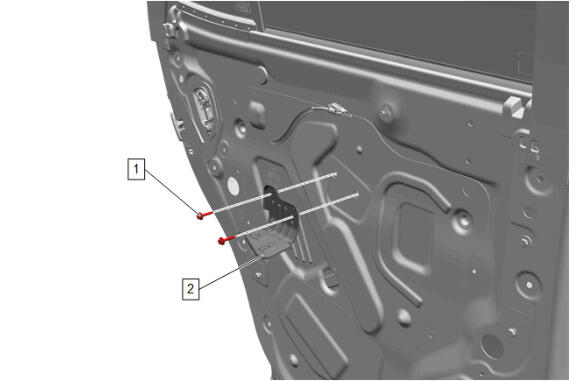

Rear Side Door Trim Bolt (1) - Remove [2x]

Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Pull Handle Bracket (2) - Remove
Route the rear side door inside handle cable through hole in the rear side door water deflector (1).

Courtesy of GENERAL MOTORS COMPANY

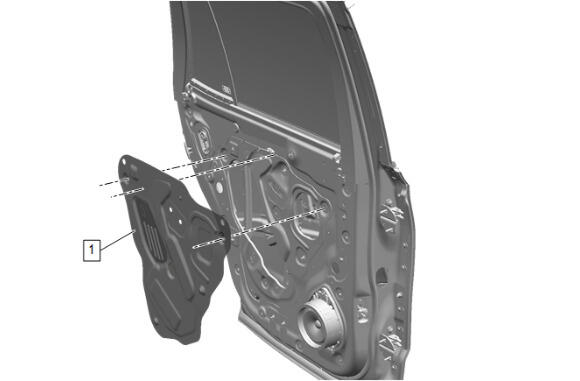

Rear Side Door Water Deflector (1) - Remove

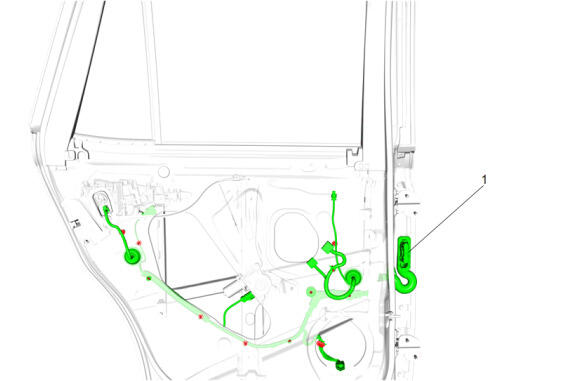

Rear Side Door Wiring Harness (1) - Remove

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Typical wiring harness shown, individual harness may be different due to option content.
