Removal Procedure

  1. Rear Side Door Check Link Body Side Bolt (1) - Remove
    GM5599681Courtesy of GENERAL MOTORS COMPANY
  2. Using the appropriate tool, remove the weatherstrip retainers from around the rear side door.
    GM5604789Courtesy of GENERAL MOTORS COMPANY

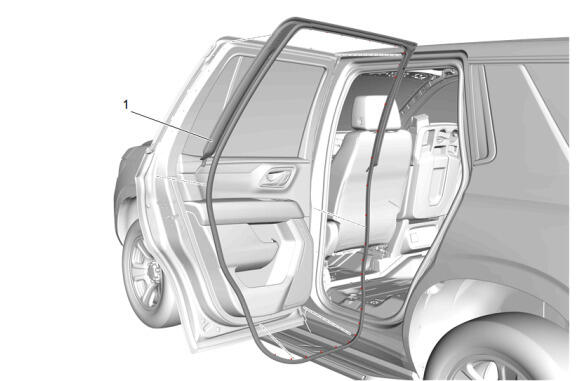

  3. Rear Side Door Weatherstrip - Door Side (1) - Remove
