Removal Procedure

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
    GM5562688Courtesy of GENERAL MOTORS COMPANY
  2. Pull upward from both sides of the rear side door sill garnish molding (1) to disengage retaining clips front to rear.
  3. Rear Side Door Sill Garnish Molding (1) - Remove

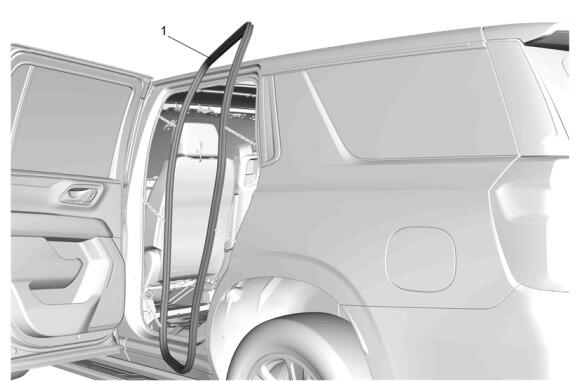

  4. Pull up and out to remove the rear side door weatherstrip (1) from the pinch weld flange.
    GM5601163Courtesy of GENERAL MOTORS COMPANY
  5. Rear Side Door Weatherstrip - Body Side (1) - Remove
