Removal Procedure

  1. Mark the location of the upper hinge before removing the bolts with a grease pencil.
  2. Rear Side Door Hinge Bolt - Body Side (1) - Remove [2x]

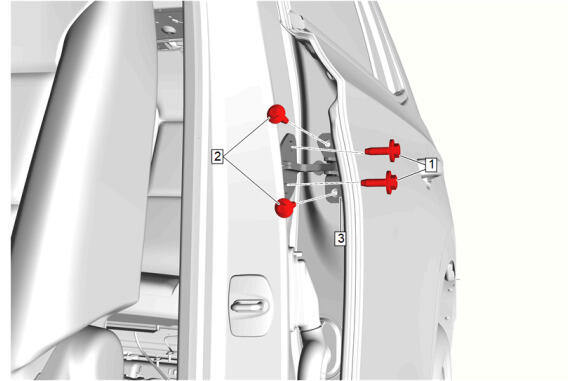

    GM5598958Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the door in the closed position and replace only one hinge at a time.

  3. Rear Side Door Hinge Bolt - Door Side (2) - Remove [2x]
  4. Rear Side Door Upper Hinge (3) - Remove
  5. Mark the location of the lower hinge before removing the bolts with a grease pencil.
  6. Rear Side Door Hinge Bolt - Body Side (1) - Remove [2x]

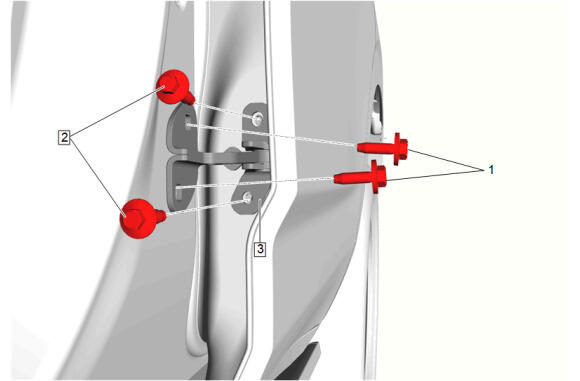

    GM5598959Courtesy of GENERAL MOTORS COMPANY
  7. Rear Side Door Hinge Bolt - Door Side (2) - Remove [2x]
  8. Rear Side Door Lower Hinge (3) - Remove
