Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.

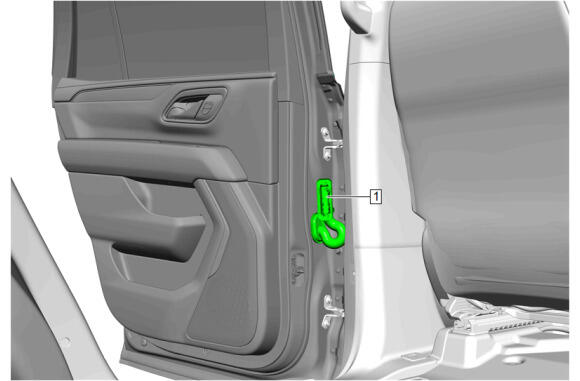

  2. Disconnect the electrical connector. (1)
    GM5518397Courtesy of GENERAL MOTORS COMPANY

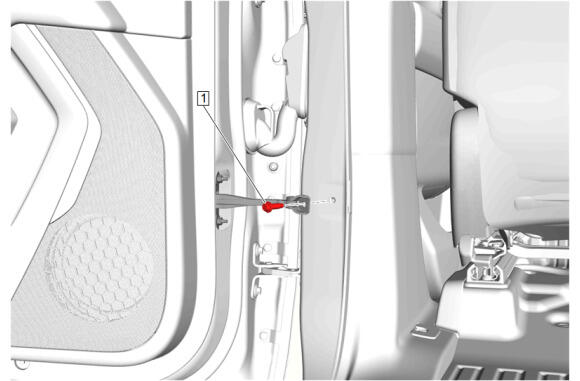

  3. Rear Side Door Check Link Body Side Bolt (1) - Remove
    GM5519149Courtesy of GENERAL MOTORS COMPANY
  4. Mark the location of the rear side door hinges with a grease pencil to aid in alignment during installation.
    GM5518390Courtesy of GENERAL MOTORS COMPANY

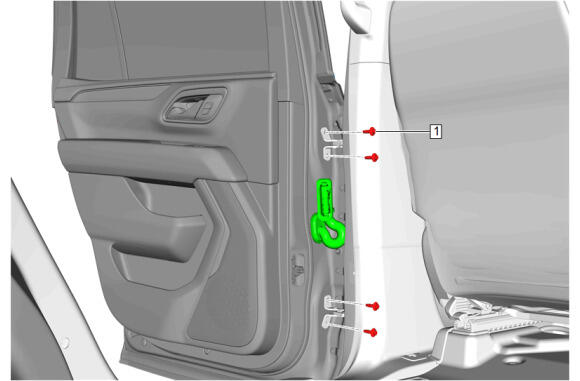

  5. Support the door before removing the hinge fastener.
  6. Rear Side Door Hinge Bolt - Door Side (1) - Remove [4x]

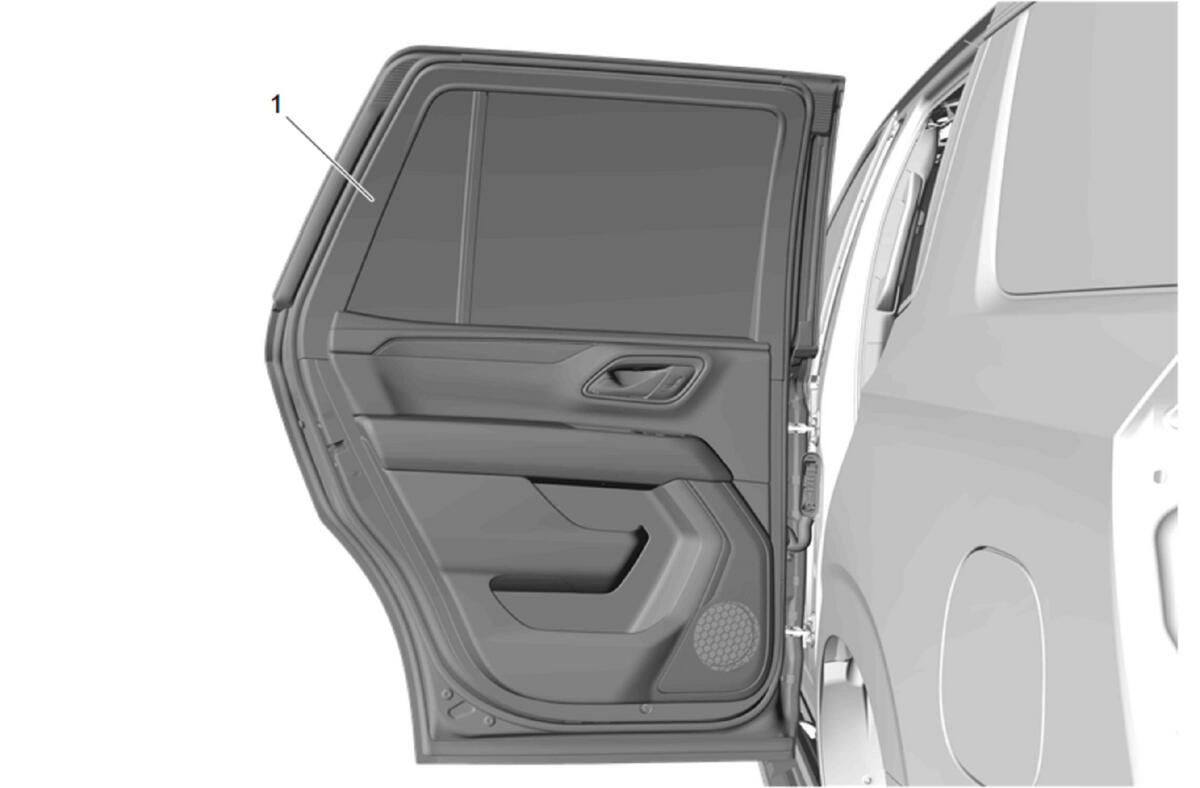

  7. With the aid of an assistant, remove the rear side door (1).
    GM5519174Courtesy of GENERAL MOTORS COMPANY
  8. Transfer components as necessary.
