Removal Procedure

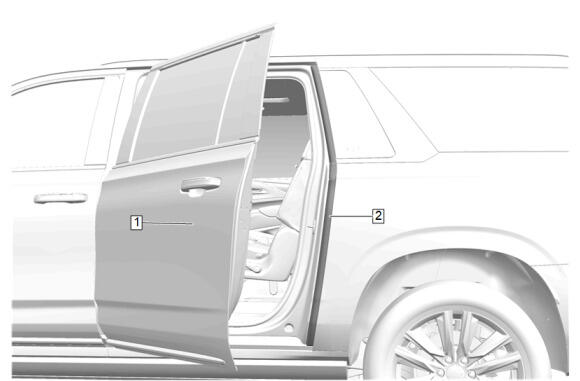

Open the rear side door (1) to gain access to the rear side door rear auxiliary weatherstrip (2).

Courtesy of GENERAL MOTORS COMPANY
Start at the bottom of the rear side door rear auxiliary weatherstrip (2).

Courtesy of GENERAL MOTORS COMPANY

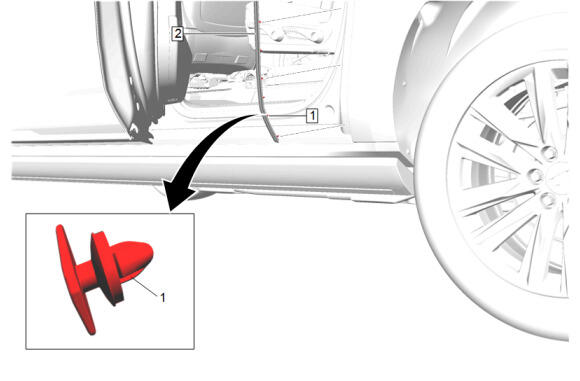

Rear Side Door Rear Auxiliary WeatherstripRetainer (1) - Release [12x]

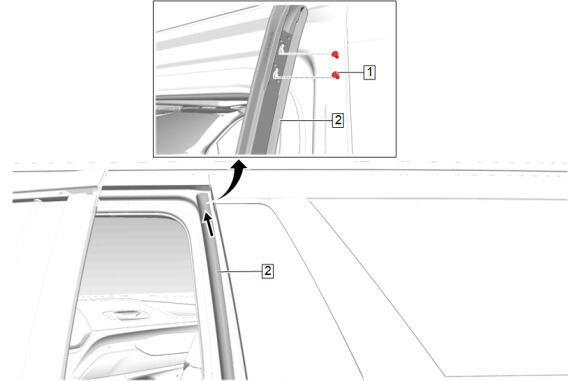

Push the rear side door rear auxiliary weatherstrip (2) up to release from both body side outer panel studs (1).

Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Rear Auxiliary Weatherstrip (2) - Remove
