Removal Procedure

  1. Open the rear door.

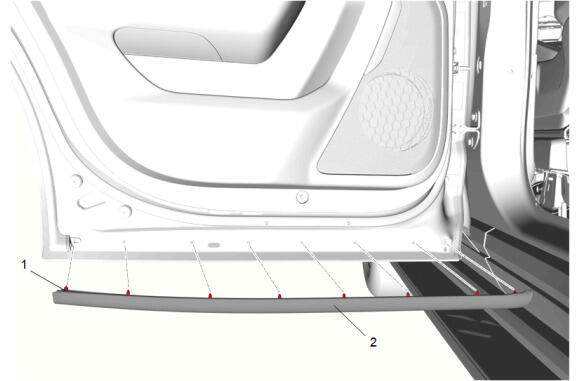

  2. Rear Side Door Lower Auxiliary Weatherstrip Retainers (1) - Release [8x]
    GM5600641Courtesy of GENERAL MOTORS COMPANY
  3. Rear Side Door Lower Auxiliary Weatherstrip (2) - Remove
