Removal Procedure

  1. Rear Side Door Lower Auxiliary Weatherstrip (1) - Reposition
    GM5600133Courtesy of GENERAL MOTORS COMPANY

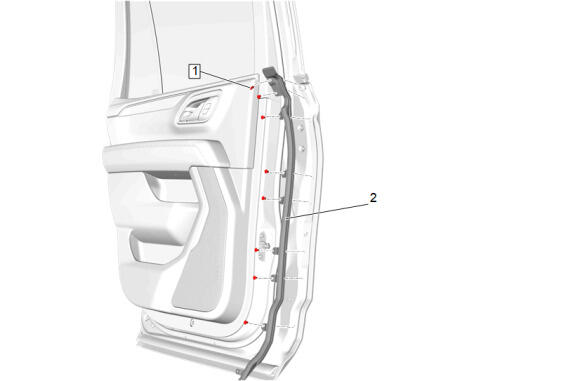

  2. Rear Side Door Front Auxiliary WeatherstripRetainer (1) - Remove [8x]
    GM5654397Courtesy of GENERAL MOTORS COMPANY
  3. Rear Side Door Front Auxiliary Weatherstrip (2) - Remove
