Removal Procedure

  1. Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation
    GM5521064Courtesy of GENERAL MOTORS COMPANY

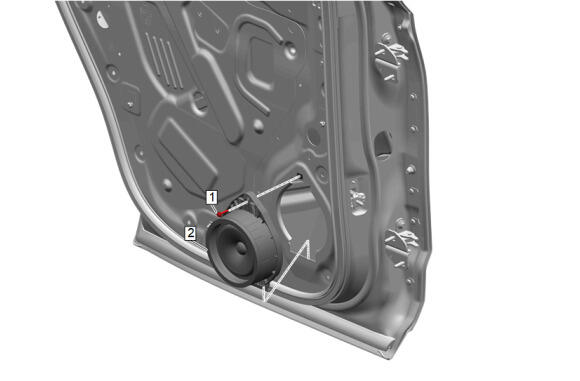

  2. Radio Rear Side Door Speaker Bolt (1) - Remove
  3. Radio Rear Side Door Speaker (2) - Remove
  4. Disconnect the electrical connector.

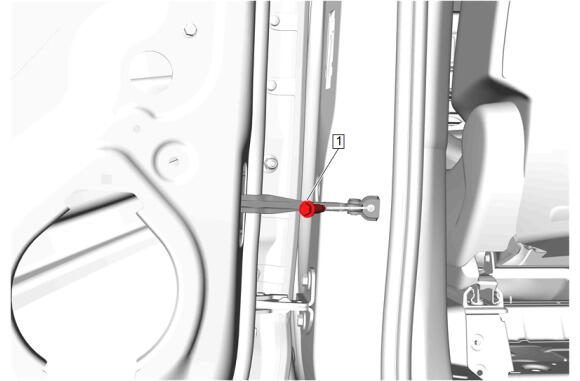

  5. Rear Side Door Check Link Body Side Bolt (1) - Remove
    GM5599681Courtesy of GENERAL MOTORS COMPANY

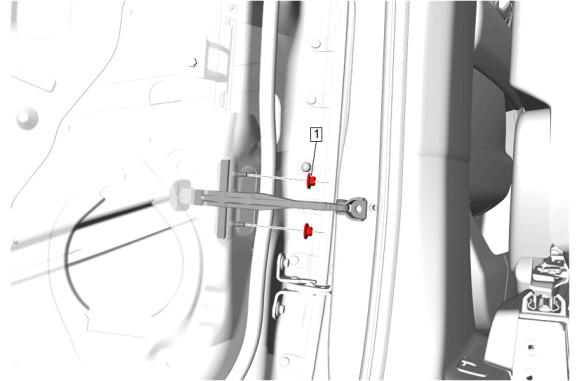

  6. Rear Side Door Check Link Door Side Nut (1) - Remove [2x]
    GM5599686Courtesy of GENERAL MOTORS COMPANY

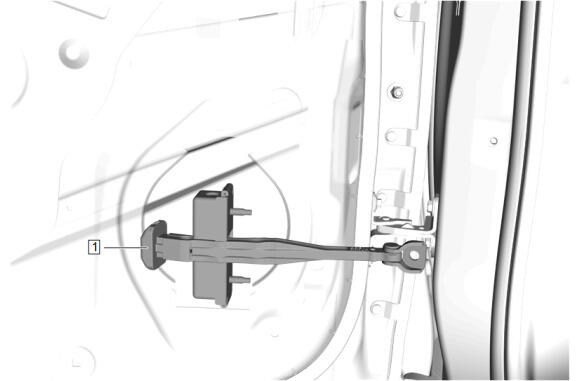

  7. Remove the rear side door check link (1) through the radio rear side door speaker hole.
    GM5599687Courtesy of GENERAL MOTORS COMPANY
