Installation Procedure

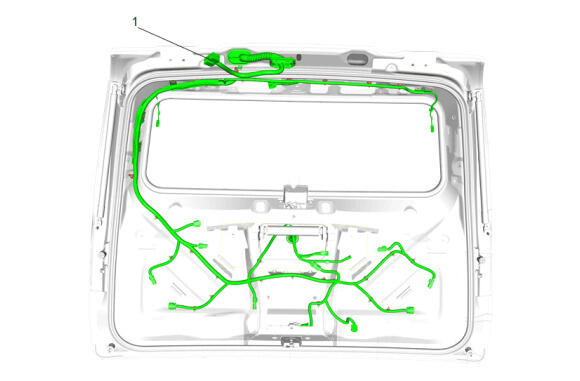

  1. Liftgate Wiring Harness (1) - Install
    GM5598531Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connectors and wire harness retainers as needed.
  3. Reposition and secure the headliner and liftgate weatherstrip.
  4. Connect the electrical connector.

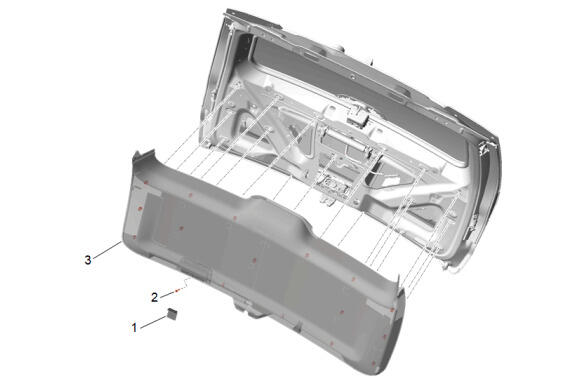

    GM5577873Courtesy of GENERAL MOTORS COMPANY
  5. Liftgate Lower Trim Finish Panel (3) - Install
    6. CAUTION:

    Refer to Fastener Caution .

  6. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  7. Rear Compartment Lid Inner Panel Trim Hole Plug (1) - Install

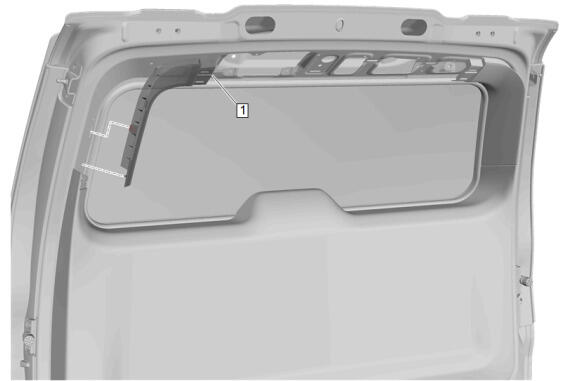

  8. Liftgate Upper Side Trim Finish Panel (1) - Install [2x]
    GM5577872Courtesy of GENERAL MOTORS COMPANY

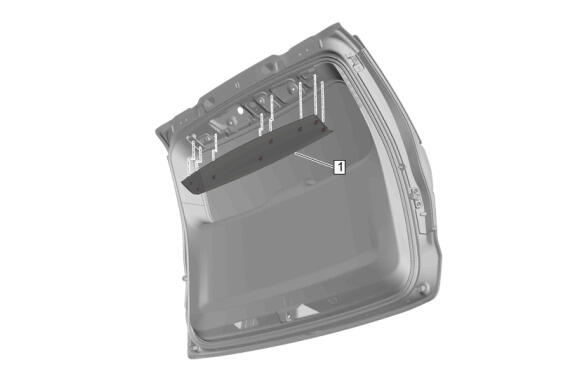

  9. Liftgate Upper Center Trim Finish Panel (1) - Install
    GM5577870Courtesy of GENERAL MOTORS COMPANY
  10. Liftgate Lower Trim Finish Panel Access Hole Cover (2) - Install

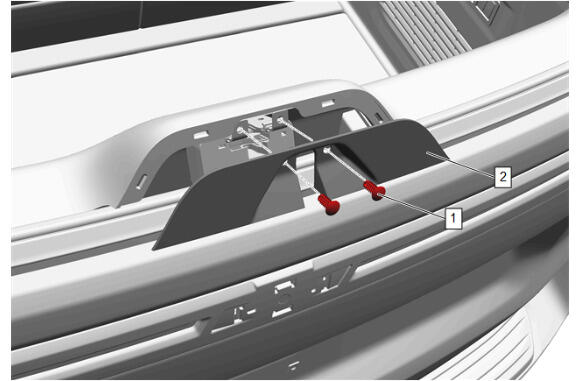

    GM5584398Courtesy of GENERAL MOTORS COMPANY
  11. Liftgate Trim Finish Panel Locator (1) - Install [2x]
  12. Close the liftgate window.
