Home >> Chevrolet >> 2021 >> Tahoe Z71 >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Repair Instructions >> Hood Strut Replacement >> Removal Procedure

Removal Procedure

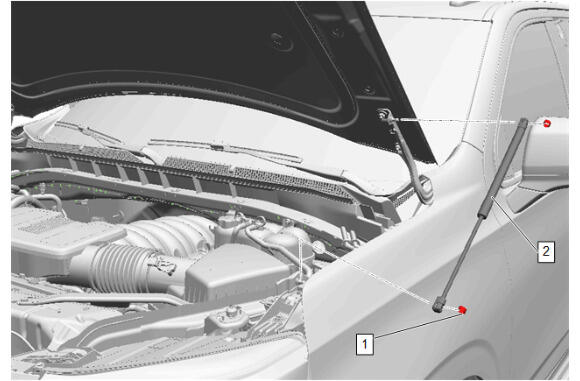

  1. Remove the 2 metal clips (1) at the ends of the hood strut (2).
    GM5575861Courtesy of GENERAL MOTORS COMPANY
  2. Hood Strut (2) - Remove
