Installation Procedure

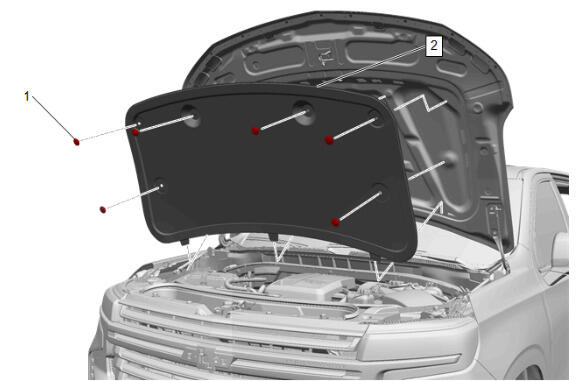

- With the aid of an assistant, install the hood (2).
- Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
- Adjust if necessary. Hood Adjustment
- Hood Insulator (2) - InstallNOTE:
Ensure the three lower integral tabs are secure to the hood.
- Hood Insulator Retainer (1) - Install [6x]
- Hood Side Weatherstrip (1) - Install [2x]

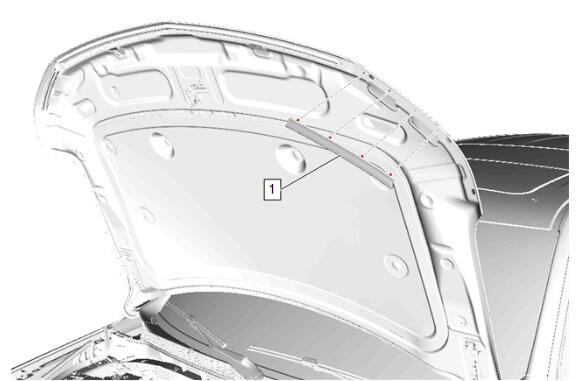

- Hood Front Edge Weatherstrip (1) - Install
CAUTION:
Refer to Fastener Caution .
