Installation Procedure

  1. Hood Hinge (2) - Install

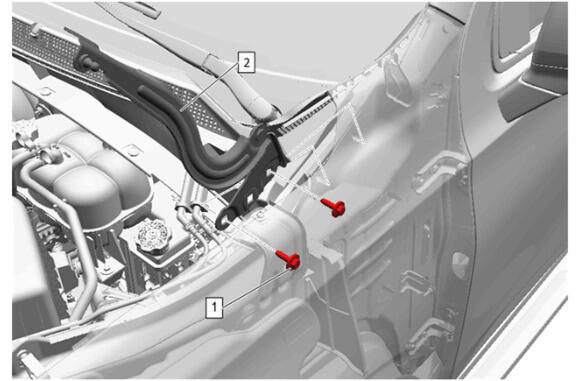

    GM5577699Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Hood Hinge Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Hood Strut (2) - Install
    GM5575861Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

  4. Install the 2 metal clips (1) to each end of the hood strut (2).
  5. With the aid of an assistant, install the hood (2).

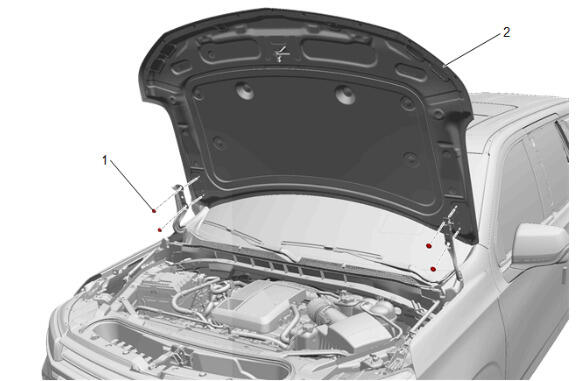

    GM5570512Courtesy of GENERAL MOTORS COMPANY
  6. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications
  7. Adjust if necessary. Hood Adjustment
