Removal Procedure
WARNING:
Refer to SIR Warning .
WARNING:
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.
- Disable the SIR system. SIR Disabling and Enabling
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation

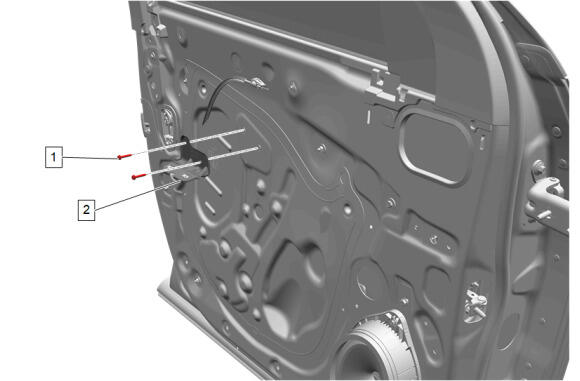

- Front Side Door Armrest Bracket Bolt (1) - Remove [2x]
- Front Side Door Pull Handle Bracket (2) - Remove

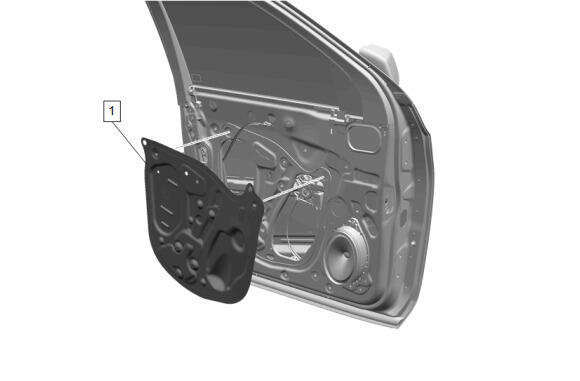

- Route front side door inside handle cable through hole in deflector (1).
- Front Side Door Water Deflector (1) - Remove

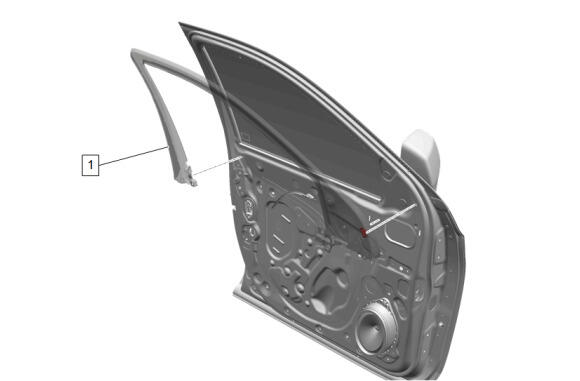

- Use flat-bladed plastic tool to release metal retaining clip from front corner of the front side door window garnish molding (1).
- Pull outward starting at the front and moving slowly rearward to remove the window garnish molding (1).
- Front Side Door Window Garnish Molding (1) - Remove
- Radio Front Side Door Speaker Bolt (1) - Remove
- Radio Front Side Door Speaker (2) - Remove
- Disconnect the electrical connector.

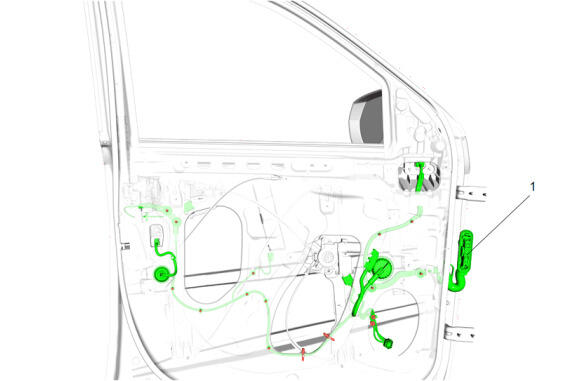

- Front Side Door Wiring Harness (1) - RemoveNOTE:
Typical wiring harness shown, individual harness may be different due to option content.
