Removal Procedure

  1. Front Side Door Check Link Bolt (1) - Remove
    GM5599057Courtesy of GENERAL MOTORS COMPANY
  2. Using the appropriate tool, remove the weatherstrip retainers from around the front side door.

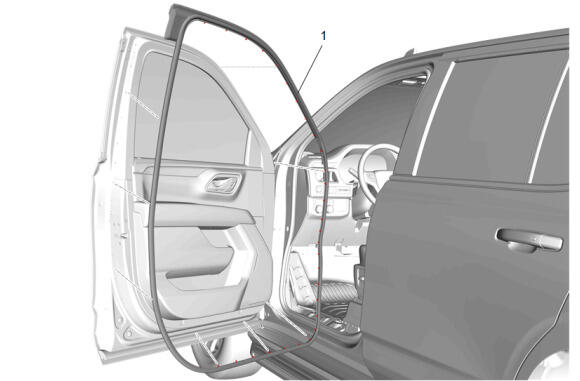

    GM5600643Courtesy of GENERAL MOTORS COMPANY
  3. Front Side Door Weatherstrip - Door Side (1) - Remove
