Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.

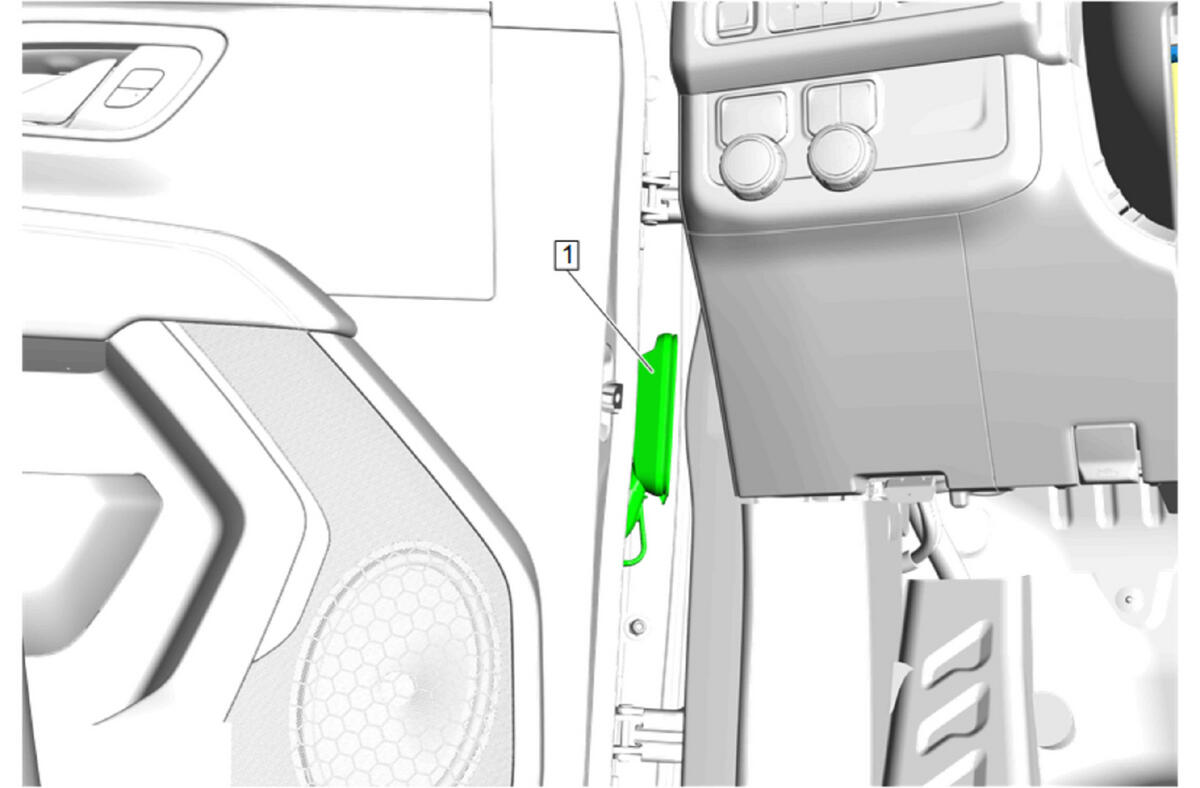

  2. Disconnect the electrical connector. (1)
    GM5519315Courtesy of GENERAL MOTORS COMPANY

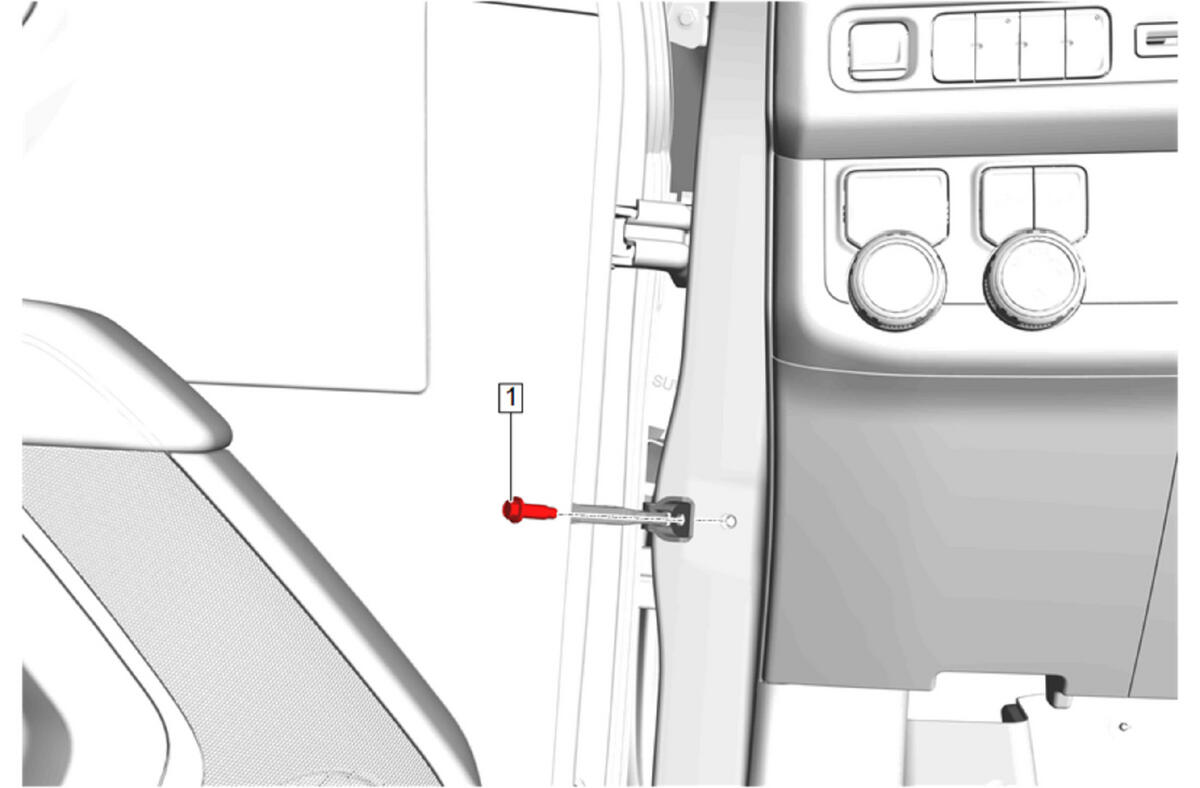

  3. Front Side Door Check Link Bolt (1) - Remove
    GM5519288Courtesy of GENERAL MOTORS COMPANY
  4. Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.
    GM5519568Courtesy of GENERAL MOTORS COMPANY

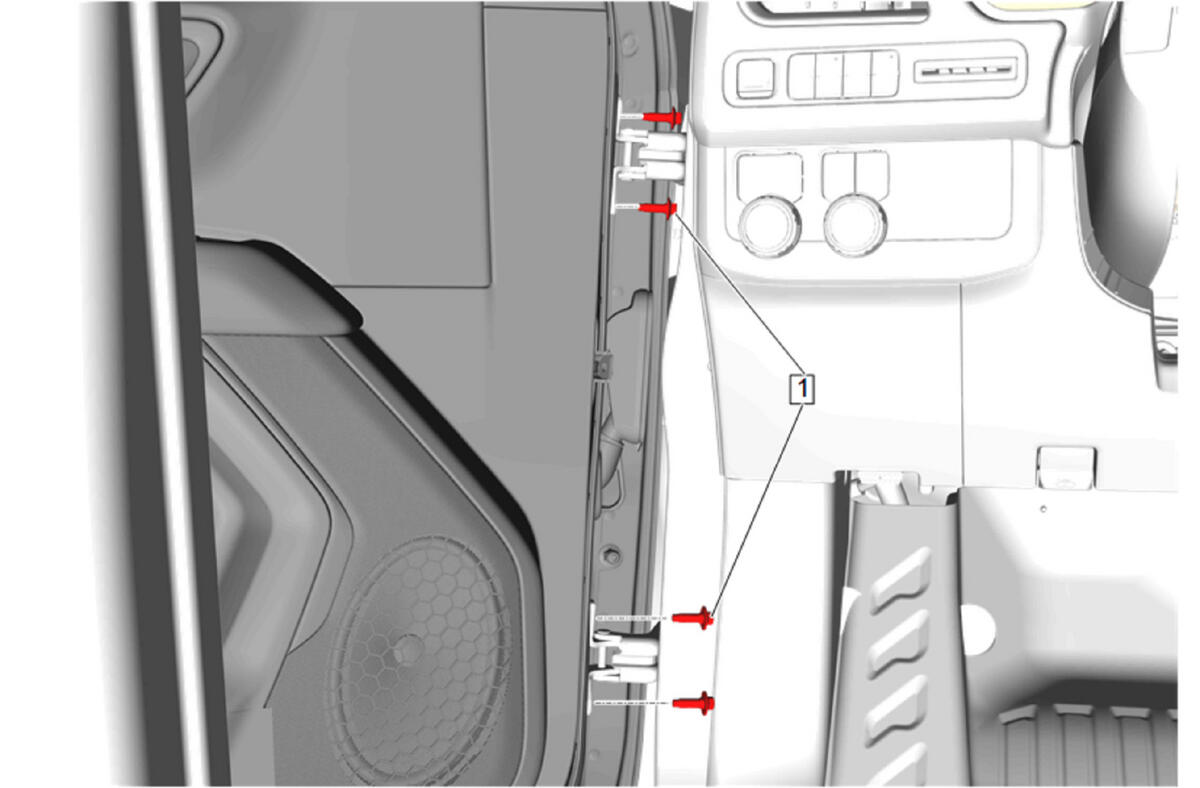

  5. Support the door before removing the hinge fastener.
  6. Front Side Door Hinge Bolt - Door Side (1) - Remove [4x]

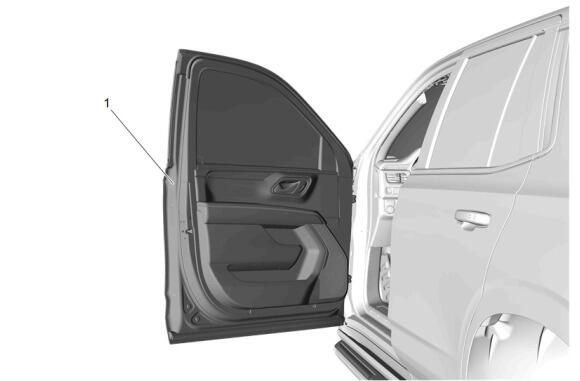

  7. With the aid of an assistant, remove the front side door. (1)
    GM5519561Courtesy of GENERAL MOTORS COMPANY
  8. Transfer components as necessary.
