Removal Procedure

  1. Open the front door.

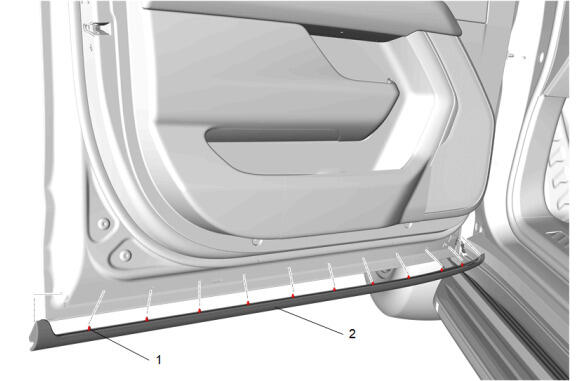

  2. Front Side Door Lower Auxiliary Weatherstrip Retainer (1) - Release [12x]
    GM5601141Courtesy of GENERAL MOTORS COMPANY
  3. Front Side Door Lower Auxiliary Weatherstrip (2) - Remove
