Removal Procedure

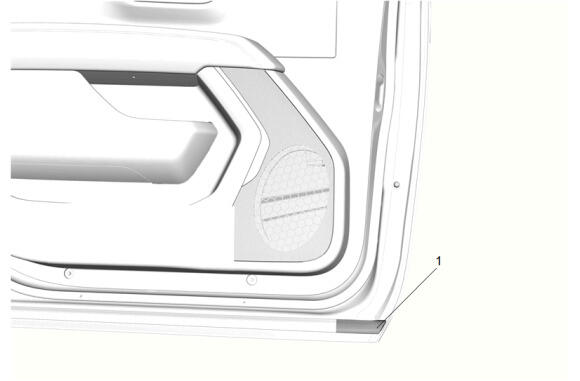

  1. Reposition the weatherstrip as necessary. (1)
    GM5600133Courtesy of GENERAL MOTORS COMPANY

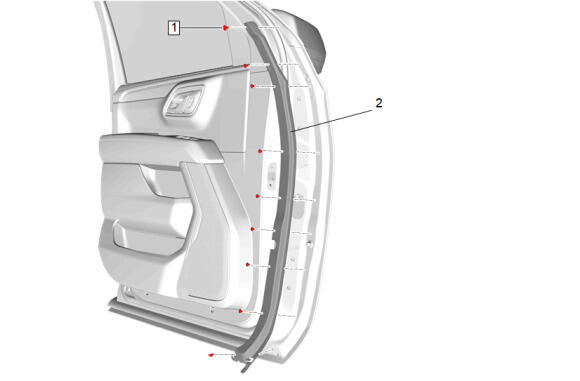

  2. Front Side Door Front Auxiliary Weatherstrip Retainer (1) - Remove [9x]
    GM5600137Courtesy of GENERAL MOTORS COMPANY
  3. Front Side Door Front Auxiliary Weatherstrip (2) - Remove
