Removal Procedure

  1. Dash Panel Outer Insulator Retainer (1) - Remove [3x]
    GM5571683Courtesy of GENERAL MOTORS COMPANY
  2. Radiator Surge Tank Bolt (2) - Remove
  3. Radiator Surge Tank (3) - Reposition

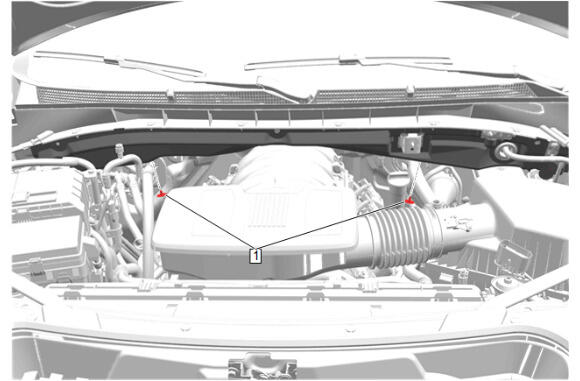

  4. Dash Panel Outer Insulator Retainer (1) - Remove [2x]
    GM5743742Courtesy of GENERAL MOTORS COMPANY

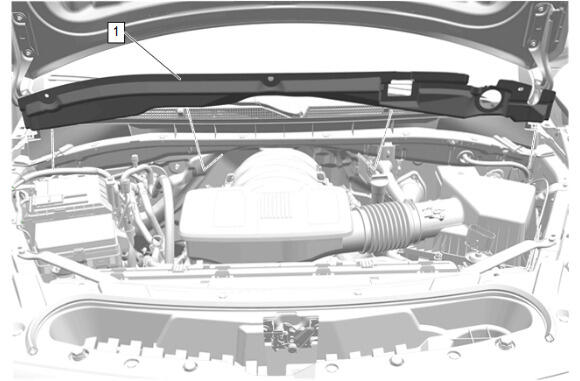

  5. Pull the dash panel outer insulator - upper (1) forward and upward to remove.
    GM5743743Courtesy of GENERAL MOTORS COMPANY
