Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Hood Latch Actuator Bolt (1) - Remove [2x]
Hood Secondary Latch Release Handle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Retainer (1) - Remove [9x]
Intake Air Splash Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

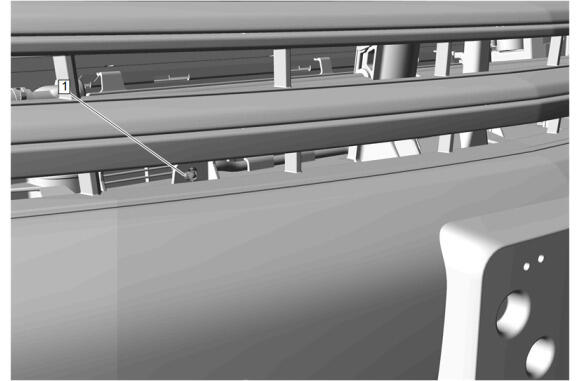

Use the appropriate tool to squeeze the 3 ambient air temperature sensor detents (1) to release the sensor from the front bumper shutter.
Courtesy of GENERAL MOTORS COMPANY

Ambient Air Temperature Sensor (1) - Remove
Disconnect the electrical connector. (2)
