Front Caster and Camber Adjustment

    NOTE:

    Caster measurements are now relative to ground.

  1. The caster and camber adjustments are made by rotating the front lower control arm bolt and cam in the slotted frame bracket in order to reposition the front lower control arm.
  2. Jounce the front bumper 3 times to allow the vehicle to return to normal height.
  3. NOTE:

    For an accurate reading, do not push or pull on the tires during the alignment process.

  4. For an accurate caster and camber measurement and adjustment, ensure that the vehicle is at curb height. Trim Height Inspection
  5. Measure the wheel alignment. Wheel Alignment Measurement

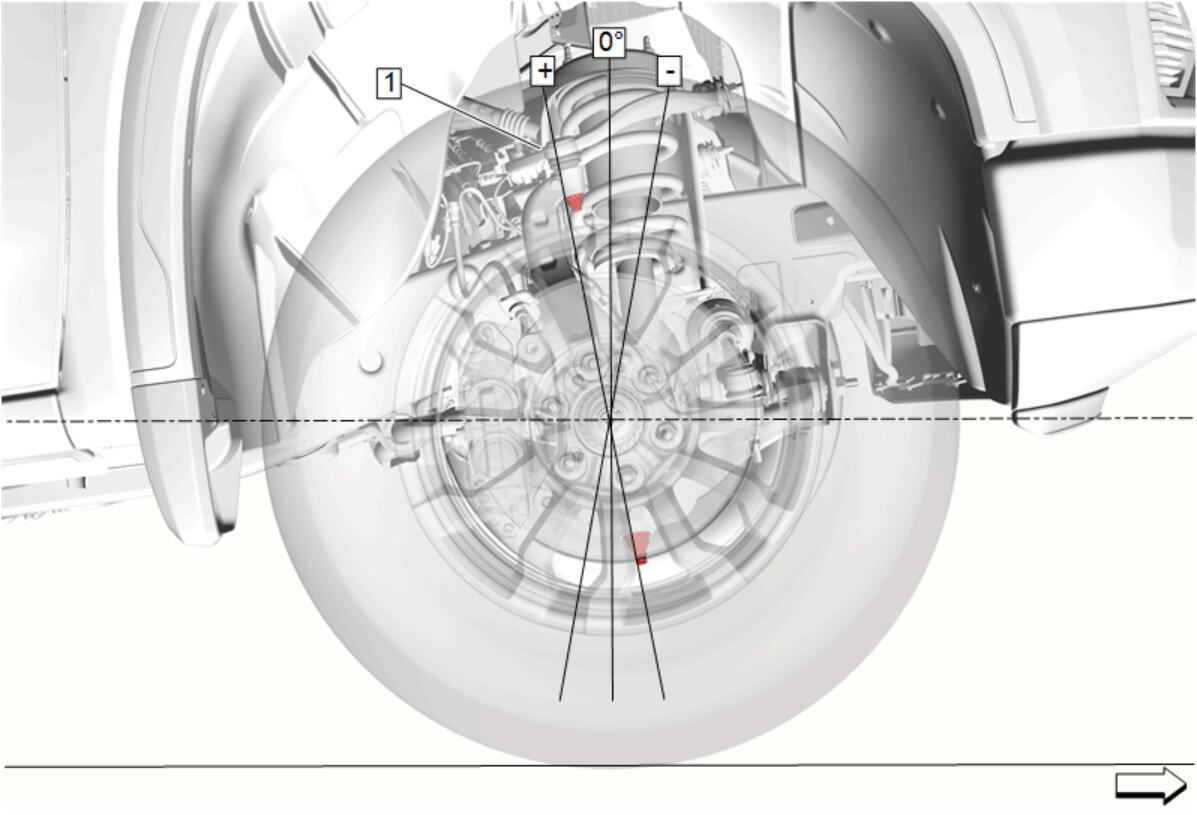

  6. Determine the positive caster angle (+) or negative caster angle (-).
    GM5051304Courtesy of GENERAL MOTORS COMPANY

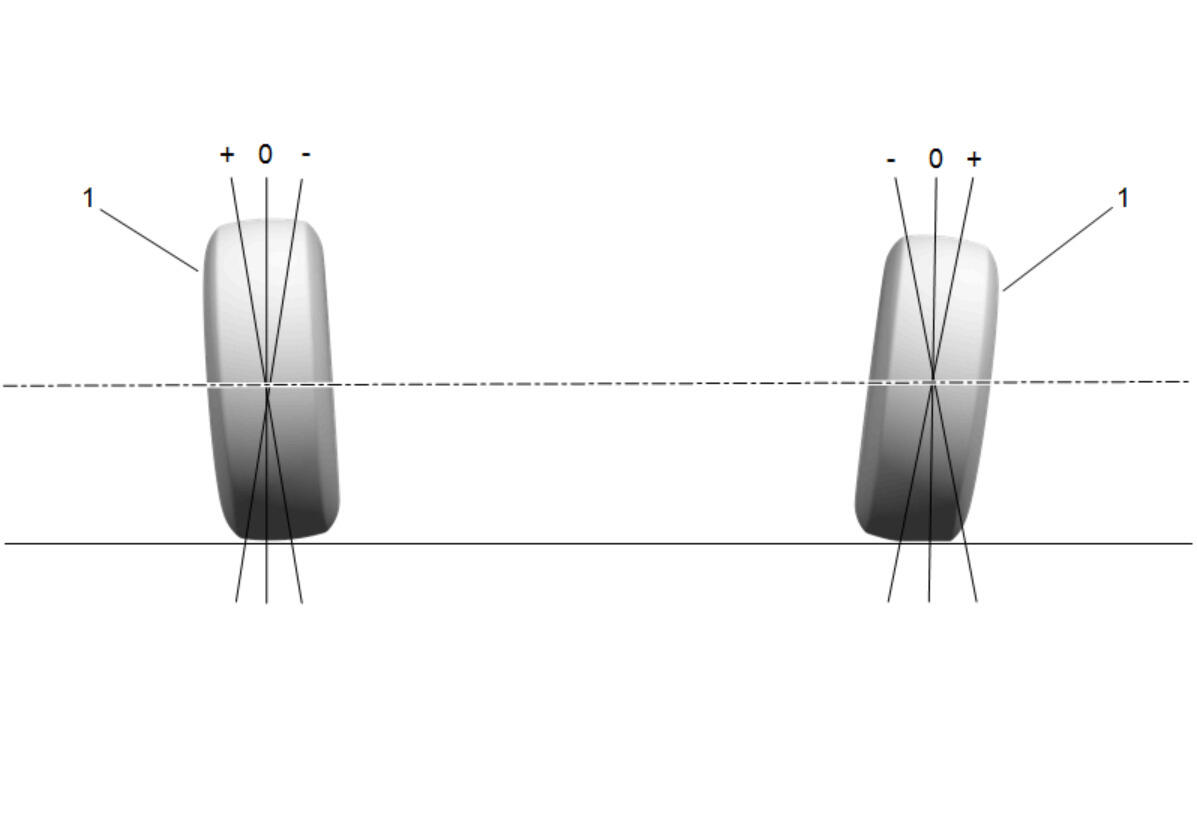

  7. Determine the positive camber (+) or negative camber (-) angle.
    GM5051185Courtesy of GENERAL MOTORS COMPANY

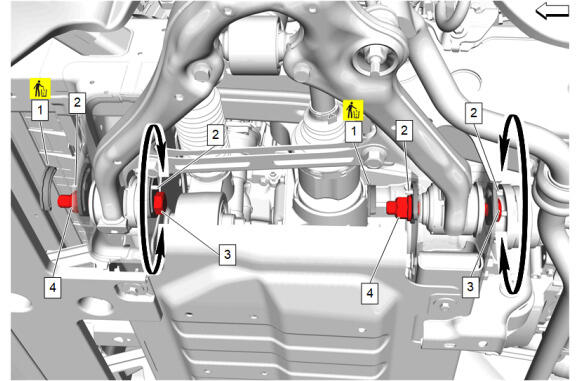

  8. If equipped, remove and DISCARD the 2 front lower control arm adjust cam retainers (1).
    GM5586349Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The front lower control arm adjust cam retainers (2) are for factory alignment purposes only and should NOT be reused.

  9. Front Lower Control Arm Nut (4) - Loosen [2x]
  10. NOTE:

    While performing a front end alignment it may be noticed that the frame pins (2) are missing. The frame pins serve as a pilot for the alignment cams when adjusting the front caster and camber.

  11. If a frame pin (2) is missing, a 1/4 inch dowel rod or a punch can be utilized as a temporary alignment aid to properly center the cam to the bracket, while making adjustments and torquing the front lower control arm nuts (4).
  12. Adjust the caster and the camber angle by turning the front lower control arm adjust bolts (3) until the specifications have been met. When the adjustments are complete, hold the front lower control arm adjust bolts (3) in order to ensure the position does not change while tightening the front lower control arm nuts. Fastener Specifications
  13. Verify that the caster and the camber readings are still within specifications. Wheel Alignment Specifications
  14. When the caster and camber are within specifications, adjust the toe.

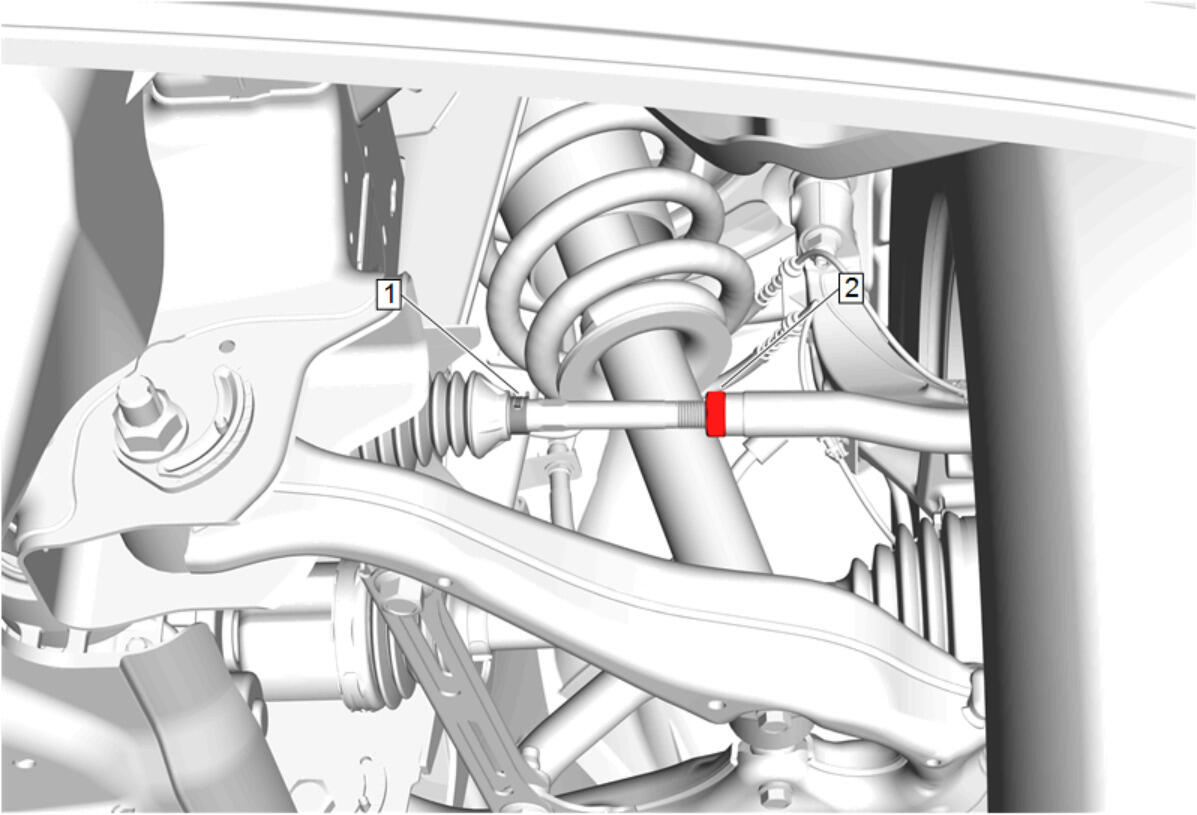

  15. Steering Gear Boot Clamp (1) - Disengage
    GM5021904Courtesy of GENERAL MOTORS COMPANY
  16. Steering Linkage Inner Tie Rod Nut (2) - Loosen

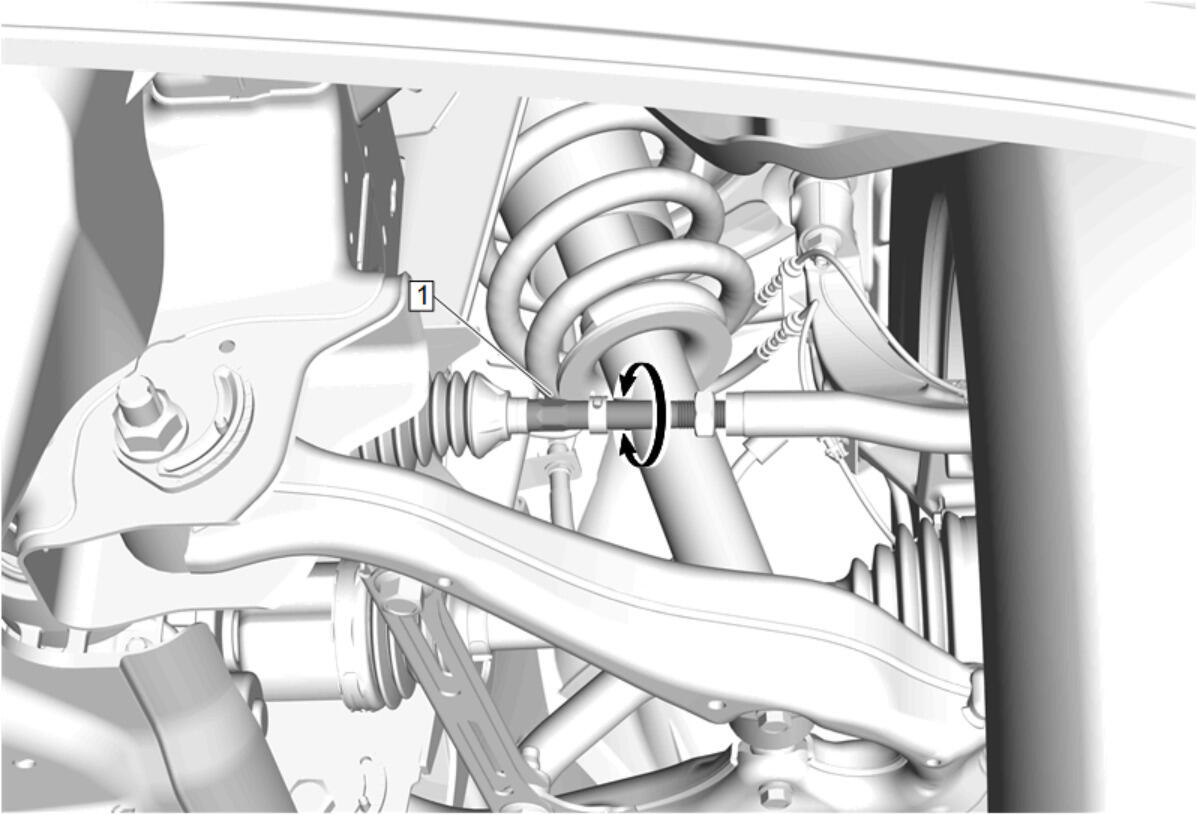

  17. Rotate the inner tie rod (1) as necessary to achieve the required toe specification setting. Wheel Alignment Specifications
    GM5021906Courtesy of GENERAL MOTORS COMPANY
  18. Steering Linkage Inner Tie Rod Nut (2) - Tighten Fastener Specifications
    GM5021904Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  19. Steering Gear Boot Clamp (1) - Engage
  20. Check the toe setting after tightening.
  21. Re-adjust the toe setting if necessary.
