Installation Procedure

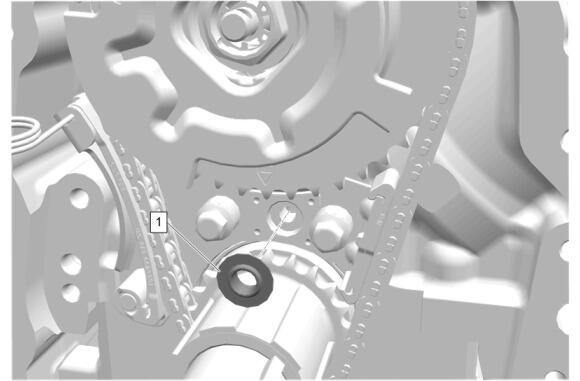

Timing Chain Tensioner Seal (1) - Install
Oil Pump (1) - Install

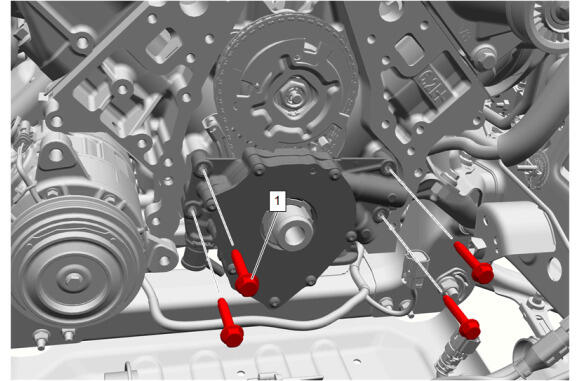

Oil Pump Bolt (1) - Install and hand tighten [4x]
- Oil Pump Bolt (1) - Tighten in sequence [4x] - Fastener Specifications
- NOTE:
- Install and align the front cover within 10 minutes of applying the sealer.
- Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover (1). Adhesives, Fluids, Lubricants, and Sealers
- Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover (2). Adhesives, Fluids, Lubricants, and Sealers
Engine Front Cover (2) - Install
- Engine Front Cover Bolt (1, 3) - Install and hand tighten [10x]
- Engine Front Cover Bolt (1, 3) - Tighten in sequence [10x] - Fastener Specifications
- NOTE:
If the engine front cover is reused, the crankshaft front oil seal (3) must be replaced.
If the engine front cover is reused, perform the following steps:
- For proper orientation, note the installation direction of the crankshaft front oil seal (3). The crankshaft front oil seal is a reverse-lip design. Install with "THIS SIDE OUT" displayed as shown.
- Do NOT lubricate the crankshaft front oil seal sealing surface.
- Install the crankshaft front oil seal (3) with "THIS SIDE OUT" facing away from the engine.
- Install the NEW crankshaft front oil seal (3) to the EN-51091 Crankshaft Front Oil Seal Installer (2).
- Install the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-51091 Crankshaft Front Oil Seal Installer (2) into the crankshaft.
- Rotate the EN-51091 Crankshaft Front Oil Seal Installer (2) clockwise until the NEW crankshaft front oil seal (3) enters the engine front cover and seats into the bottom of the engine front cover.
- Remove the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-51091 Crankshaft Front Oil Seal Installer (2) from the crankshaft and engine front cover.
- Inspect the crankshaft front oil seal (3) for proper installation. The crankshaft front oil seal should be installed evenly and completely into the engine front cover.
NOTE: Water Pump Gasket (2) - Install NEW [2x]
- Water Pump (1) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Water Pump Housing Bolt (1) - Install and hand tighten [6x]
- Water Pump Housing Bolt (1) - Tighten in sequence [6x] - Fastener Specifications
Engine Coolant Temperature Sensor Electrical Connector (1) - Connect
Radiator Inlet Hose (3) @Water Pump - Install
- Engine Coolant Air Bleed Hose (2) @Water Pump - Install
- Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Radiator Outlet Hose (2) @Water Pump - Install
- Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Heater Water Auxiliary Pump Hose (3) @Water Pump - Install
- Heater Inlet Hose (2) @Water Pump - Install
- Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Air Conditioning Compressor (1) - Install
Air Conditioning Compressor Bolt (1) - Loosely install
- Air Conditioning Compressor Stud (3) - Install and tighten - Fastener Specifications
- Air Conditioning Compressor Bolt (1) - Tighten - Fastener Specifications
- Air Conditioning Compressor Nut (2) - Install and tighten - Fastener Specifications

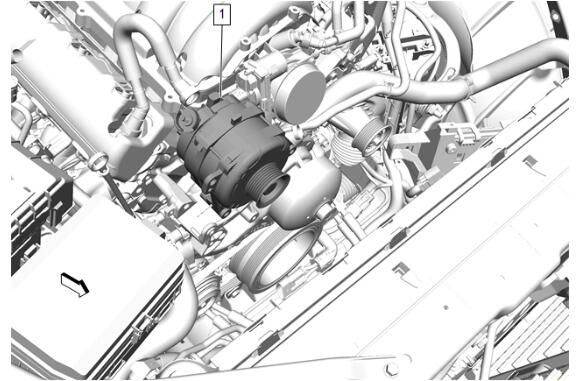

Generator (1) - Install
Generator Bolt (1) - Install and tighten [2x] - Fastener Specifications
Engine Cooler Fan (1) @Engine Radiator - Install
Engine Coolant Fan Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Transmission Fluid Cooler Pipe Clip (1) - Secure
Transmission Fluid Cooler Pipe Clip (2) - Install [2x]
- Transmission Fluid Cooler Pipe Bolt (1) - Install and tighten - Fastener Specifications
Engine Oil Cooler Hose (1) @Engine Radiator - Install [2x]
- Engine Oil Cooler Pipe Bracket Bolt (3) - Install and tighten - Fastener Specifications
- Engine Oil Cooler Retainer (2) - Install [2x]
Engine Oil Cooler Hose Clip (1) - Secure
Position the wiring harness. (3)
- Electrical Connector (1) - Connect
- Wiring Harness Retainer (2) - Install [2x]
Position the wiring harness. (2)
- Electrical Connector (3) - Connect
- Wiring Harness Retainer (1) - Install [2x]
Radiator Inlet Hose (3) @Engine Radiator - Install
- Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose Clip (2) - Install
Radiator Surge Tank Outlet Hose (3) - Move into position
- Radiator Surge Tank Outlet Hose Clip (2) - Install [2x]
Apply a 3 mm (0.118 in) bead of RTV sealant on the oil pan (1). Adhesives, Fluids, Lubricants, and Sealers
- Apply a 5 mm (0.197 in) bead of RTV sealant on the oil pan (2). Adhesives, Fluids, Lubricants, and Sealers
Oil Pan High Pressure Port Seal (2) - Install NEW [2x]
- Oil Pan Front Seal (3) - Install NEW
Oil Pan (1) - Install
- Oil Pan Bolt (2, 3) - Install and hand tighten [16x]
- Oil Pan Bolt (2, 3) - Tighten in sequence [16x] - Fastener Specifications
Electrical Connector (1) - Connect
Crankshaft Balancer (1) - Loosely install
Install the EN-41478-A Crankshaft Front Oil Seal Installer (3) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2) to the crankshaft.
- Using the EN-41665-A Crankshaft Balancer and Sprocket Installer (2) properly seat the crankshaft balancer (1).
- Remove the EN-41478-A Crankshaft Front Oil Seal Installer (3) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2).
- CAUTION:
Refer to Torque-to-Yield Fastener Caution

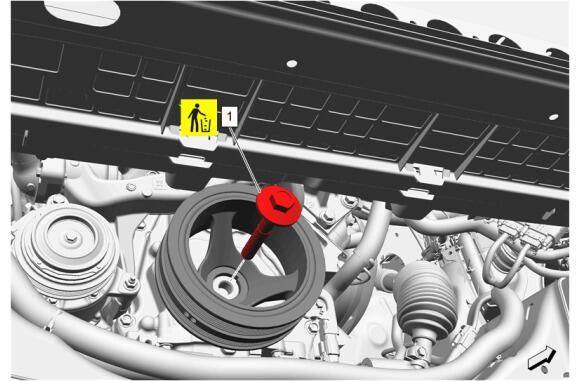

Crankshaft Balancer Bolt (1) - Install NEW and tighten - Fastener Specifications
Engine Wiring Harness (3) - Install
- Engine Wiring Harness Retainer (2) - Install
- Engine Wiring Harness Ground Stud (1) - Install and tighten [2x] - Ground Repair
Install and tighten the transmission fluid auxiliary cooler pipe bracket nut (1). Fastener Specifications
- NOTE:
Components removed in graphic to better illustrate service parts.
Transmission Fluid Cooler Pipe Clip Bracket (2) @Oil Pan - Install
- Transmission Fluid Cooler Pipe Clip Bolt (1) @Oil Pan - Install and tighten - Fastener Specifications
Electrical Connector@Knock Sensor (4) - Connect
Oil Filter (1) - Install and tighten - Fastener Specifications
Transmission Bolt (1) - Install and tighten [2x] - Fastener Specifications
Engine Oil Cooler Gasket (2) - Install NEW
- Engine Oil Cooler Hose (1) @Oil Pan - Install
Engine Oil Cooler Adapter Bolt (1) - Install and tighten [2x] - Fastener Specifications
Electrical Connector (1) @Engine Oil Pressure Sensor - Connect
- Wiring Harness Retainer (2) @Engine Oil Cooler Hose - Install
Engine Oil Pressure Sensor Sleeve (1) - Install
Engine Oil Cooler Hose Bracket Nut (1) - Install and tighten - Fastener Specifications
Lubricate the oil level indicator seal (2) with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
- Oil Level Indicator Seal (2) - Install NEW
- Oil Level Indicator Tube (1) @Oil Pan - Install
Connect the wiring harness connectors (3) and retainers as needed.
- Engine Wiring Harness Retainer (1) @Oil Level Indicator Tube (2) - Connect
Remove the M10-1.5 x 120mm (3) and the M10-1.5 x 45mm (2) bolts.
- Remove the EN-42386 Flywheel Holding Tool (2)
Torque Converter Cover- Right Side (2) - Install
- Torque Converter Cover Bolt- Right Side (1) - Install and tighten - Fastener Specifications
Torque Converter Cover- Left Side (2) - Install
- Torque Converter Cover Bolt- Left Side (1) - Install and tighten - Fastener Specifications
Starter (1) - Install
Electrical Connector (3) - Connect
- Protective Sleeve (4) - Install
- Starter Solenoid Cable (1) - Install
- Starter Solenoid Cable Nut (2) - Install and tighten - Fastener Specifications
Starter Bolt (1) - Install and tighten [2x] - Fastener Specifications
Starter Solenoid Cable (2) - Install
- Battery Negative Cable Ground Bolt (1) - Install and tighten - Fastener Specifications
Starter Heat Shield (2) - Install
- Starter Heat Shield Bolt (1) - Install and tighten - Fastener Specifications
Starter Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
Drivetrain and Front Suspension Frame Front Crossmember (1) - Install
Drivetrain and Front Suspension Frame Reinforcement Bolt (2) - Install [4x]
- Drivetrain and Front Suspension Frame Reinforcement Nut (1) - Install and tighten [4x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Install the heater coolant pump and heater water auxiliary pump bracket (2) as assembly.
- Heater Water Auxiliary Pump Bolt (1) - Install and tighten - Fastener Specifications
- Electrical Connector@Heater Coolant Pump (2) - Connect
- NOTE:
Support the front stabilizer shaft.
- Front Stabilizer Shaft (3) - Install
- Front Stabilizer Shaft Clamp (2) - Install [2x]
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Stabilizer Shaft Bolt (1) - Install and tighten [4x] - Fastener Specifications
Oil Level Indicator Tube Bolt (1) - Install and tighten - Fastener Specifications
Engine Wiring Harness Fuse Block Bracket (3) - Install
- Retaining Tab (1) - Engage
- Engine Wiring Harness Fuse Block Bracket Bolt (2) - Tighten [2x] - Fastener Specifications
Electrical Connector (1) - Install [4x]
Engine Wiring Harness Junction Block (3) - Install
- Retaining Tab (1) - Engage [4x]
- Engine Wiring Harness Junction Block Bolt (2) - Tighten [4x] - Fastener Specifications
Starter Solenoid Cable (4) - Install
- Battery Positive Cable Nut (3) - Install and tighten - Fastener Specifications
- Engine Wiring Harness Junction Block Cover (2) - Install
- Retaining Tab (1) - Engage [2x]
Starter Solenoid Cable (2) - Install
- Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
- Electrical Connector (3) - Connect
- NOTE:
The OEM replacement stretchy accessory drive auxiliary belt (1) is packaged with a disposable installation tool and installation instructions.
Install the accessory drive auxiliary belt (1) following the instructions included with the accessory drive auxiliary belt.
- Inspect the accessory drive auxiliary belt (1) for proper installation and alignment.
Rotate the crankshaft balancer (1) an additional 360 degrees to ensure proper accessory drive auxiliary belt installation.
Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).
Install the EN-51767-2 Stretchy Belt Installer (1) onto the crankshaft balancer.
Position the accessory drive primary belt (2) on the crankshaft balancer.
- Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
- Remove the EN-51767-2 Stretchy Belt Installer (1) from the crankshaft balancer.
Inspect the accessory drive primary belt (1) for proper installation and alignment.
Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.
Air Cleaner Outlet Duct (3) - Install
- Air Cleaner Outlet Duct Clamp (2) - Tighten [2x] - Fastener Specifications
- Positive Crankcase Ventilation Fresh Air Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
Air Cleaner Outlet Duct Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Install engine wiring harness to air cleaner outlet duct bracket.
Underbody Skid Shield (3) - Install
- Underbody Splash Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
Underbody Splash Shield (1) - Install
Underbody Splash Shield Bolt (1) - Install and tighten [4x]
- Underbody Splash Shield Bolt (2) - Install and tighten [4x] - Fastener Specifications
- Lower the vehicle.
- Fill the engine oil to the proper level with NEW engine oil.
Install the oil level indicator. (1)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
- Fill the cooling system. Cooling System Draining and Filling (GE 47716 L84, L87) , or Cooling System Draining and Filling (Static L84, L87)
- Start the engine and check for coolant leaks.
- Check for oil leaks.
