Fastener Specifications

GM5600046Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Back Body Opening Side Gutter

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Back Body Opening Side Molding Bolt - - 2.5 N.m (22 lb in) Back Body Opening Side Gutter Replacement (Manual) Back Body Opening Side Gutter Replacement (Power)
GM5536253Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Diagonal Brace Bolt@Upper Tie Bar [2x] - Yes 22 N.m (16 lb ft) Front End Sheet Metal Diagonal Brace Replacement (Radiator) Front End Sheet Metal Diagonal Brace Replacement (Upper Tie Bar)
2 Hood Hinge Bolt [2x] - - 32 N.m (24 lb ft) Hood Hinge Replacement
3 Hood Hinge Nut [2x] - - 22 N.m (16 lb ft) Hood Replacement
4 Plenum Front Panel Bolt [5x] - - 9 N.m (80 lb in) Plenum Front Panel Outer Reinforcement Replacement
5 Plenum Front Panel Nut [6x] - - 9 N.m (80 lb in) Plenum Front Panel Outer Reinforcement Replacement
GM5606072Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front End Upper Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Upper Tie Bar Bolt [4x] - - 22 N.m (16 lb ft) Front End Upper Tie Bar Removal and Installation
2 Front End Upper Tie Bar Bolt@Headlamp Bracket [2x] - - 9 N.m (80 lb in) Front End Upper Tie Bar Removal and Installation
GM5536281Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Fender

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Bolt [8x] - - 9 N.m (80 lb in) Front Fender Replacement (B3L - Assist Step) Front Fender Replacement (BVE - Assist Step)
2 Front Fender Nut - - 9 N.m (80 lb in) Front Fender Replacement (B3L - Assist Step) Front Fender Replacement (BVE - Assist Step)
GM5607862Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Check Link Bolt - - 22 N.m (16 lb ft) Front Side Door Check Link Replacement
1 Front Side Door Check Link Nut - - 9 N.m (80 lb in) Front Side Door Check Link Replacement
GM5600915Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement
2 Front Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement
GM5536294Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Hood Latch and Diagonal Brace

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front End Sheet Metal Diagonal Brace Bolt@Radiator [2x] - Yes 58 N.m (43 lb ft) Front End Sheet Metal Diagonal Brace Replacement (Radiator) Front End Sheet Metal Diagonal Brace Replacement (Upper Tie Bar)
2 Hood Latch Actuator Bolt [2x] - - 2.5 N.m (22 lb in) Hood Secondary Latch Release Handle Replacement
3 Hood Primary and Secondary Latch Bolt [2x] - - 22 N.m (16 lb ft) Hood Primary and Secondary Latch Replacement
GM5581879Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Liftgate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Hinge Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Hinge Replacement (without TC2) Liftgate Hinge Replacement (with TC2)
2 Liftgate Hinge Nut [2x] - - 22 N.m (16 lb ft) Liftgate Hinge Replacement (without TC2) Liftgate Hinge Replacement (with TC2)

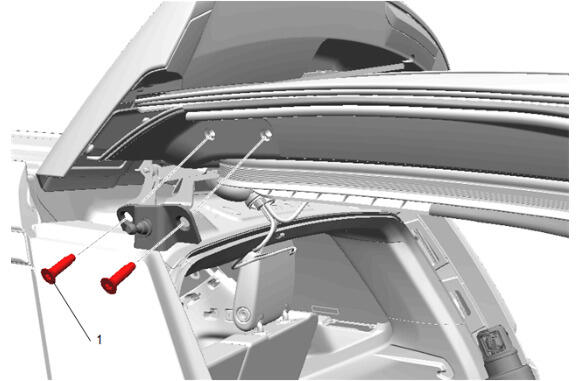

GM5582433Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Liftgate Strut Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Strut Bracket Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Strut Bracket Replacement
GM5605274Courtesy of GENERAL MOTORS COMPANY
Rear Side Door

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
2 Rear Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
GM5607864Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Check Link Bolt - - 22 N.m (16 lb ft) Rear Side Door Check Link Replacement
2 Rear Side Door Check Link Door Side Nut [2x] - - 9 N.m (80 lb in) Rear Side Door Check Link Replacement
