Removal Procedure

  1. Lower the headlining trim panel (1) enough to gain access to the liftgate electrical connectors and washer hose.
    GM5590450Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the washer hose and electrical connector and retainers..
    GM5645504Courtesy of GENERAL MOTORS COMPANY
  3. Washer Hose Grommet (1) - Remove
  4. Liftgate Wiring Harness Grommet (2) - Remove
  5. Liftgate Weatherstrip (1) - Reposition
    GM5582514Courtesy of GENERAL MOTORS COMPANY
  6. Remove the 2 metal clips at the ends of the liftgate power assist actuator (1).
    GM5582168Courtesy of GENERAL MOTORS COMPANY
  7. Liftgate Power Assist Actuator (1) - Reposition
  8. Release the 2 metal clips at each end of the liftgate strut (1).

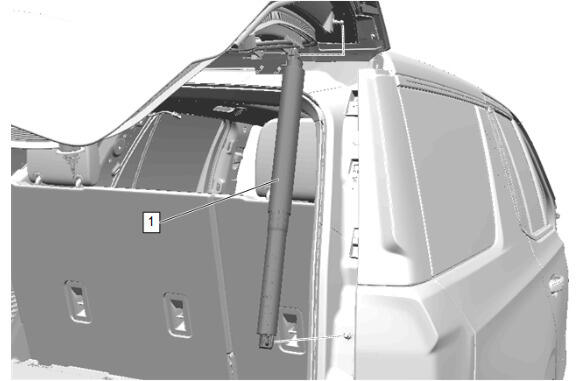

    GM5581806Courtesy of GENERAL MOTORS COMPANY
  9. Liftgate Strut (1) - Remove
  10. Liftgate Hinge Bolt (1) - Remove [4x]

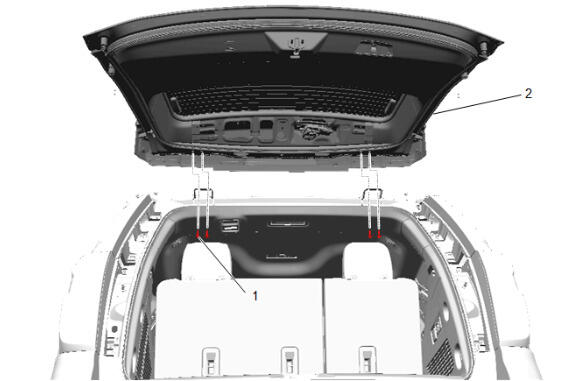

    GM5581804Courtesy of GENERAL MOTORS COMPANY
  11. With the aid of an assistant, remove the liftgate. (2)
  12. Transfer components as necessary.
