Ambient Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .

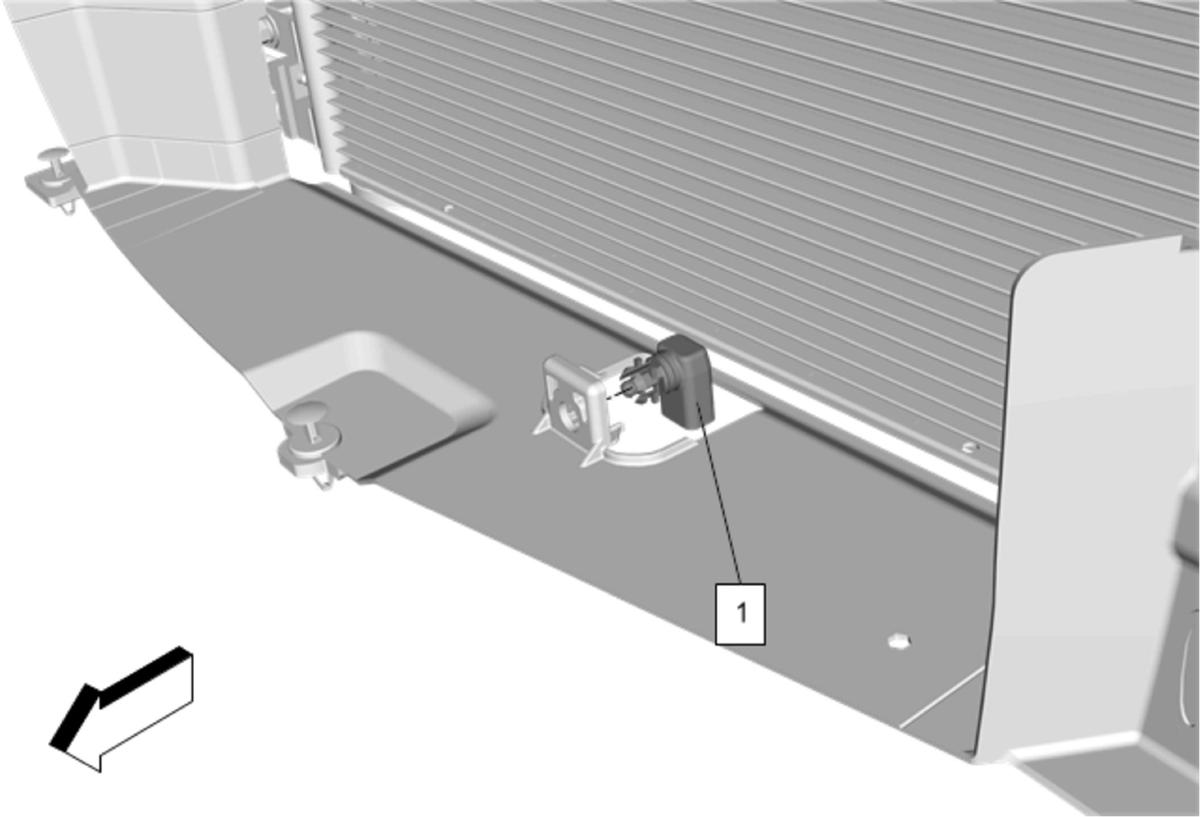

1	Ambient Air Temperature Gauge Sensor Procedure Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the fascia. Disconnect ambient air temperature sensor electrical connector.

Call out

Component Name

Preliminary Procedure
Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .

Ambient Air Temperature Gauge Sensor

Procedure

Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the fascia.
Disconnect ambient air temperature sensor electrical connector.
