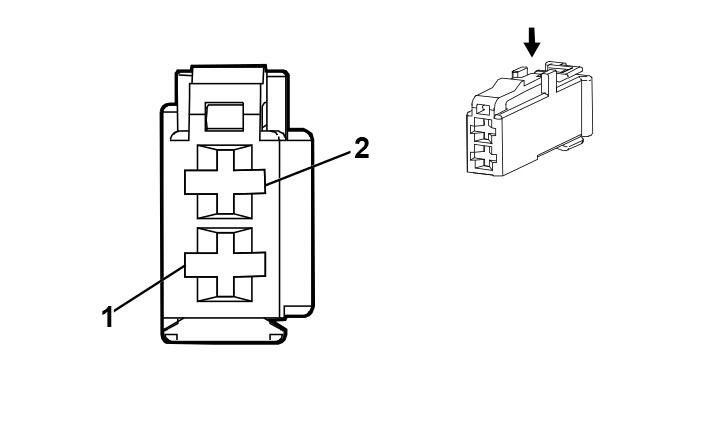

T4M Radio Antenna
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 24414864
- Service Connector: 19368734
- Description: 2 - Way F 1.2 Timer Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
6002 |
Coaxial Antenna Diversity Signal |
I |
- |
| 2 |
- |
BK |
3292 |
Coaxial Antenna Diversity Signal 3 |
I |
- |
