Front Bumper Shutter Replacement

Courtesy of GENERAL MOTORS COMPANY

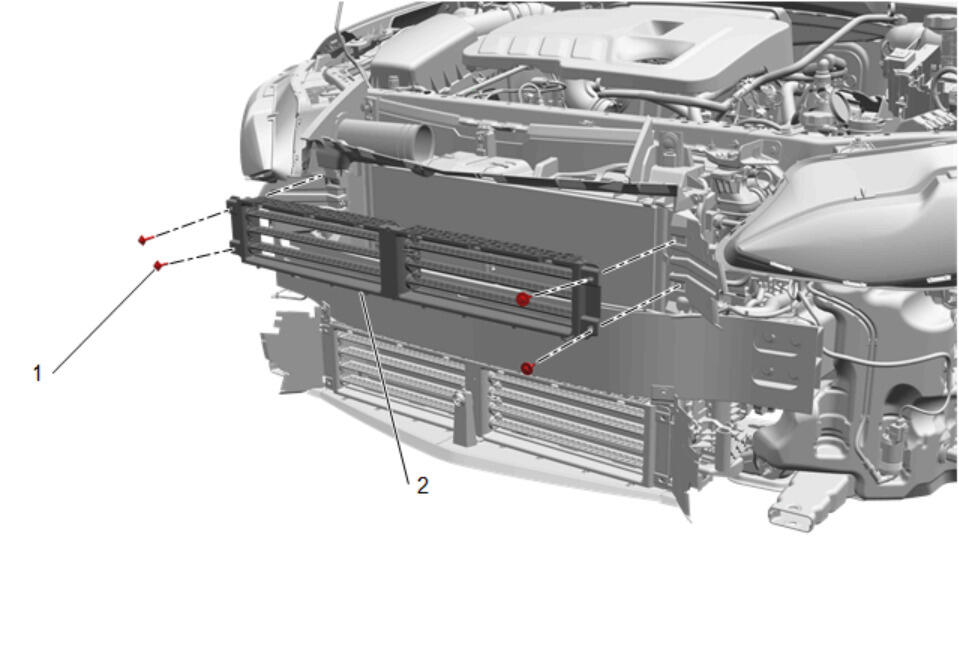

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Shutter Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Shutter Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Front Bumper Shutter Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Shutter

Procedure
