Front Bumper Lower Shutter Replacement

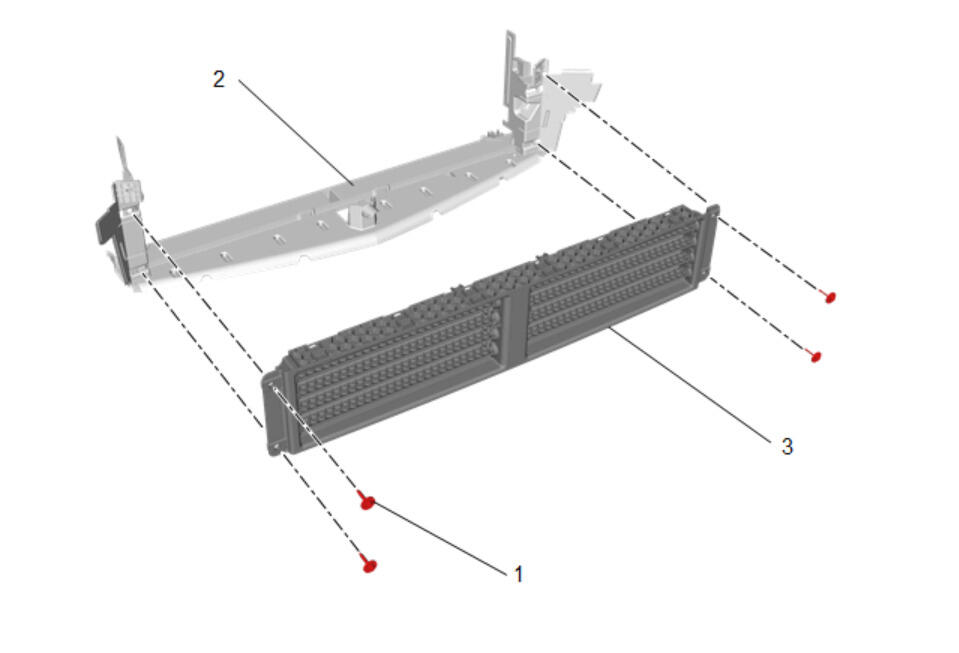

GM5118341Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator Air Lower Baffle and Deflector Replacement
1 Front Bumper Shutter Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radiator Air Lower Deflector
3 Front Bumper Lower Shutter

Procedure

  1. Release the retaining tabs.
  2. Transfer components as necessary.
