Front Bumper Lower Fascia Replacement

Courtesy of GENERAL MOTORS COMPANY

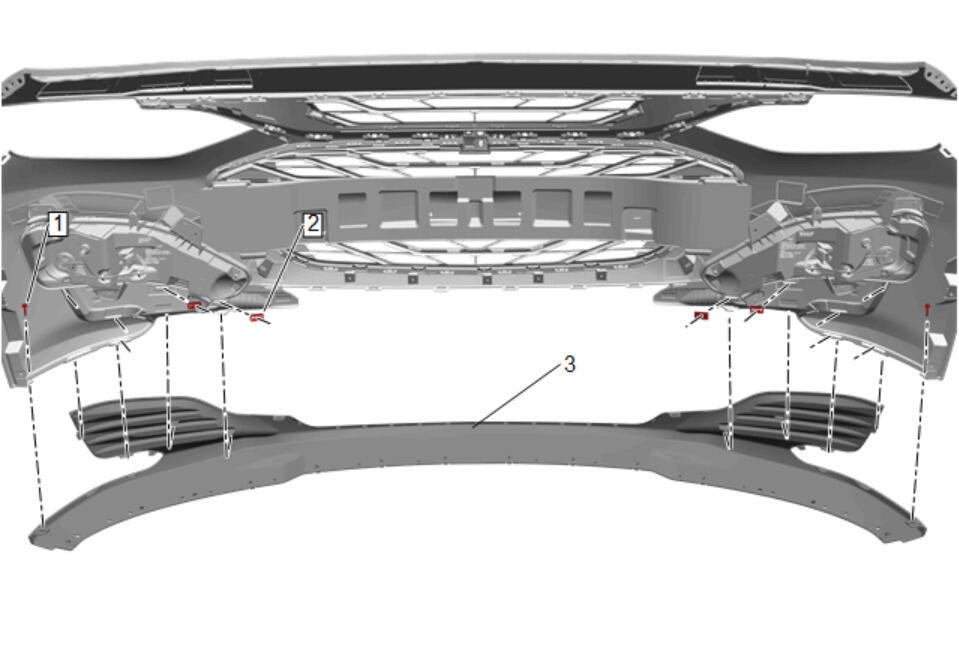

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Center Air Deflector Replacement Front Bumper Fascia Lower Stiffener Replacement
1	Front Bumper Lower Fascia Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Lower Fascia Clip [4x]
3	Front Bumper Lower Fascia Procedure Place the front bumper fascia down on a clean protected surface. Carefully depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia. Transfer components as necessary.
