Front Bumper Impact Bar Replacement

Courtesy of GENERAL MOTORS COMPANY

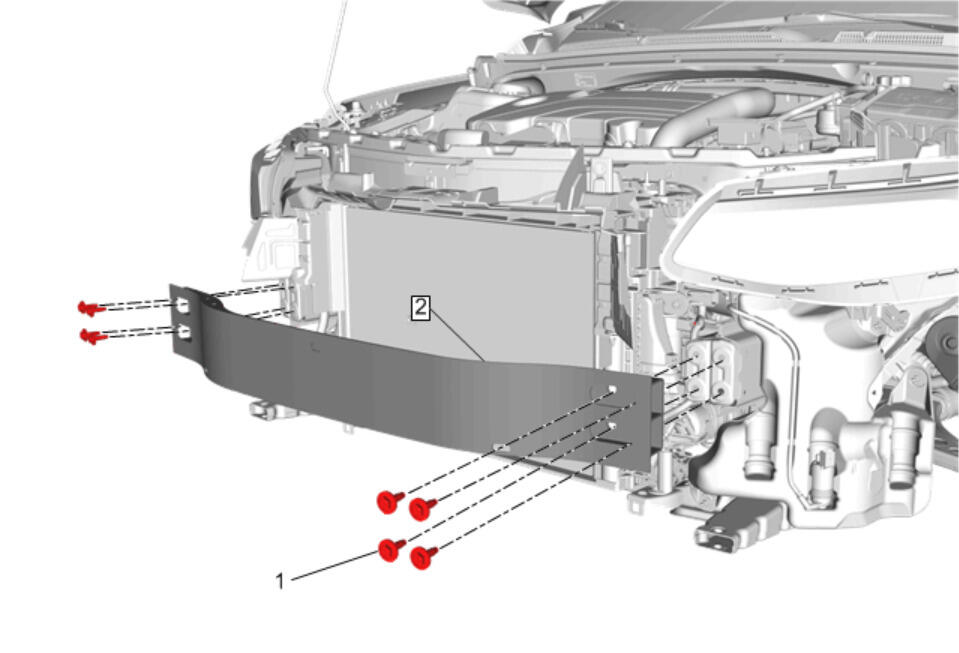

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Remove the radiator air upper deflector retainers. Radiator Air Upper Baffle and Deflector Replacement Remove the radiator air lower deflector bolts. Radiator Air Lower Baffle and Deflector Replacement Remove the lower front bumper fascia support bolt. Front Bumper Fascia Support Brace Replacement
1	Front Bumper Impact Bar Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 32 N.m (24 lb ft)
2	Front Bumper Impact Bar Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Bumper Impact Bar Bolt [8x]

CAUTION:

Tighten
32 N.m (24 lb ft)

Front Bumper Impact Bar

Procedure
