Installation Procedure

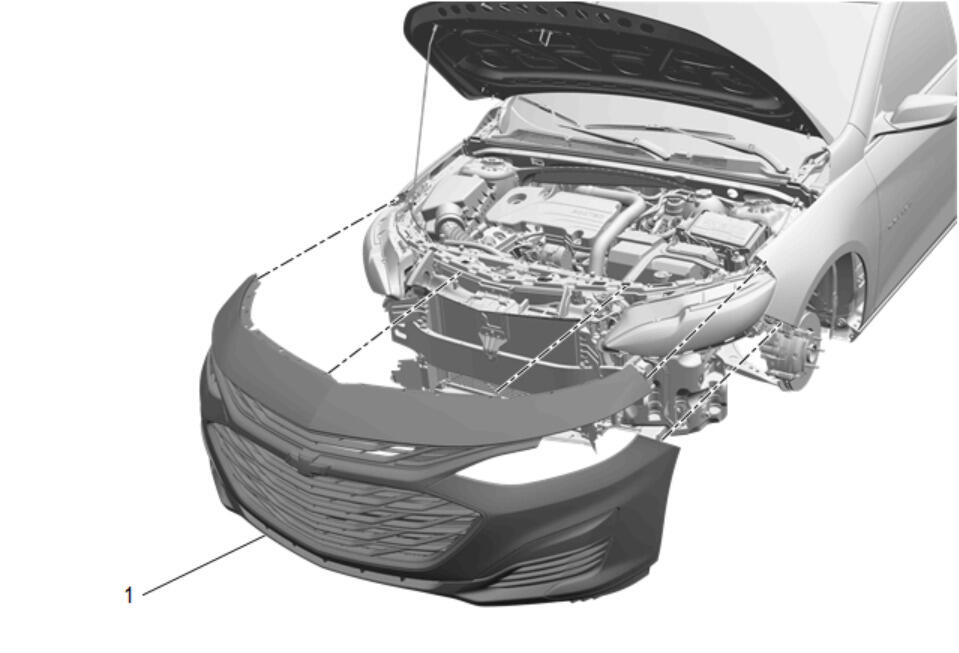

GM5107622Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, install the fascia. (1)
  2. Connect the electrical connectors.

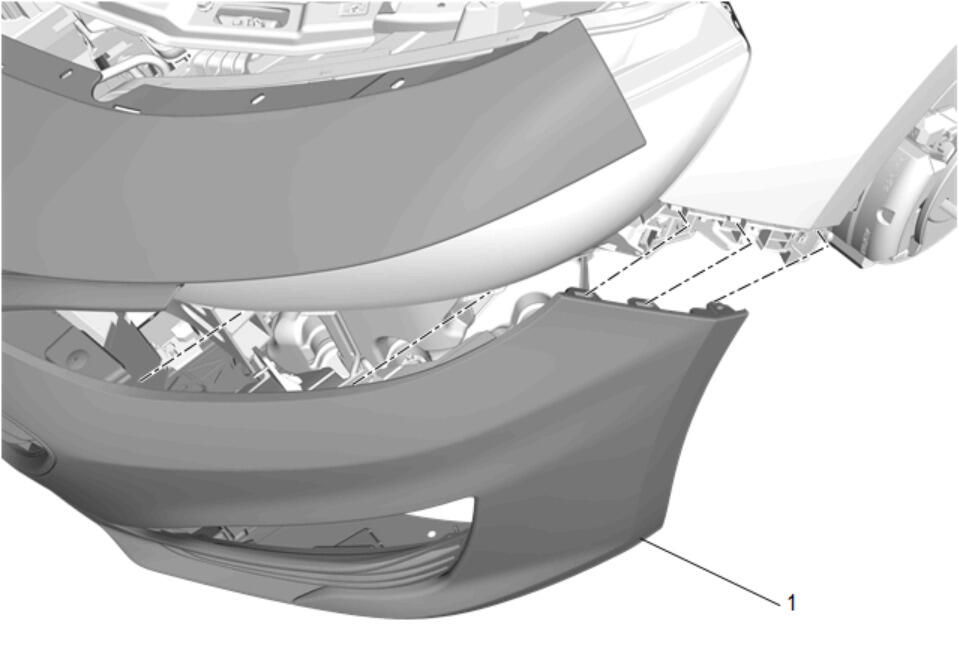

  3. GM5107621Courtesy of GENERAL MOTORS COMPANY

    Secure the tabs on the fascia (1) to the front bumper fascia guide.

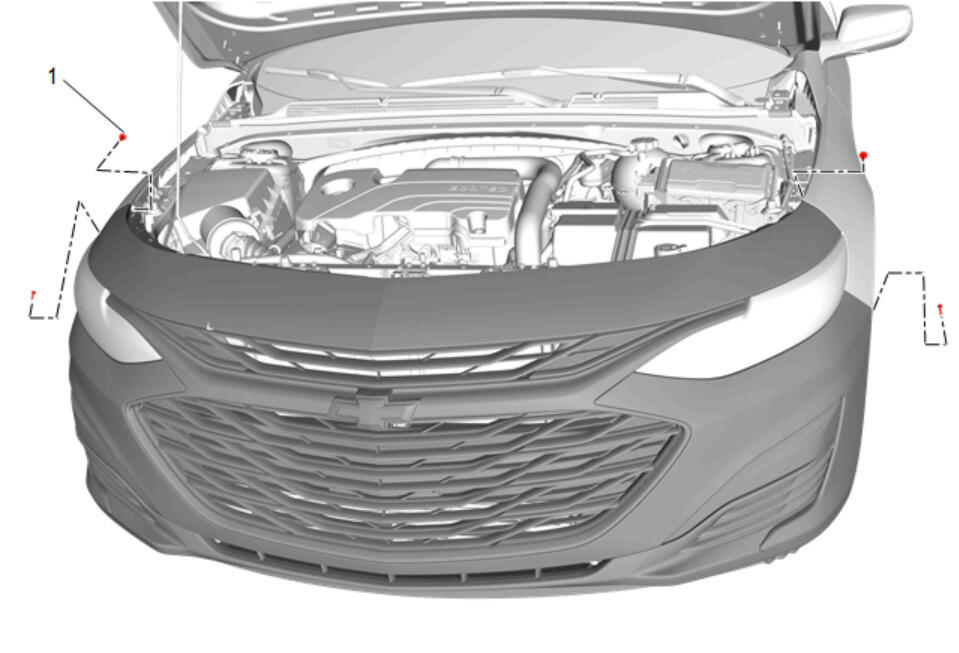

  4. GM5107620Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Bumper Fascia Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

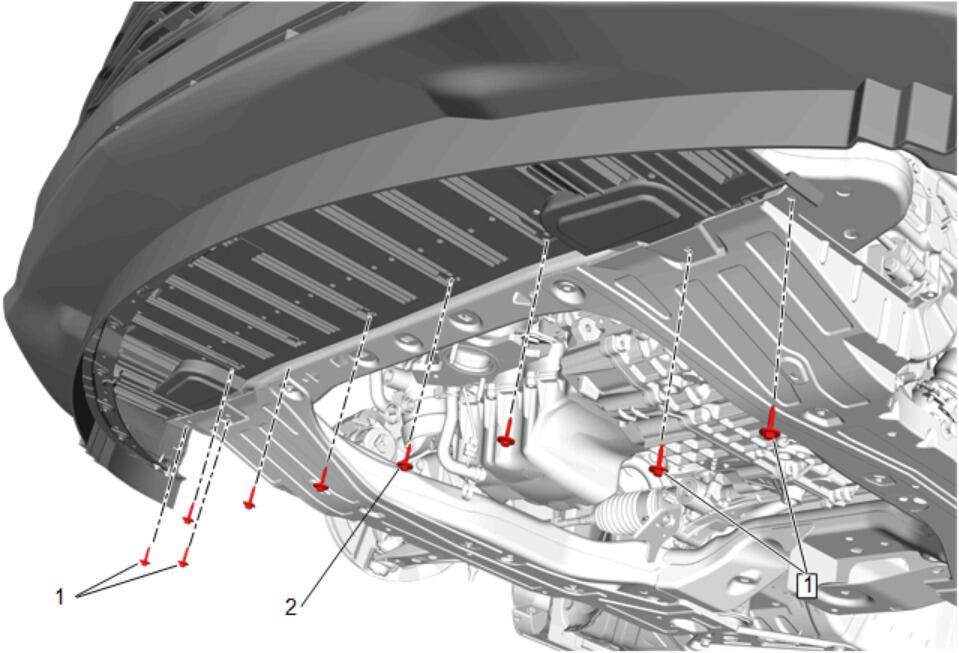

  5. GM5107619Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Bolt (2) - Install and tighten [5x] 2.5 N.m (22 lb in)

  6. Front Bumper Fascia Support Brace Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

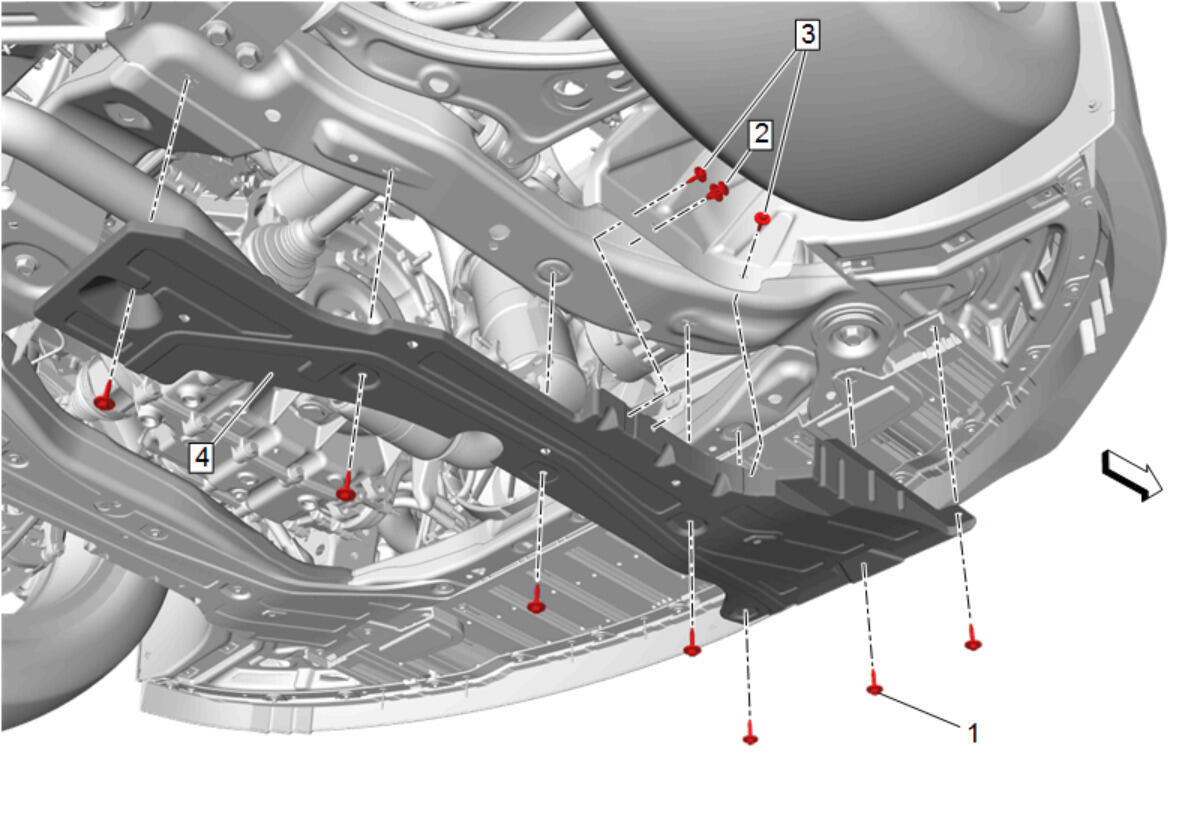

  7. GM5123745Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Splash Shield (2) - Install - Front Compartment Splash Shield Replacement

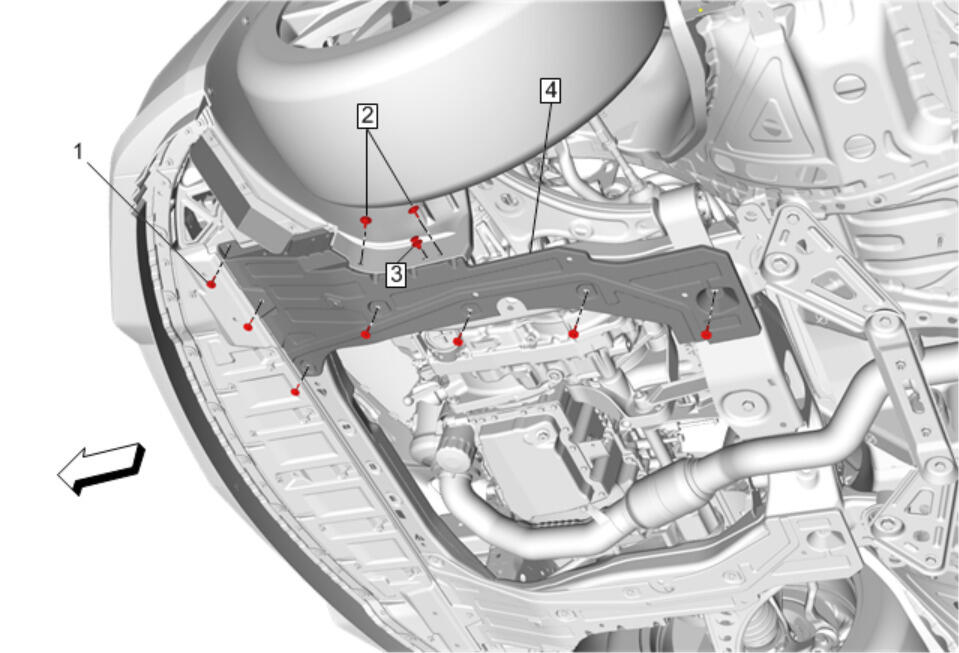

  8. GM4214230Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector (4) - Install - Front Compartment Air Deflector Replacement

  9. Install the left side front wheelhouse liner bolts. Front Wheelhouse Liner Replacement - Left Side
  10. Install the right side front wheelhouse liner bolts. Front Wheelhouse Liner Replacement - Right Side

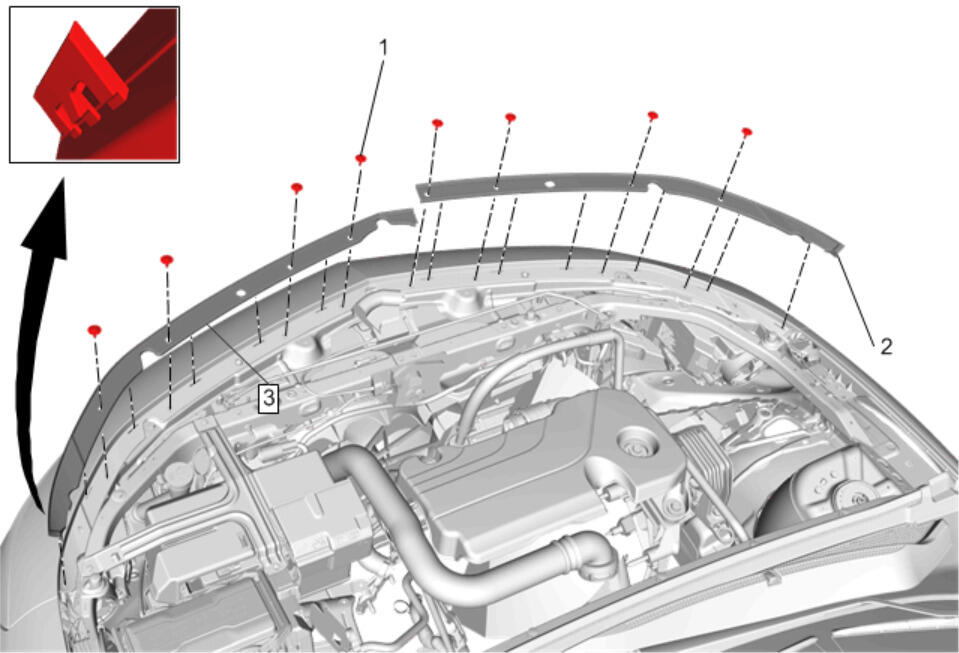

  11. GM4217291Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Upper Molding (2, 3) - Install - Front Bumper Fascia Upper Molding Replacement
