Installation Procedure

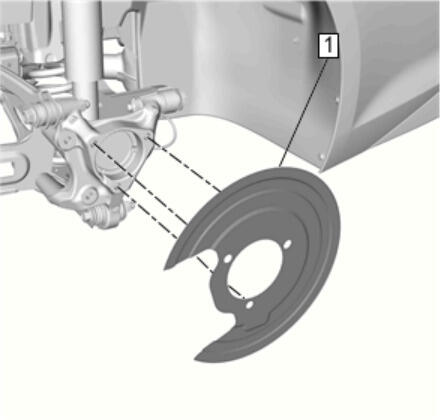

  1. GM4231273Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Shield (1) - Install

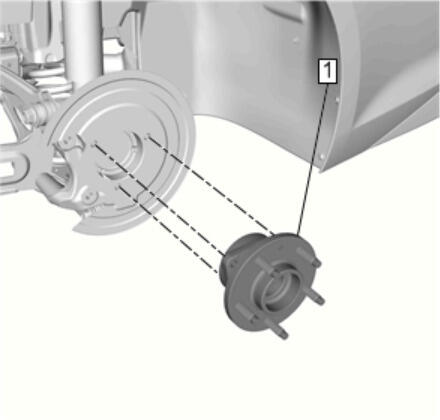

  2. GM4231269Courtesy of GENERAL MOTORS COMPANY

    Install the rear wheel bearing and hub assembly (1). Rear Wheel Bearing and Hub Replacement

  3. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
