Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

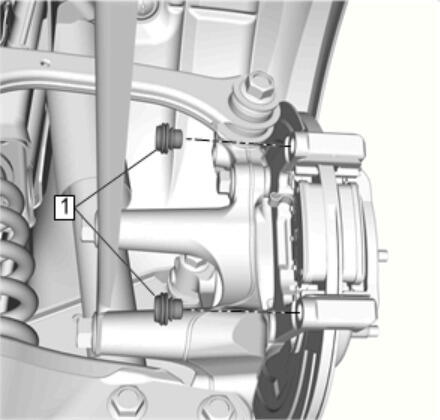

Caliper Guide Pin Seal (1) - Install [2x]
Apply a thin coat of high-temperature silicone brake lubricant to the caliper guide pins.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The lower caliper guide pin is equipped with a bushing and must be installed in the same location.

Caliper Lower Guide Pin (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Caliper Upper Guide Pin (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Brake Caliper (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Caliper Guide Pin Bolt (1) - Install and tighten 40 N.m (30 lb ft) [2x]
Tire and Wheel Assembly - Install - Tire and Wheel Removal and Installation
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
